Function:

Automatic round bottle labeling machines have a wide range of applications in various industries, including food and beverage, pharmaceuticals, cosmetics, chemicals, and other related fields. They are suitable for labeling different sizes and shapes of round bottles, such as wine bottles, beverage bottles, cosmetic bottles, and pharmaceutical bottles.

The key selling points of automatic round bottle labeling machines include their high efficiency, accuracy, and flexibility. They can handle various types of labels, such as self-adhesive labels, transparent labels, and opaque labels. Additionally, some models can be customized to handle different bottle sizes and shapes, and can be adapted to different label widths and lengths.

Other features of automatic round bottle labeling machines include their user-friendly design, easy operation, and low maintenance requirements. They can greatly improve production efficiency, reduce labor costs, and minimize labeling errors, which can lead to increased productivity and profitability for businesses.

1. This machine be widely used in food, drinks, cosmetics and daily chemical industries, for round bottles / jars / cans / any cylinder products.

2. The machine is made of anticorrosive stainless steel with convenient cleaning and disinfection, meeting national regulations and requirements for food machinery and food sanitation.

3. The machine adopts imported optical fiber infrared sensor, which provides accurate position control. It adopts imported PLC and 7" touch screen human-machine interface with parameterized production control and simple operation.

4. It is equipped with height adjusting handwheel, which makes it convenient to adjust the height of the labeling head to meet the needs of products of different diameters.

5. It adopts automatic bottle feeding hopper without the need of manually putting the bottles one by one, realizing simple and quick operation.

Technical parameter:

Model	VK-VRL
Label width(height)	10-180mm
Label length	20-350mm
Capacity	20 - 120 bottles/min
Conveyor speed	0-30m/min
Labeling accuracy	±0.8mm
Bottle diameter	Below 120mm
Power supply	700W, 110V/220V, 50/60Hz, 1 phase (customized)
Label reel Inner diameter	76mm or 40mm
Label reel outer diameter	Max 380mm

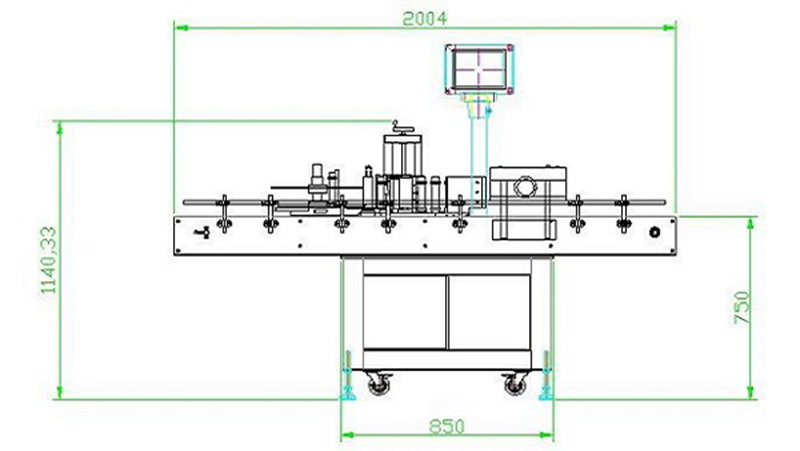

Machine size	L2000 * W800 * H1750 mm
Machine net weight	250KG
Date printer	Optional
Transparent sensor	Optional

1) Control system: Use Japanese Mitsubishi brand PLC control system, with high stable operation and extremely low failure rate.

2) Operation system: Use WEINVIEW (Taiwan) touch screen, making easy operation and excellent looking

3) Check system: Use FOTEK(Taiwan) check label sensor, Automatic detection label, stable and convenient

4) Send label system: German Avery labeling engine control system, stable with high speed.

5) Alarm function: Labeling machine alarm and stop working when failure occurs(such as label spill and broken so on)

6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.

Speed: The fully automatic high-speed round bottle labeling machine can label up to 200 cans per minute, making it an ideal solution for high-volume production environments.

Accuracy: The machine uses advanced sensors and control systems to ensure that labels are applied accurately and consistently to each can, reducing the risk of errors and waste.

Versatility: The machine can handle cans of various sizes and shapes, making it suitable for labeling a wide range of beer cans, including aluminum cans.

Efficiency: The machine is fully automatic, requiring minimal intervention from operators, which reduces the labor cost and increases efficiency.

Ease of Use: The machine is equipped with a user-friendly interface that allows operators to set up and adjust the labeling process easily.

Durability: The machine is built to withstand the high-volume demands of production environments and is made from high-quality materials, ensuring long-term durability and reliability.

Application:

This machine is widely used in food, beverages, cosmetics and daily chemical industries, suitable for any round product, such as round bottle, jar, tin and so on.

Sauce and condiment products: labeling of round bottles of soy sauce, vinegar, cooking oil, salad dressing, and other sauce and condiment products.

Seasoning products: labeling of round bottles of salt, sugar, pepper, and other seasoning products.

Beverage products: labeling of round bottles of fruit juice, tea, and other beverage products.

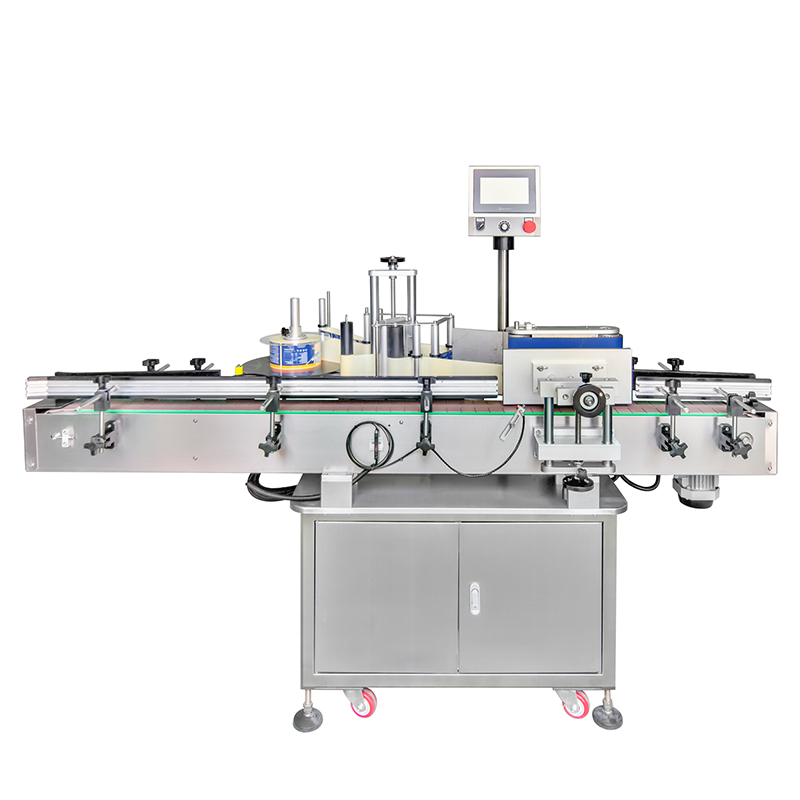

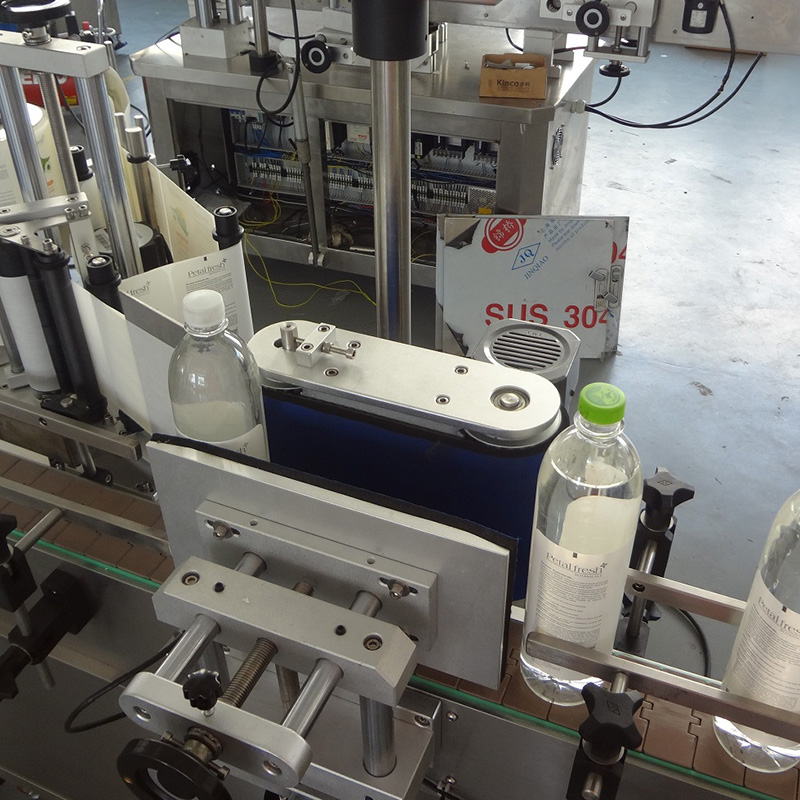

VK-VRL automatic labeling machine for glass jars follows a simple and efficient process to apply labels to the jars. First, the jars are loaded onto a conveyor belt that moves them through the labeling machine. As they move through the machine, sensors detect the jars' positions and trigger the labeling process.

The labeling machine uses a high-quality labeling system that applies the labels accurately and securely to the jars. The labels are fed into the machine from a roll and are applied to the jars using adhesive. The machine is designed to handle labels of various shapes and sizes, ensuring that the labels are applied correctly regardless of the jar's dimensions.

The labeling process is fully automated, so operators do not need to intervene once the machine is set up. The machine is equipped with a user-friendly interface that allows operators to set up and adjust the labeling process easily. The interface also provides real-time feedback on the labeling process, allowing operators to monitor the machine's performance and make adjustments as necessary.

Overall, the fully automatic labeling machine for glass jars is a highly efficient and accurate way to label jars. Its automated process and advanced labeling system ensure that jars are labeled quickly, accurately, and securely, making it an ideal solution for businesses looking to increase efficiency and productivity in their labeling process.

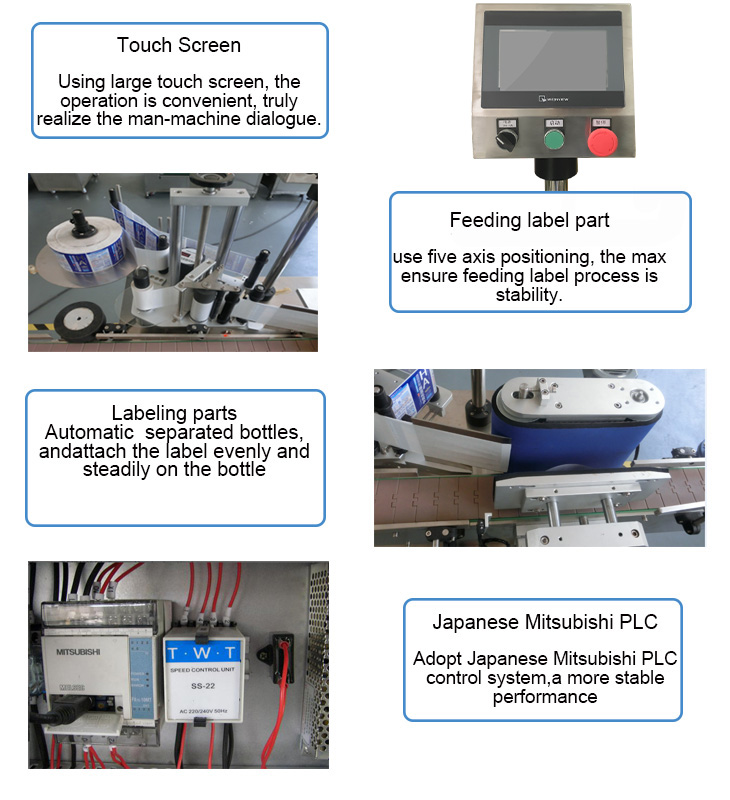

Touch screen

Siemens touch screen, powerful, color touch screen control, Chinese and English optional operating interface, convenient and intuitive, powerful data memory function, can store multiple groups of labeling parameters, with production counting function,power saving function. Production number setting prompt function, parameter setting protection function, convenient production management, different product labeling switch one key to achieve, without repeated debugging, simple and fast; And has the perfect fault prompt and the help function.

Ribbon Printer

It can be equipped with ribbon printer machine, which can print production date and batch number on line, reduce the packaging process of bottle and improve production efficiency.

PLC control system

Adopt Japanese Mitsubishi PLC control system, a more stable performance, Keep the machine safe and running steadily.

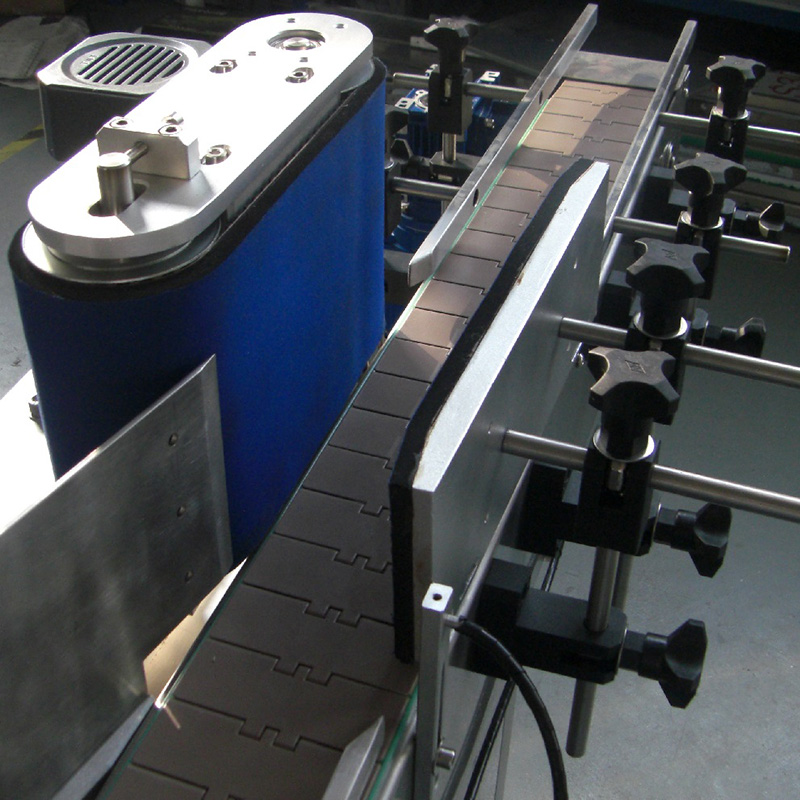

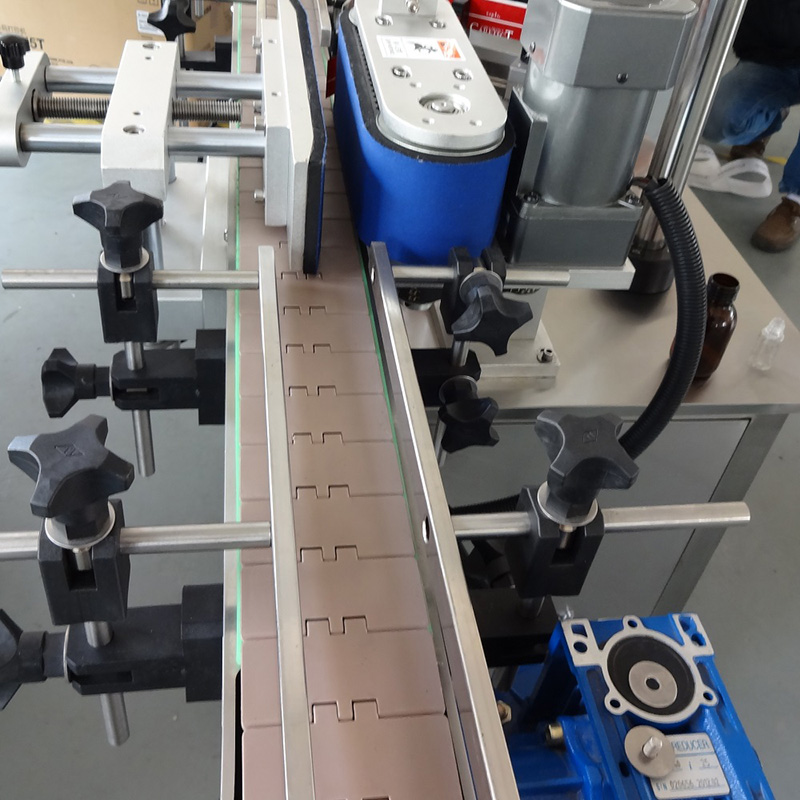

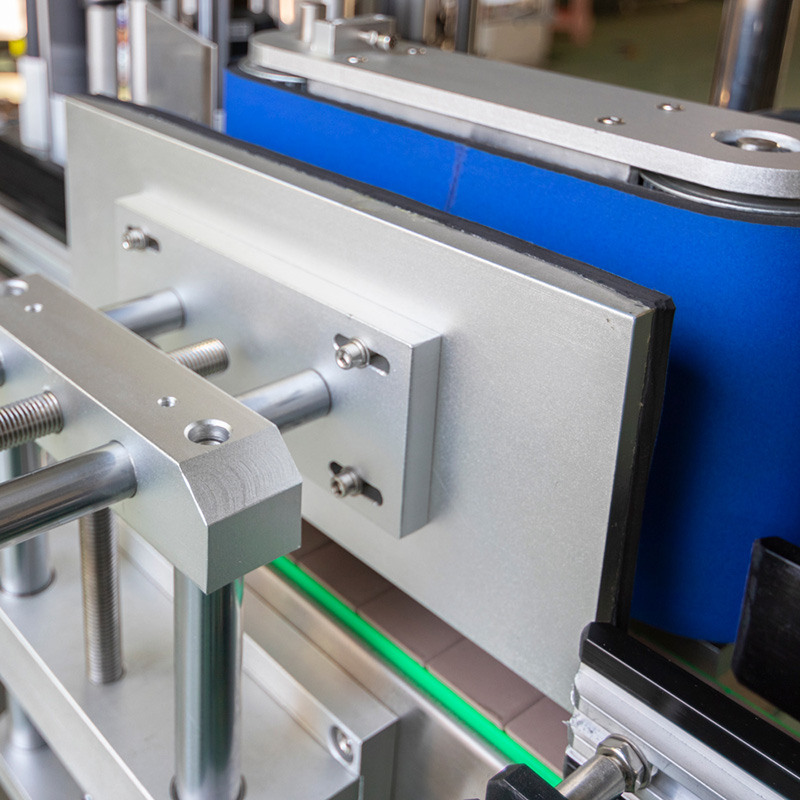

Wrap around labeling device

Automatically detect the bottle, separate the bottle and stick label on bottle, suitable for more different size bottle and label.

Bottle Dispersing

The application is flexible, the bottle standing type labeling machine is provided with an automatic bottle separating function, can be produced in a single machine, and also can be connected with the production line.

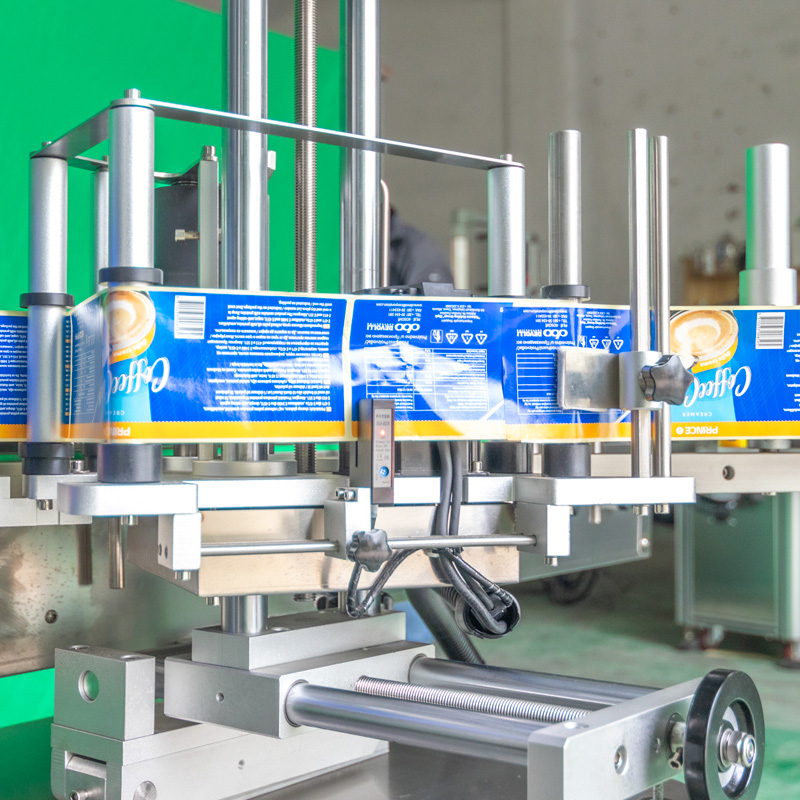

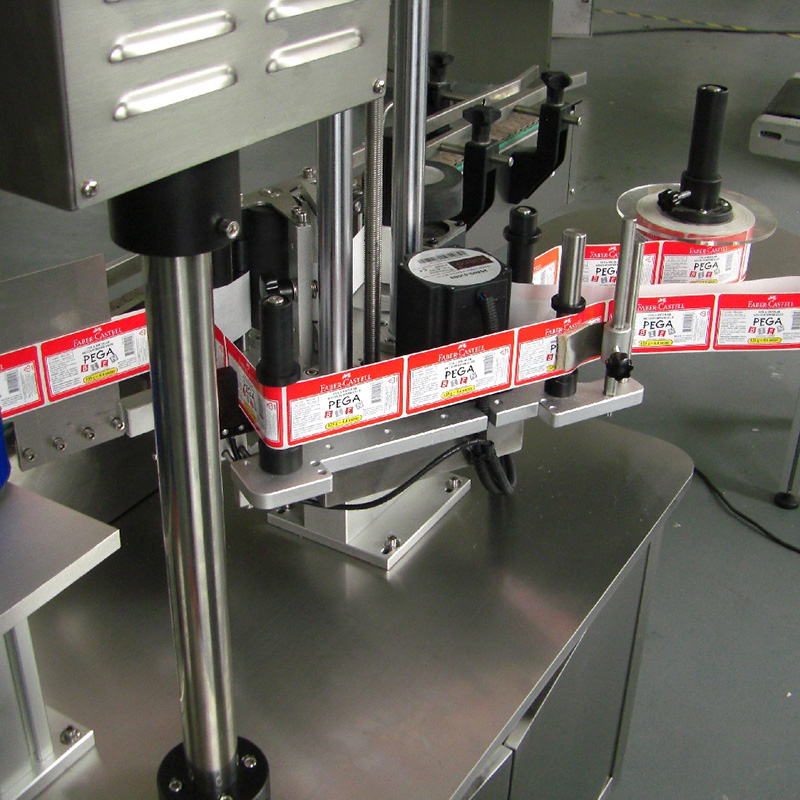

High quality labeling head

1. It can be adjusted automatically according to the label height.
2. Label and feeding label roller nearly 2/3 of the contact area, great avoid label and the roller sliding, improve accuracy of feeding label.
