Function:

1, For automatic labeling on round bottles/jars/cans for the pharmaceuticals, daily chemicals, food & beverages industries.

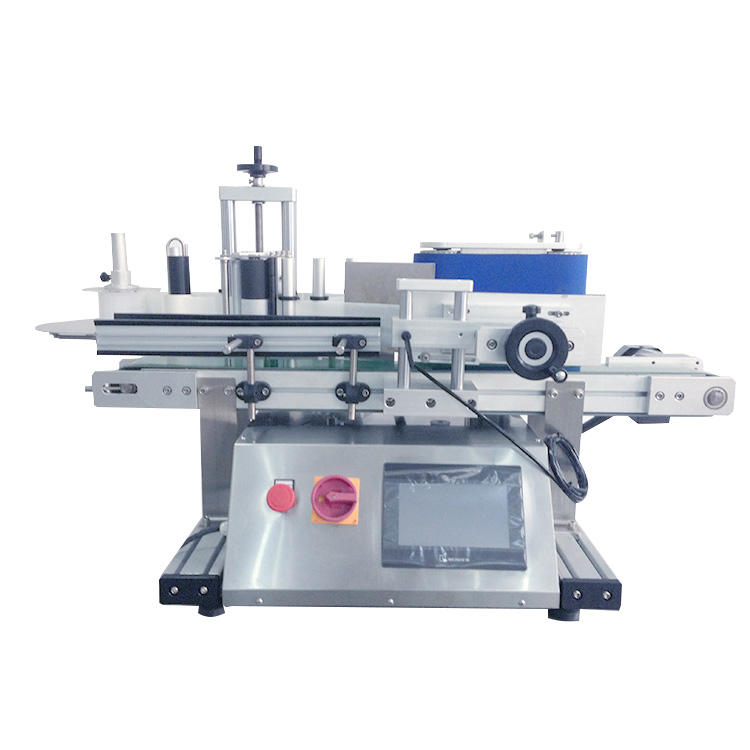

2, The machine is smart desk top type, using it alone or selective assembly two small turntable for feeding and collecting bottle.

3, English language HMI oerpation page, with 10 sets parameter save for different kind bottle, easy to operate.

4, Machine conveyor can suitable for different size bottles, and big labeling head sutiable different size labels, Max.label height 180mm.

5, Labeler will automatically detects the label size and bottle diameter and set the appropriate labeling parameters, a very useful feature for users with multiple products to label.

6, It is an optimal combination of speed, accuracy, stability, GMP standards, ease of use, and flexibility.

7, Backed by a strong engineering team who is ready to provide custom solutions for the unique production needs of different customers.

Technical parameter:

Model	VK-TL
Capacity (PCS/min)	0-100（depend on bottle and label size）
Conveyor running side	from left to right / from right to left
Conveyor speed(meter/min)	≤25M/MIN
Labeling error	＜ ±0.8mm
The inner diameter of label roll	76 mm
The outer diameter of label roll	360 mm(max)
Suitable for label size	W:5-300mm, L:10-500mm
Suitable size of labeling objects	any size
Power supply（In China）	AC220V 50/60HZ single phase （customized）
Power	1300W
Weight	100 KG

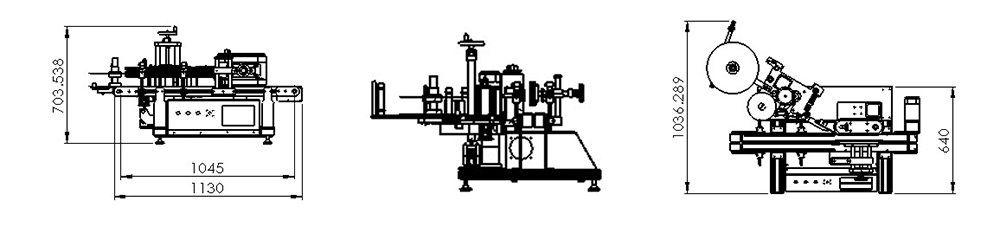

Machine size	1100（L） 700 (W) 650 (H) mm

1, This kind labeling machine is suitable for any round or cylinder bottles of bottle of wine, medicine, drinking, chemicals, agrochemical etc, its features simple structure and operation, attaching accuracy, reliable property, small power and no noise.

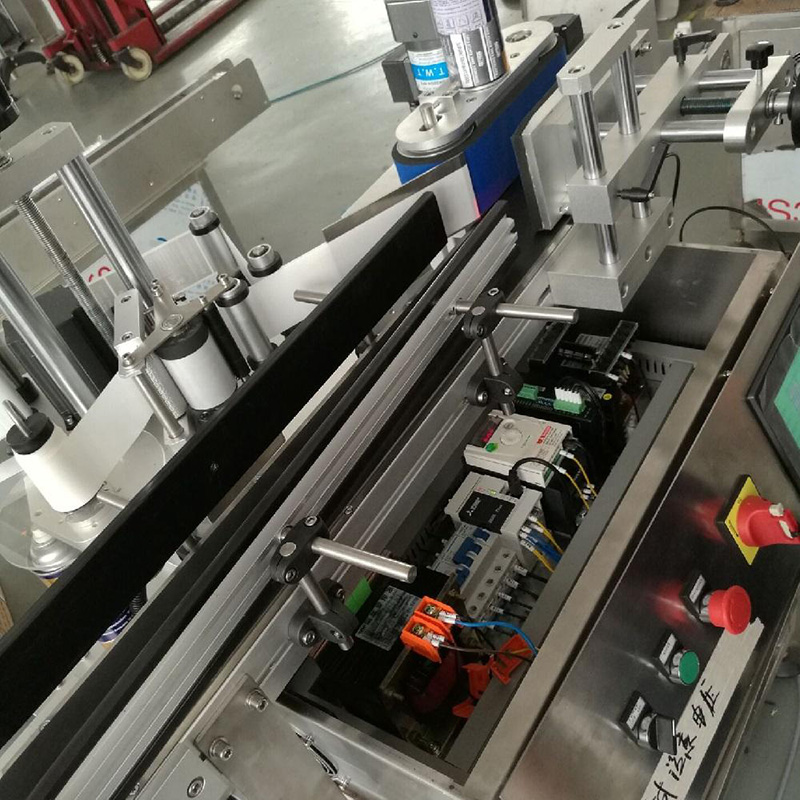

2, The whole machine adopts mature PLC control system to ensure the stable running in high speed; Designed in English touch screen control panel, the visual parameter makes it easier to test and adjust the machine.

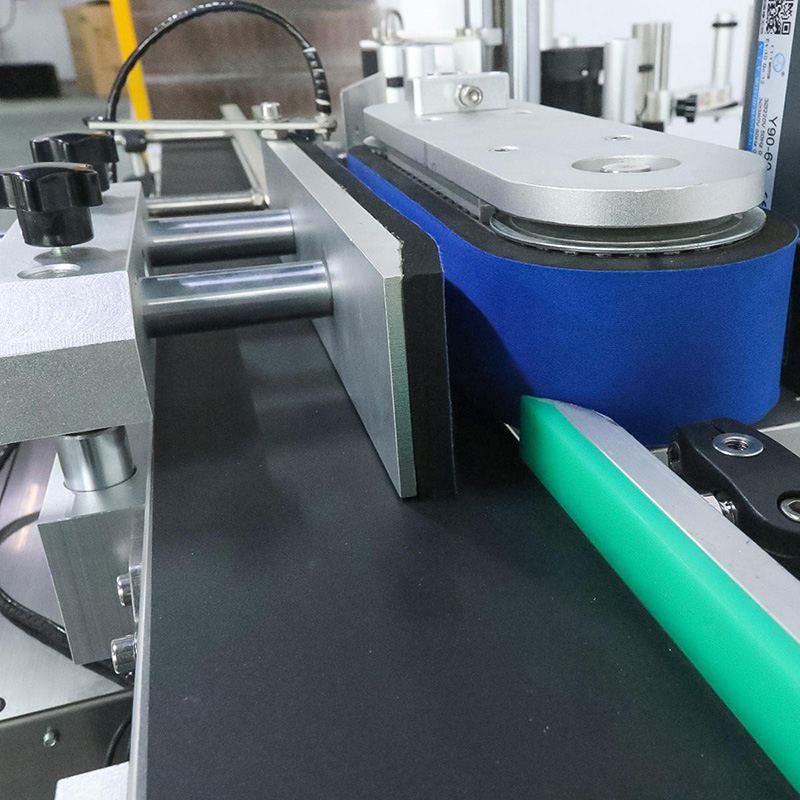

3, Labeling is performed smoothly with no creases with the use of elastic cotton idler wheel. High quality conveyor belt, the size of it is 1310*100mm(L*W), it can help to transfer bottles during working, improves working efficiency.The working speed of the conveyor can be adjusted according to production needs

4, With label sensor and adjusting components,these ensure the sensitivity and accuracy, prevent from missing or wasting label stickers, improve labeling quality.

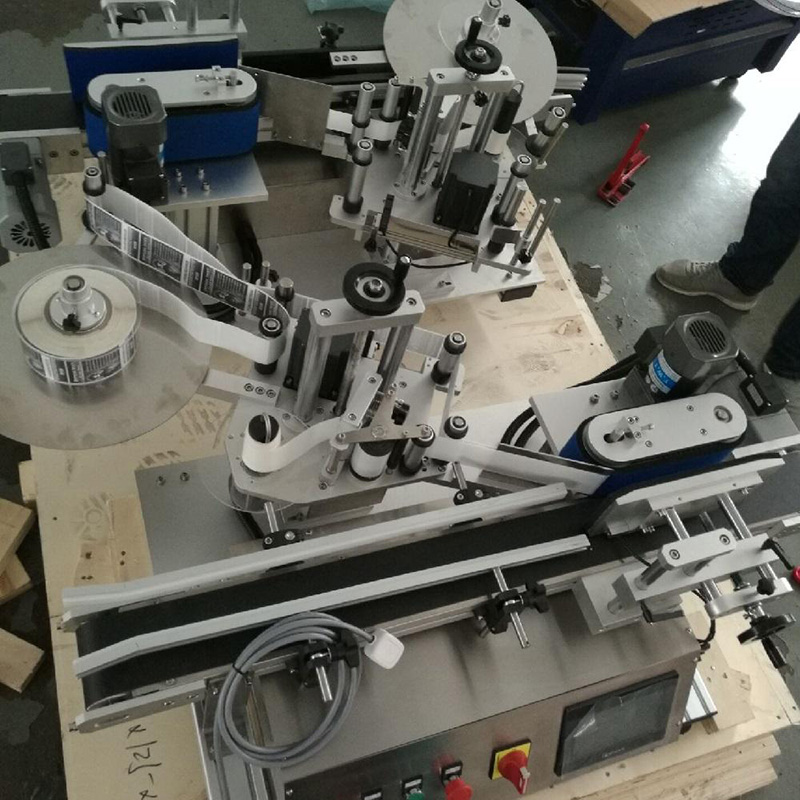

5. Rotary knobs can be used to controlled the position of the labeling wheel, label separating blade and winding bar, ensure the labeling accuracy and improve labeling quality.

6. The machine can connect with bottle feeding turntable and bottle collecting turntable using. it is a table top smart machine.

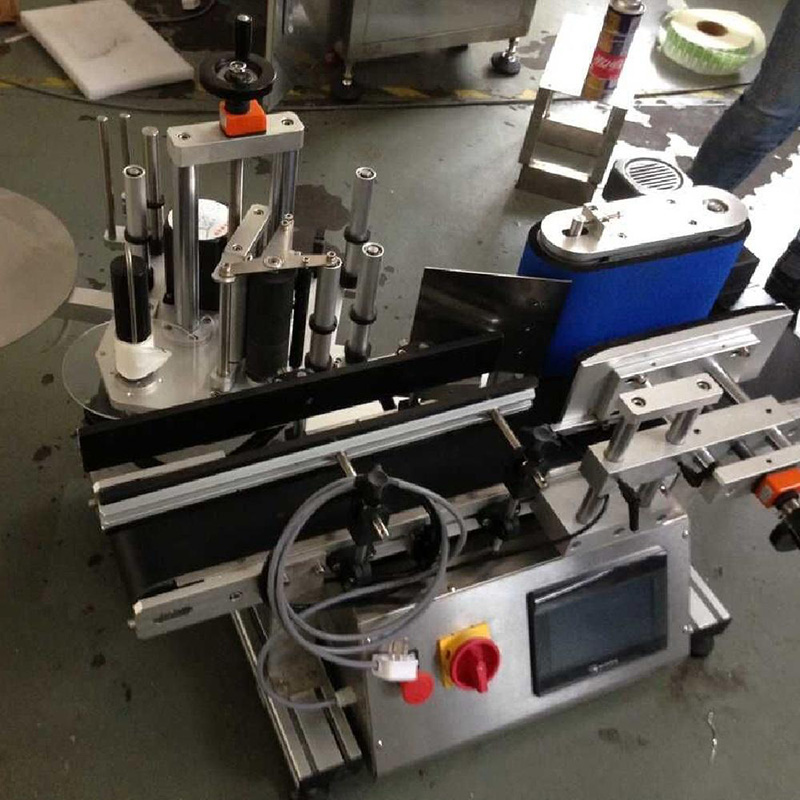

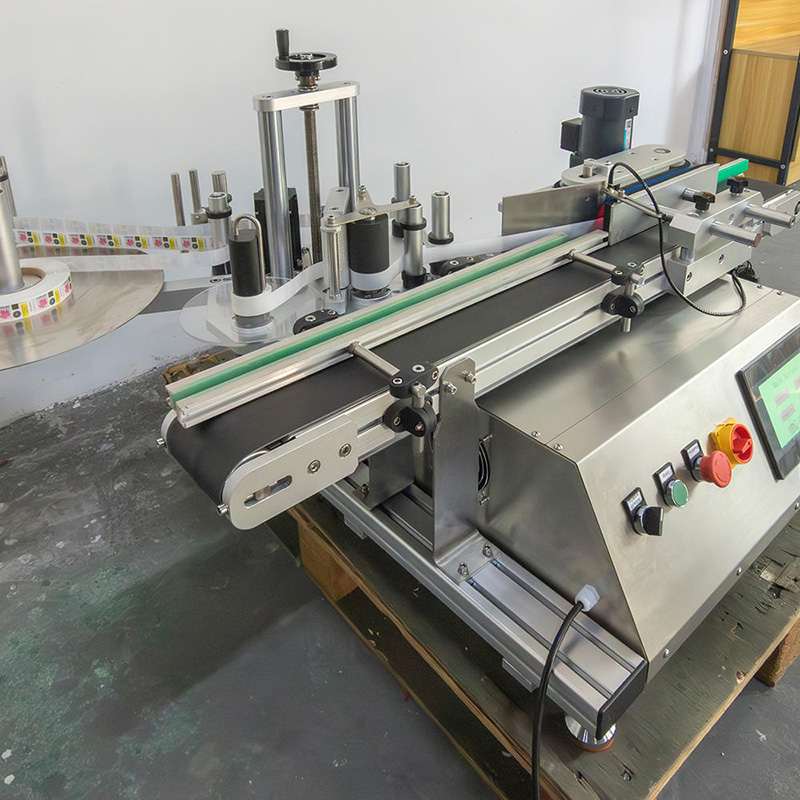

1, Light weight & Humanized Design: Small enough to sit on a desk comparing to the normal automatic labelling machine which is giant and uneasy to move around.

2, Automatic Photoelectric Sensor: Smart controll for labelling and bottle decteting, it has automatic label calibration and detection to avoid any waste of labels.

3, Additionally, it can attach to bottle organizing machine to add bottle feeding and retracting functions. and date coder printer, and tansparent sensor.

4, Automatic Bottle Feeding: Seperates bottles automatically to improve stablity by eliminating the small size difference between each bottles.

5, Stainless Steel Body: Elegant appearance, non-deformation, high quality 304SS material that meets GMP standard, providing the best using experience.

6, Automatic Batch Process: Easy to operate and maintian, lowering labor cost and improving efficiency.

7, Multiple Functions: Automatic counting and stopping to save electricity, automatic save settings etc.

8, Best Imported Component: Carefully picking the best component to build the machine, ensures high quality and long service life.

9, High Labelling Stablity: Labelling is straight and flat, no bubbles or creases.

10, Touch Screen Controll: Easy to controll and switch different settings, it features a user interface with guides.

Application:

The desktop automatic round bottle labeling machine has wide applications in the food and beverage industry for labeling various types of round bottles, such as beverage bottles, sauce bottles, and other food packaging bottles. This machine can accurately and efficiently apply labels onto bottles, including product names, ingredients, nutritional information, production dates, and barcodes. With the increasing demand for personalized and customized labeling in the food and beverage industry, the desktop automatic round bottle labeling machine can provide a flexible and cost-effective solution for small and medium-sized businesses. It can greatly improve production efficiency, reduce labeling errors, and enhance product branding.

Food industry: Suitable for small food manufacturers to label round bottle food products, such as soy sauce, vinegar, beverages, etc.

Cosmetics industry: Suitable for small cosmetic manufacturers to label round bottle cosmetic products, such as shampoo, shower gel, lotion, etc.

Pharmaceutical industry: Suitable for small pharmaceutical manufacturers to label round bottle pharmaceutical products.

Daily chemical industry: Suitable for small daily chemical manufacturers to label round bottle products, such as laundry detergent, dishwashing liquid, hand sanitizer, etc.

Wine and beverage industry: Suitable for small wine and beverage manufacturers to label round bottle products.

In summary, a small tabletop semi-automatic round bottle labeling machine is a labeling equipment suitable for small-scale production and individual crafts manufacturing. It has advantages such as small size, fast labeling speed, high accuracy, and is suitable for labeling various round bottle products.

• Small size, occupying a small area, easy to move and operate.
• Fast labeling speed, which can greatly improve production efficiency.
• Can adapt to labeling different diameters and heights of round bottles.
• High accuracy, able to achieve precise label labeling.
• Simple operation, easy to learn and master.
