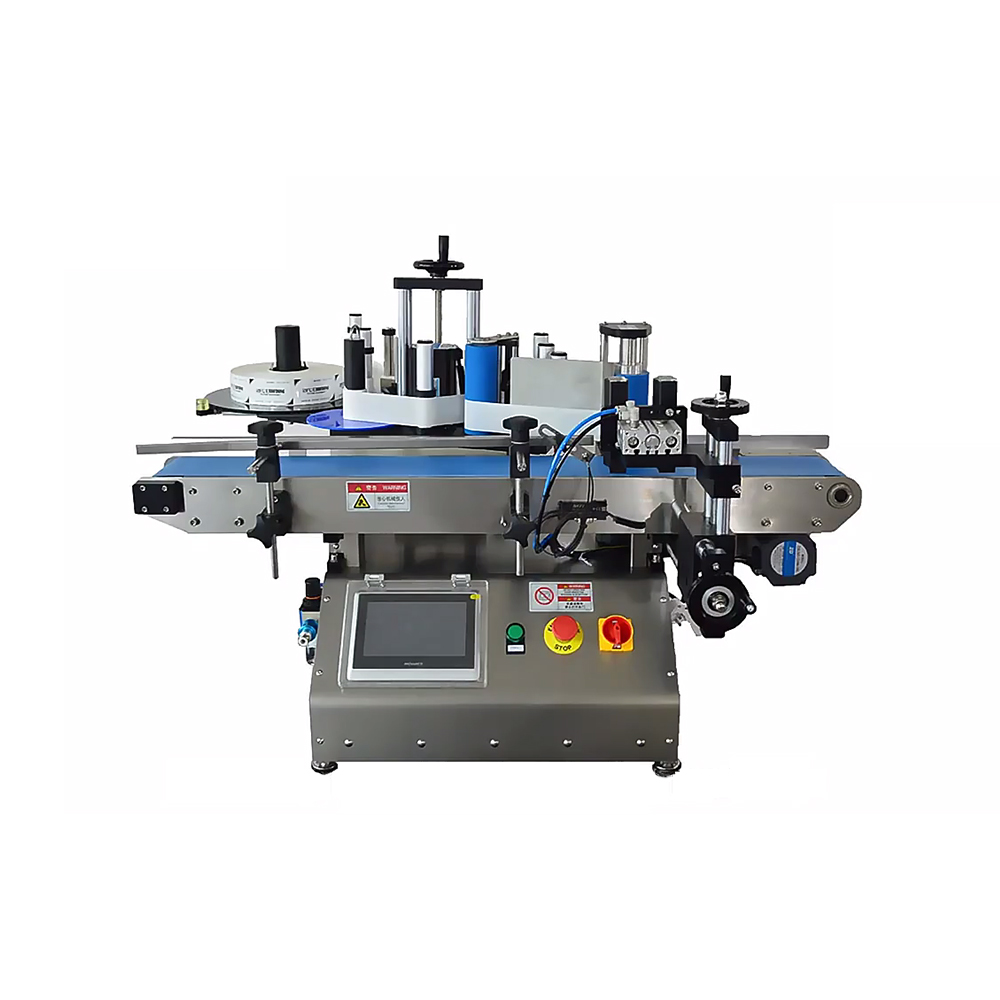

This round bottle labeling machine can be used for wrap around or double side labeling.The desktop type labeling machine can save working space, but it can work automatically and accurately after you adjust and test working data.It is widely used to label round bottles like wine.

Function:

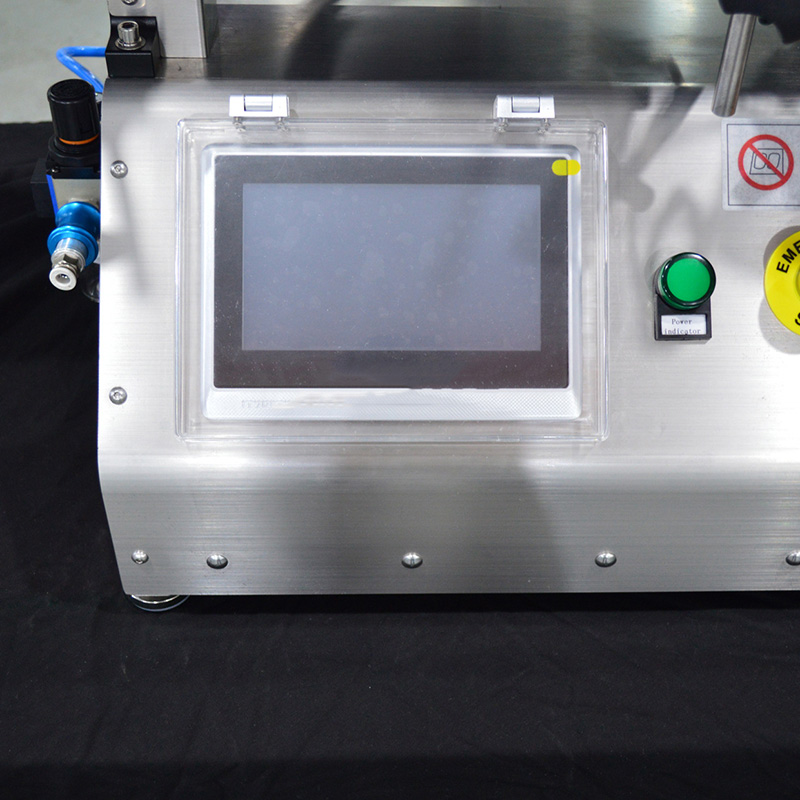

1. Intelligent operation panel can help you control the machine easily. It can be set into English version, the working data like counting functions, delay time can be controlled by this panel. Beside two black rotary knobs can be used to control working speed.

2. The feeding inlet can be adjusted according to bottle diameter. This machine is suitable for φ≤100mm bottles. The working speed of the conveyor can be adjusted as operators’ need. This help to improve working efficiency.

3. The electric eye can detect bottles once they pass through. The sensitivity regulator is designed to adjust the sensitivity of the electric eyes, prevent from missing bottles.

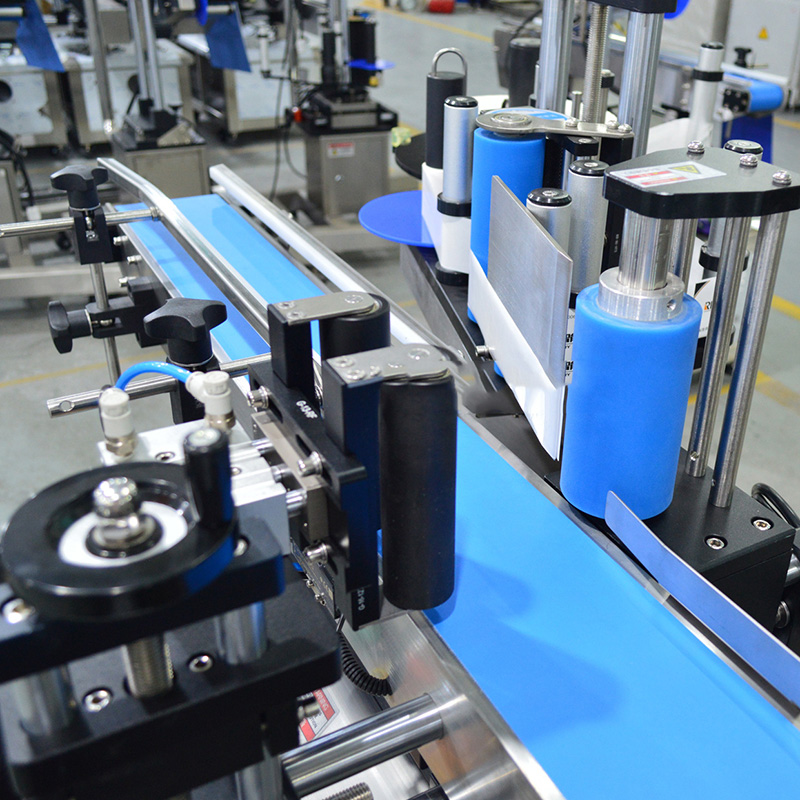

4. These three roller labeling wheels make bottles rotating and then finish labeling, ensure that there is no bubbles under labels. Ensure the labeling effect. This is suitable for double side labeling.

5. High quality motor, make the machine work stably and can work for a long time.

Technical parameter:

Model	VK-TL-RP
Labeling Accuracy	±1mm
Labeling Speed	20-40pcs/min
Length	25-300mm
Height	15-200mm
Power Supply	220V/50HZ
Weight	90KG
Machine Size(LxWxH)	1200*650*560mm
Type	Manufacture, Factory, Suppier
Packaging	Wooden box

This Desktop round bottle labeling machine is suitable for taper and round bottle, bucket, can labeling.

Simple operation, large production, machines take up very little space, can be easily moved and carry at any time.

Operation, just tap automatic mode on the touch screen, and then put the products on the conveyor one by one, labeling will be completed.

Can be fixed to labeling the label in a specific position of the bottle, can achieve full coverage of the product labeling, also can be achieve product front and back labeling and double label labeling function.

Widely used in packaging, food, beverage, daily chemical, medicine, cosmetics and other industries.

Application:

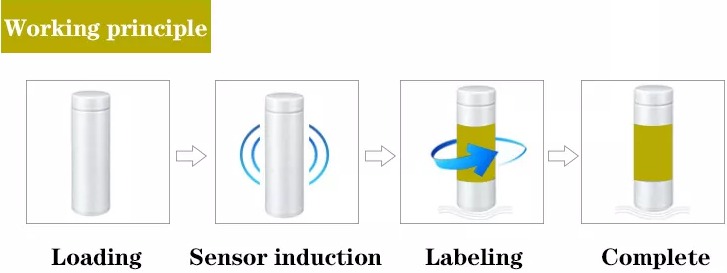

How Tabletop Labeling Machine Works

The working process of this tabletop labeling machine like this:

Place container →separate container→ conveyor→ product detection→ Label recovering→ Collect container.

1. Place product on the transportation belt of tabletop automatic labeling machine.

2. Container separating mechanism separates the containers in certain distance.

3. Under the dragging of the transportation belt, the container runs to the right side of the labeling mechanism automatically.

4. Container comes to the detected position and be detected by the electrical sensor which will feedback signals to PLC.

5. Traction motor rotates, sends out and pastes label on the product.

6. Labeling recovering mechanism twists and rolls label on the container.

7. Containers are transported and collected in the collecting container.
