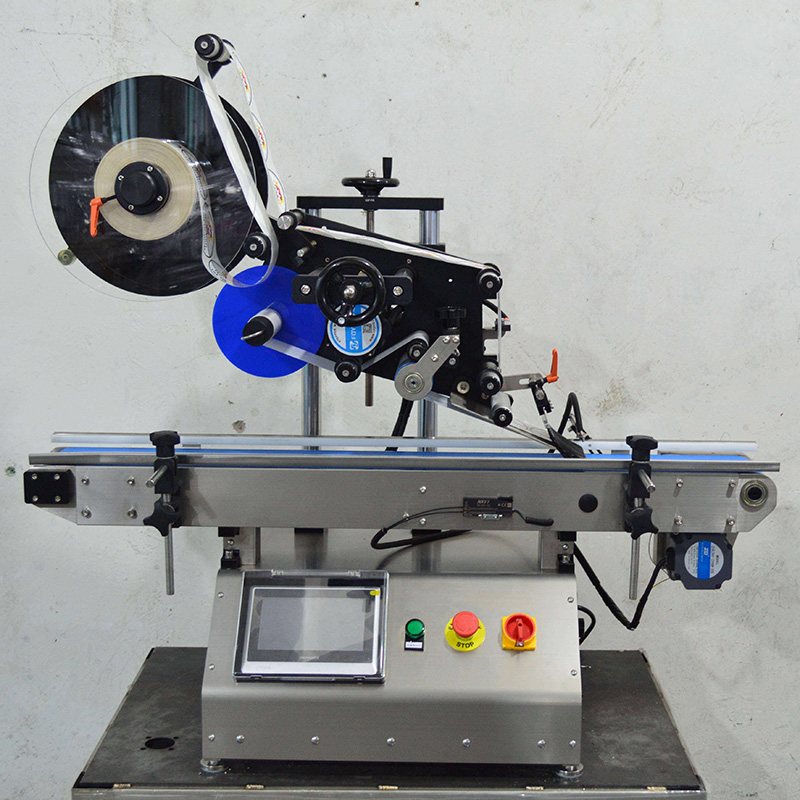

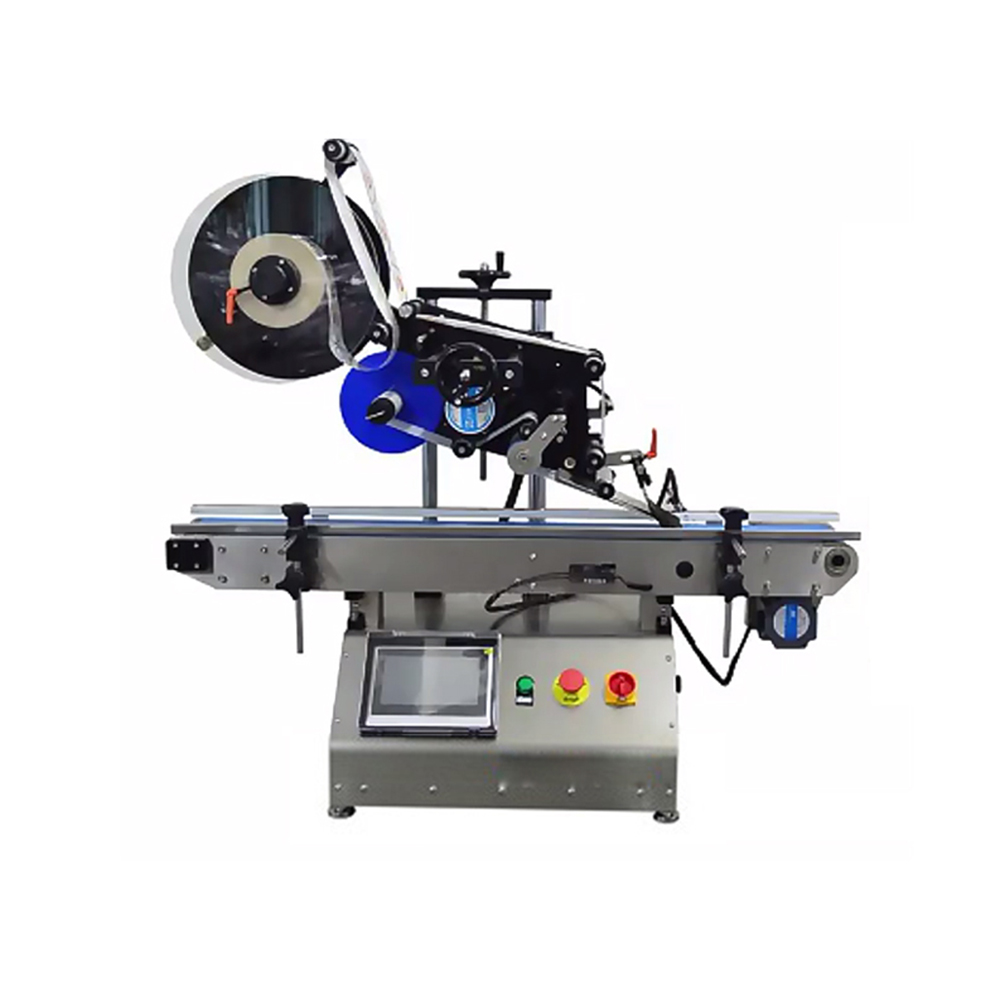

VK-TL-FT Desktop Automatic Flat Labeling Machine
This automatic bottle labeling machine is with a conveyor and it has similar functions like the full automatic labeling machine.It is with a reasonable design and the dimension is not that large as the full automatic labeling machine.It is the ideal choice for most of suppliers.
The automatic flat label applicator is suitable for labeling or self-adhesive film on the upper surface of various items, such as books, folders, boxes, cartons, etc. The replacement of the labeling mechanism is suitable for labeling on uneven surfaces, and is widely used in large flat labeling of individual products, labeling of flat objects with a wide range of specifications.
Output Speed: 20-40 pieces/minute depends on label and bottle size
Dimension: 1200*650*560mm
Operation process of this flat label applicator: put products (can be connected to the assembly line) -> product delivery (automatically) -> product detection (automatically) -> labeling (automatically) -> collect labeled products.
Function:

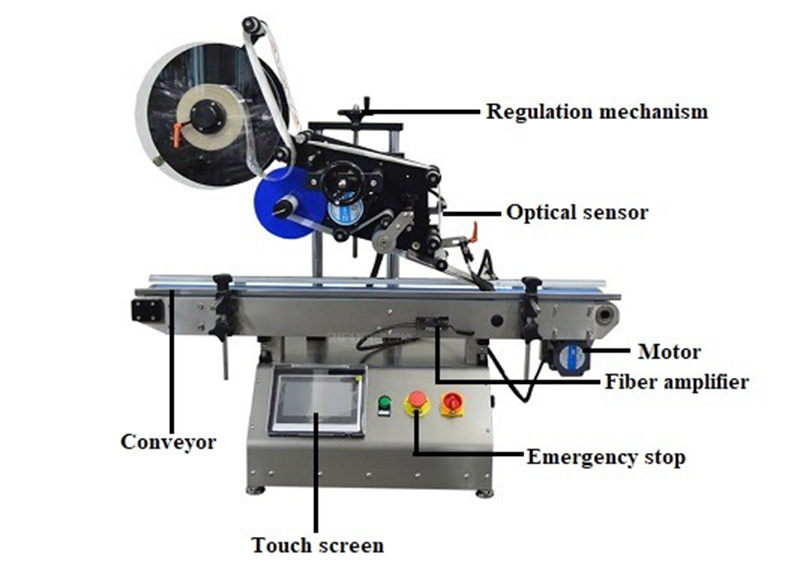

1. The English operation panel make it easy to test and use the machine,the label separating speed is adjustable. And can set the delay time of label separating.The beside two knobs can control the labeling speed and conveyor speed as your need.
2. The conveyor width can be adjusted according to the bottle diameter.It is better to be smaller than 120mm Dia.
3. Automatic fiber amplifier, automatic induction product labeling, simple and intelligent operation.
4. Speed-regulating motor, good stability, no slip loss, stable running at high roads, reliable use and convenient maintenance.
5. Made of high-quality stainless steel, the whole machine is beautiful and elegant, with long service life.
Technical parameter:
| Model | VK-TL-FT |
| Labeling Speed | 20-40pcs/min(depends on material size) |
| Labeling accuracy | ±1mm |
| Suitable labeling Size | ≤150mm(W) |
| Roll inside diameter(mm) | Φ75mm |
| Roll outside diameter(mm) | Φ250mm |
| Suitable product size | 0-300mm*0-350mm(W*H) |
| Machine size | 1200*650*560mm |
| Machine weight | 90kg |
Automatic flat label applicator is a tabletop type labeling machine for flat objects labeling, like flat bottles, flat boxes, even envelopes.
It is also widely used for some bottle tops label stickers which the cap of the bottle is flat.
This applicator can be suitable for different sizes of objects by adjusting the height and the width of the machine.
This benchtop type label applicator is an automatic flat surface labeling machine, after you adjust the parameters and the height and size of the conveyers for your products, it can automatically finish the labeling work. You just need to put the product on the conveyor.
The machine body adopts stainless steel and aluminum alloy parts, this makes the machine have good quality and a beautiful appearance.
Application:
Desktop flat labeling machine is a kind of automation equipment used for different kinds of boxes, cards and other objects on the plane labeling, its compact structure, small size, can be applied to a variety of different sizes of products, easy adjustment, good flexibility. It is also compatible with the top level labeling of flexible products, such as bread, sandwiches and other outer packaging labeling. It can be equipped with additional components such as a date printer structure. It has a very wide range of applications in food, daily chemical, pharmaceutical and other light industries.
Features:
Labeling accuracy can reach ±1mm, labeling surface is flat and aesthetically pleasing.
Good flexibility, easy adjustment can be applied to other sizes of products, can be quickly changed.
Can be equipped with a variety of labeling methods, such as pressure paste, blowing post, roll paste, etc., to meet the various production needs.
Wide range of application, can be applied to different materials, different sizes of boxes, square bottles, flat bottles and flexible objects on the plane labeling.
Easy to operate and maintain, equipped with a touch screen user interface, the overall mechanical structure is simple and stable, easy to maintain.
It can be used as a single machine or connected to a small production line.
