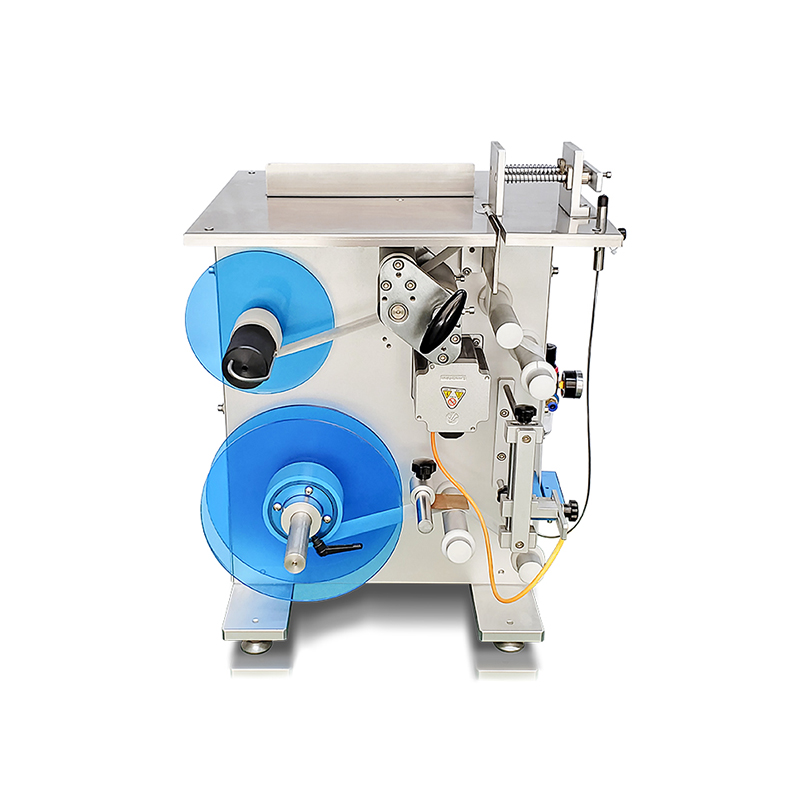

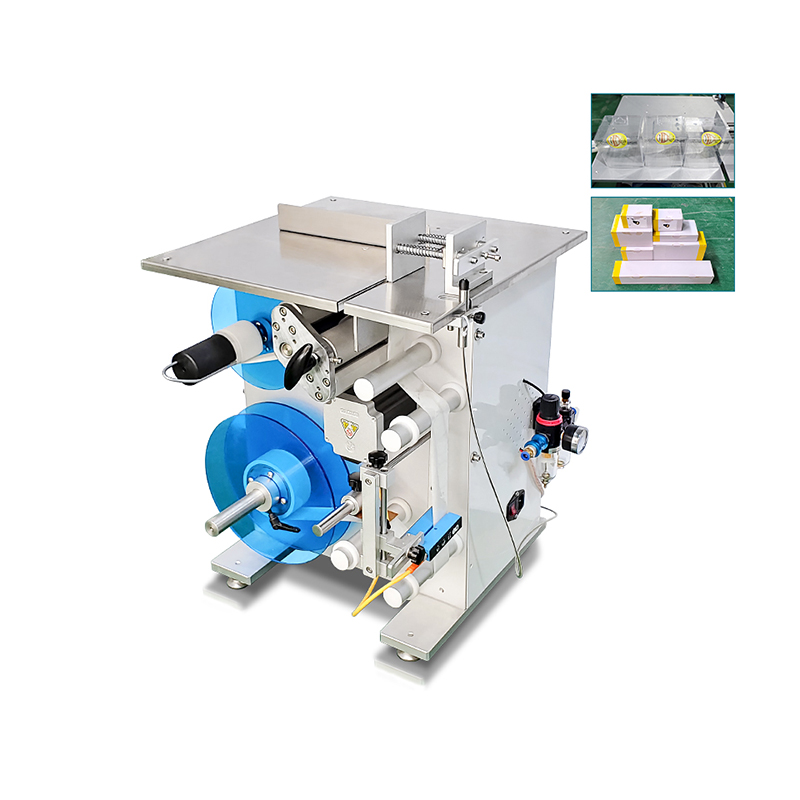

VK-T812 Semi Automatic Corner Wrap Label Applicator

VK-T812 Semi Automatic Corner Wrap Label Applicator Machine

The corner wrap applicator is the ideal labeling solution when a single label needs to be applied to adjacent panels. It efficiently applies labels without sacrificing quality. If you are looking for an economical corner wrap labeling machine, this VK-T812 is the right choice for you!

Multi-functional corner wrap labeling machine, dedicated to 90 degree corner labeling, in order to play the role of sealing, anti-counterfeiting, anti-demolition; Mainly used in cosmetics, electronic products, toys, gifts, drinks, beauty products and other packaging box anti-demolition label;

Output Speed: 15-20 pieces/minute

Dimension: 450mm*500mm*630mm

1. The semi-automatic corner labeling machine is suitable for affixing sealing labels on the sealing of color boxes such as electronic products, health care products. The tamper-evident labels and anti-counterfeiting labels have the same labeling form, and semi-automatic corner labeling machines can also be used.

2. When labeling, manually push the product to the end. Allowing for flexible movement and adjustment, and the operation is very simple.Using high-quality materials such as stainless steel and aluminum alloy.

3. According to the characteristics of semi-automatic models, it is recommended to use small batch products and products with more than 2 sealing labels on a color box.

Technical parameter:

Model	VK-T812
Labeling Accuracy	±0.5mm
Labeling Speed	15-20 pieces/min
Applicable for product diameter	Length: 100mm-300mm, width: 30mm-300mm
Applicable Label Size	Diameter: 20-60mm
Device Dimensions	450mm500mm630mm
Applicable Power Supply	220V/50HZ
Weight	50KG
Applicable Label Roll lnner Diameter	76mm
Applicable label Roll lnner Diameter	280mm

Application:

Application fields: daily chemical industry, beauty industry, electronics industry, wearable device industry, toy industry, beverage industry, e-commerce field, etc.

Applicable customers: small, medium and micro enterprises, family workshops and other types of small batch production customers.
