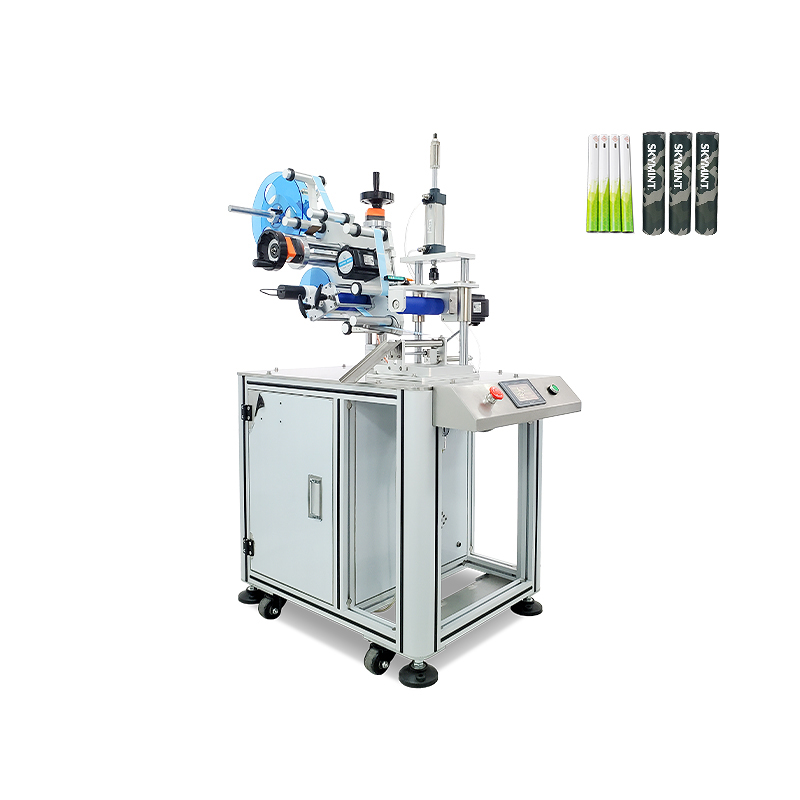

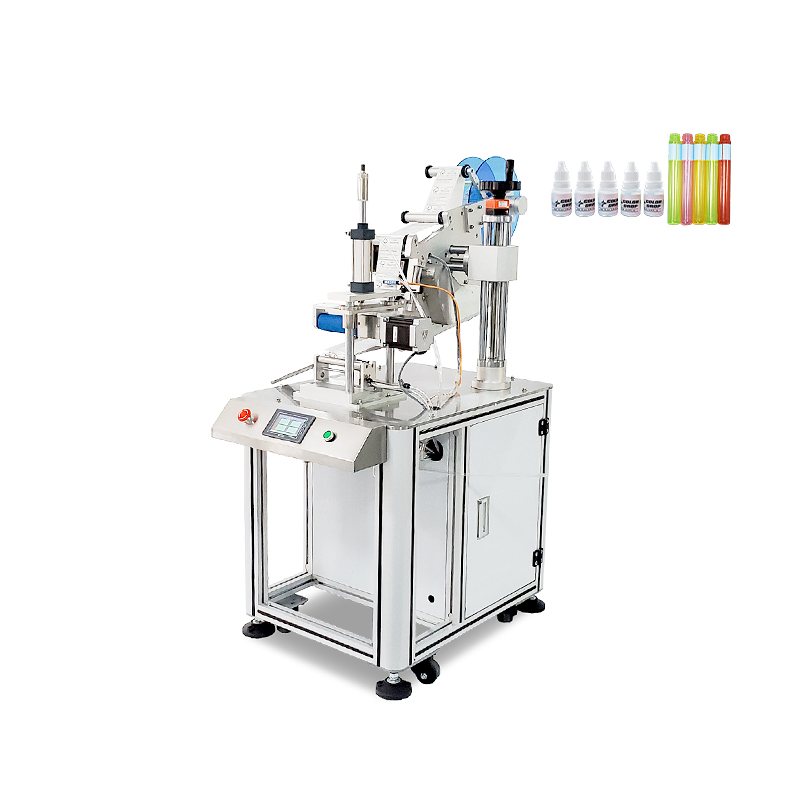

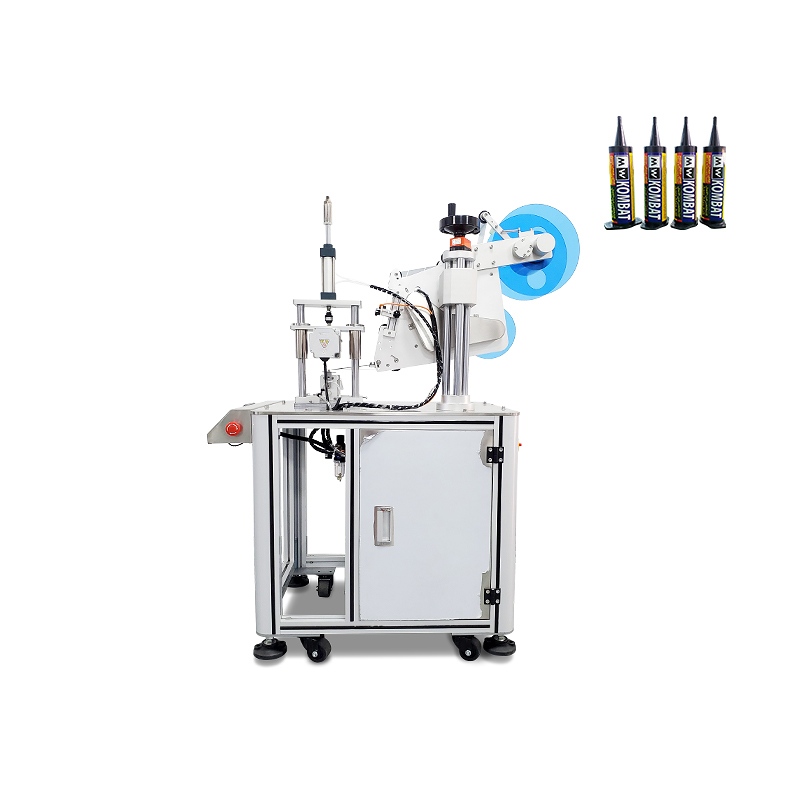

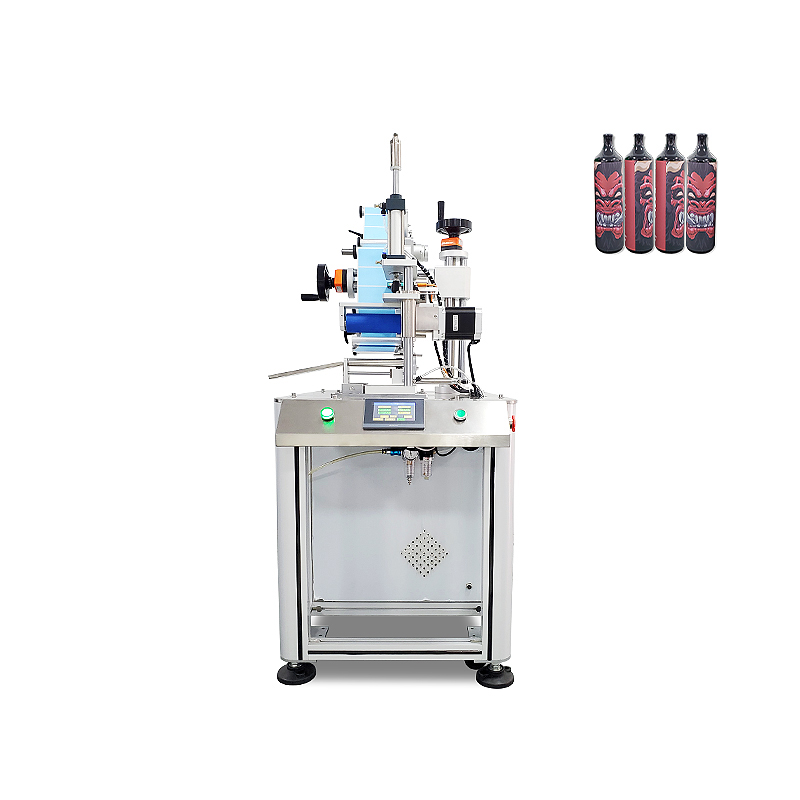

VK-T808 Semi Automatic Floor Type Round Labeling Machine
This machine is suitable for labeling stickers on small diameter cylinder like perfume vial. The main advantage is that this machine can label stickers more accurately. It is widely used in food, daily chemical industries.
Output Speed: 15-30 pieces/minute depends on label and bottle size
Dimension: 1025mm*648mm*1485mm

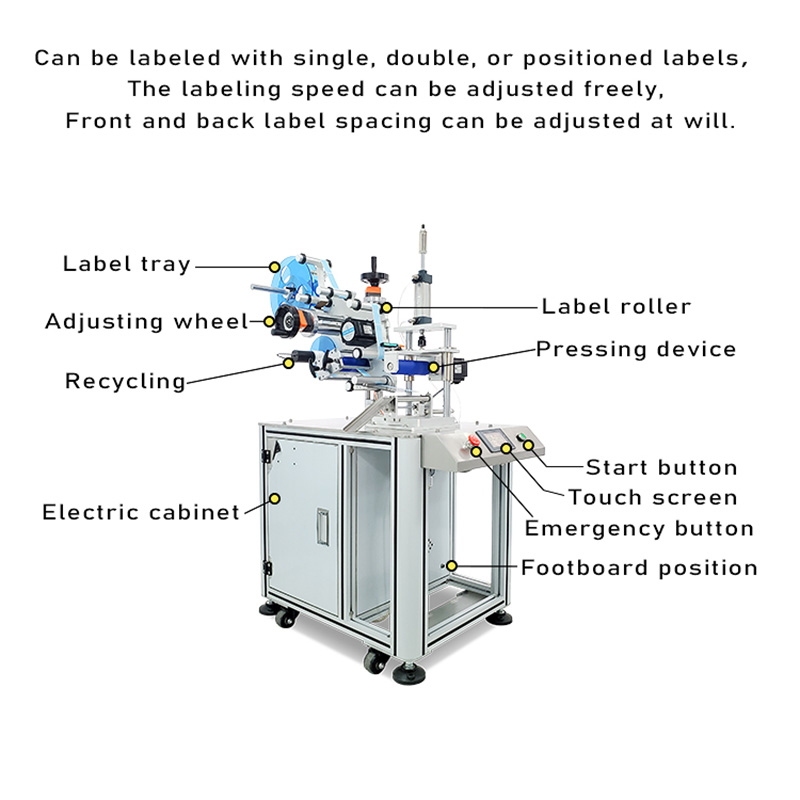

Function:
1. Equipped with an electric eye which is used for detecting labels, this can prevent from missing or wasting labels. lmprove working efficiency.
2. With simple control panel, this can help you control the machine easier. The working data is visual and can be adjusted easily, make the machine work more accurately.
3. Designed for labeling stickers on small diameter cylinder, it is suitable for single side or double side labeling. And it is with a product tray which can improve production quality.
4. The barometer can help you watch the air pressure in real time, ensure the safety operation.
5. The labeling mechanism works in conjunction with the roller to apply the label onto the tube securely. Once labeled, the tube is ejected by the base's pneumatic cylinder, allowing for the next tube to be placed and labeled seamlessly.
6. Smooth label feeding system, ensuring continuous label feeding and high efficiency.
Technical parameter:
| Model | VK-T808 |
| Labeling Accuracy | ±0.5mm |
| Labeling Speed | 15-30 pieces/min |
| Applicable for product diameter | 10mm-30mm |
| Applicable Label Size | Length: 6mm-200mm Bottom paper width: 8mm~130mm |
| Device Dimensions | 1025mm*648mm*1485mm |
| Applicable Power Supply | 220V/50HZ |
| Weight | 66KG |
| Applicable Label Roll lnner Diameter | 76mm |
| Applicable label Roll lnner Diameter | 280mm |

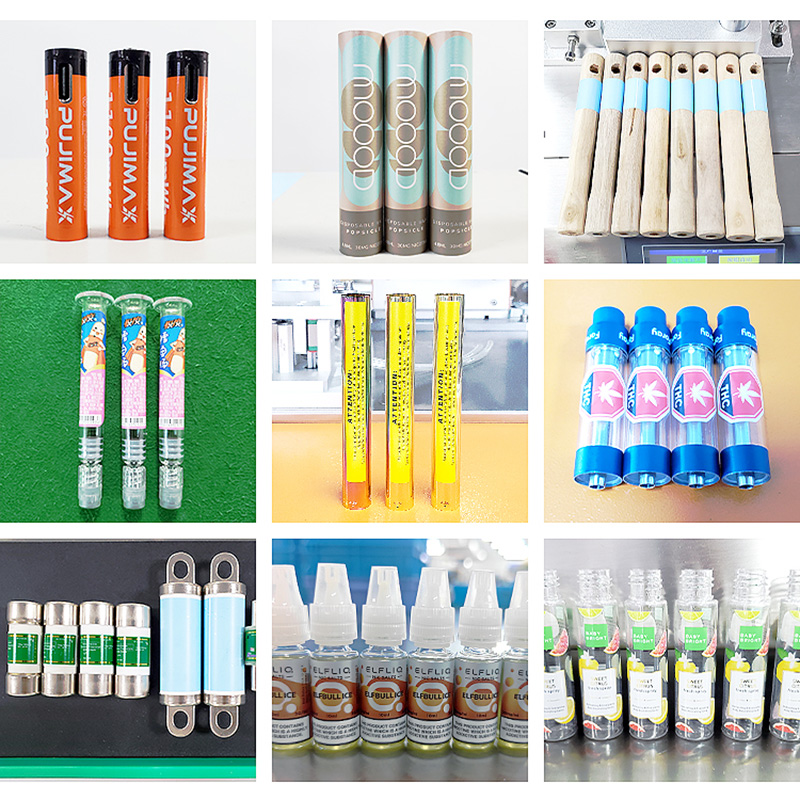

Application:

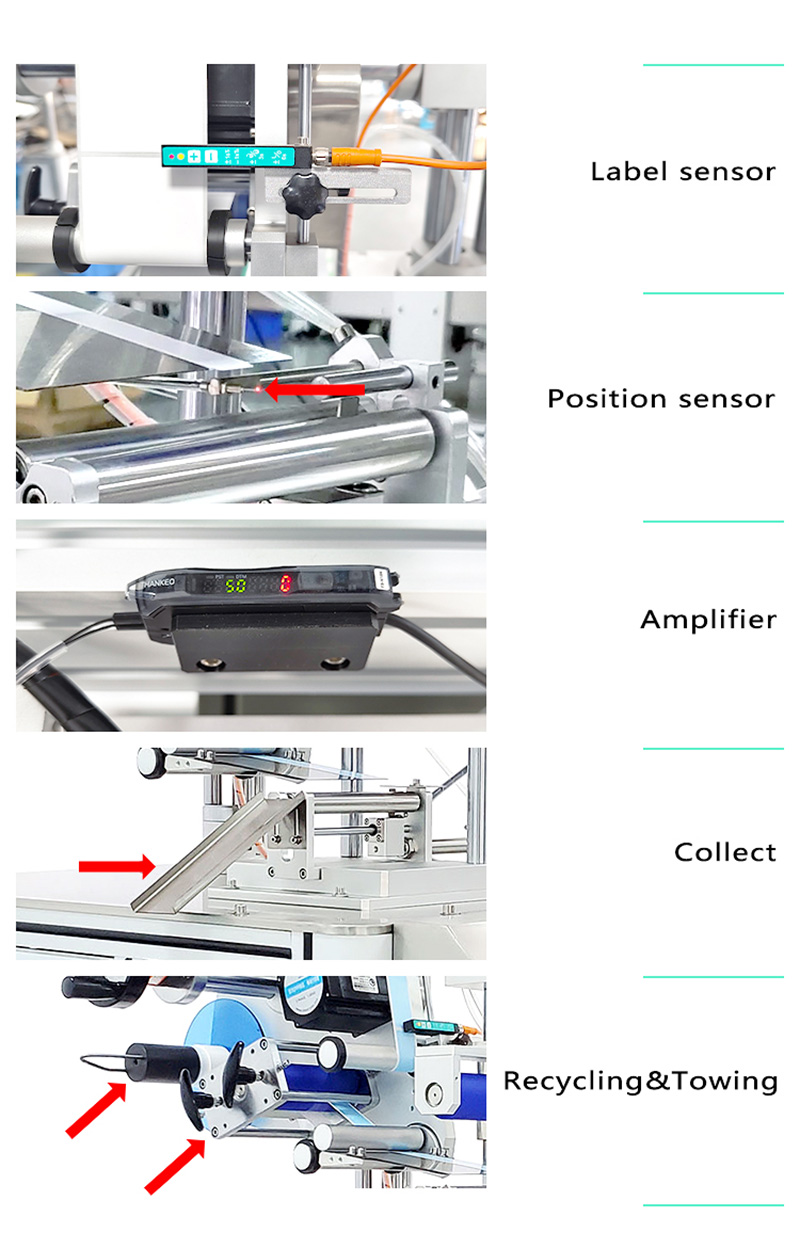

Details:
