• Printer can be installed for label printing;
• Servo motor for precise positioning;
• German SICK label electric eye quickly senses the label gap to complete labeling and complete the identification;
• Reasonable mechanical structure design ensures smooth and stable label delivery;
• Convenient application, can be adjusted in a wide range, realize the folding and labeling of different specifications of wire harness products;
• You don’t need to twist the screws to adjust the machine, just input the label size and wire diameter directly on the display.
• The labeling effect is good, the labeling efficiency is high, the operation is convenient, and the material belt is easy to replace. It is suitable for labeling various specifications of cables.

Function:

1. The label sensor quickly senses the label gap to complete the marking completion identification

2. Reasonable mechanics structure design ensures smooth and stable labeling

3. Easy to apply, can be adjusted to work with different spec products

4. Improve the labeling efficiency, film attachment, accurate placement, good quality and stability

5. Avoid manual labeling inefficiencies, skew, foaming, folds and others

Technical parameter:

Model	VK-T807
Labeling Accuracy	±0.5mm
Labeling Speed	20-25 pieces/min
Applicable wire diameters	2-10mm
Applicable Label Size	Length:40mm-180mm, Customizable width
Device Dimensions	1328mm*1049mm*1516mm
Applicable Power Supply	220V/50HZ
Weight	90KG
Applicable Label Roll lnner Diameter	76mm
Applicable label Roll lnner Diameter	250mm

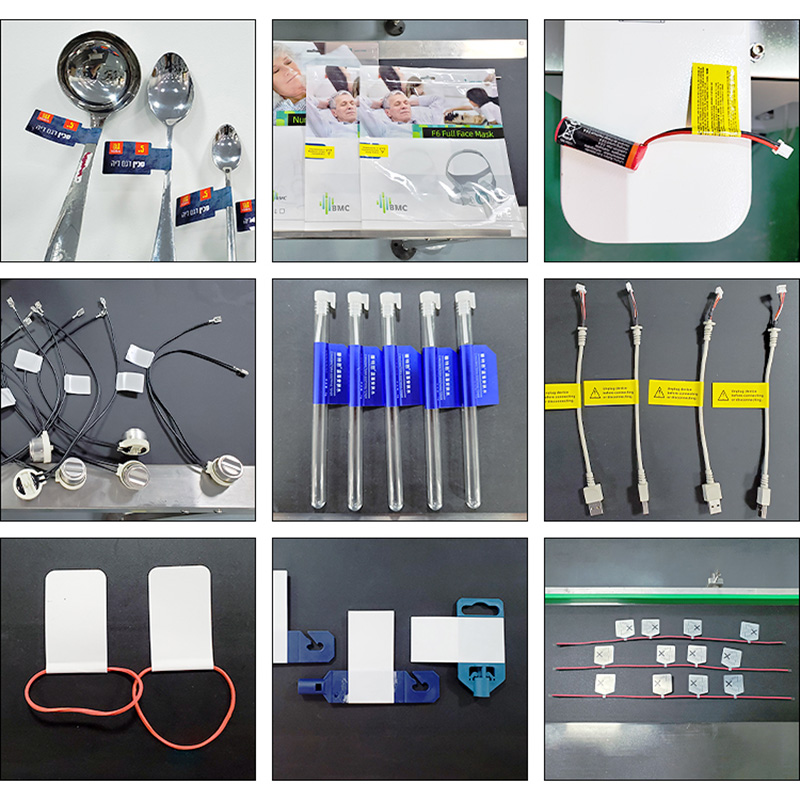

Application:

Used in a variety of wire, pole, plastic tube, jelly, lollipop, spoon, disposable dishes, and so on. Fold the label. It can be an airplane hole label.

Characteristics:

Accurate labeling: PLC+ fine-stepping-motor-driven label delivering ensures high stability and accurate label delivery; the feeding mechanism is equipped with brake function to ensure tensing the label strip and accurate detection of label positioning; The label strip rounding rectifier can prevent left or right offset of labels;

Durable: electric circuit and gas path are separately arranged; gas path is equipped with a purifying device to avoid air moisture fromdamaging electrical equipment, thus extending service life of theequipment; the device is made of advanced aluminum alloy and stainless steel, delivering superior quality and rugged reliability;

Easy to adjust: its vertical stroke is adjustable, so it is applicable for labeling products of varied heights, without the necessity to change fixtures repeatedly;

Beautiful appearance: the combination of bottom-placed computer, orange distribution box, stainless steel and advanced aluminum alloy delivers aesthetic impression and improves the grade of the device;

Manual / automatic labeling is optional: operators can control the labeling by the sensor or by stamping; manual and automatic control buttons are provided; length of labels can be adjusted at will;
