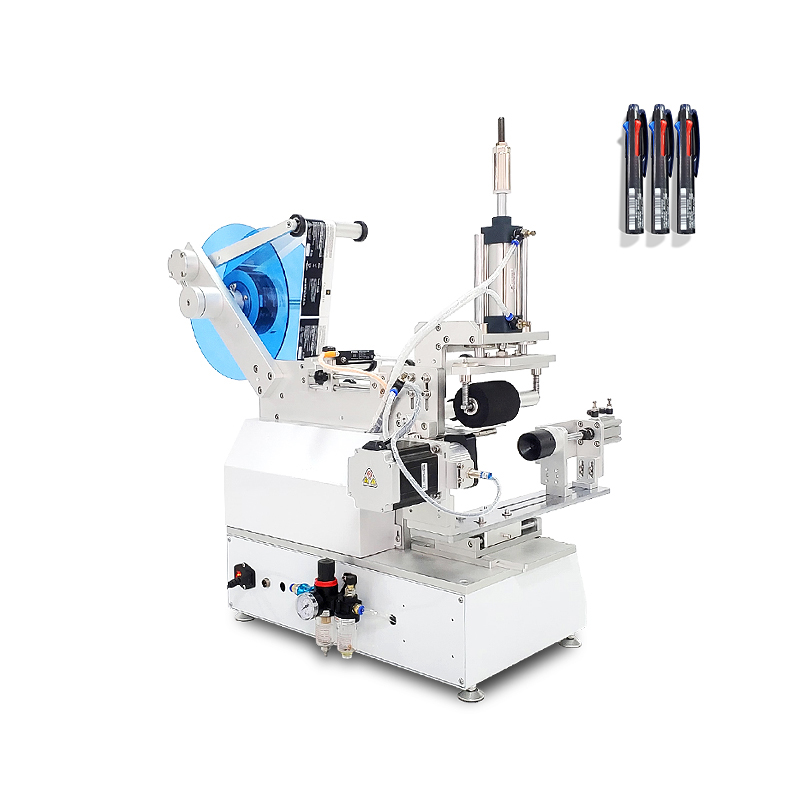

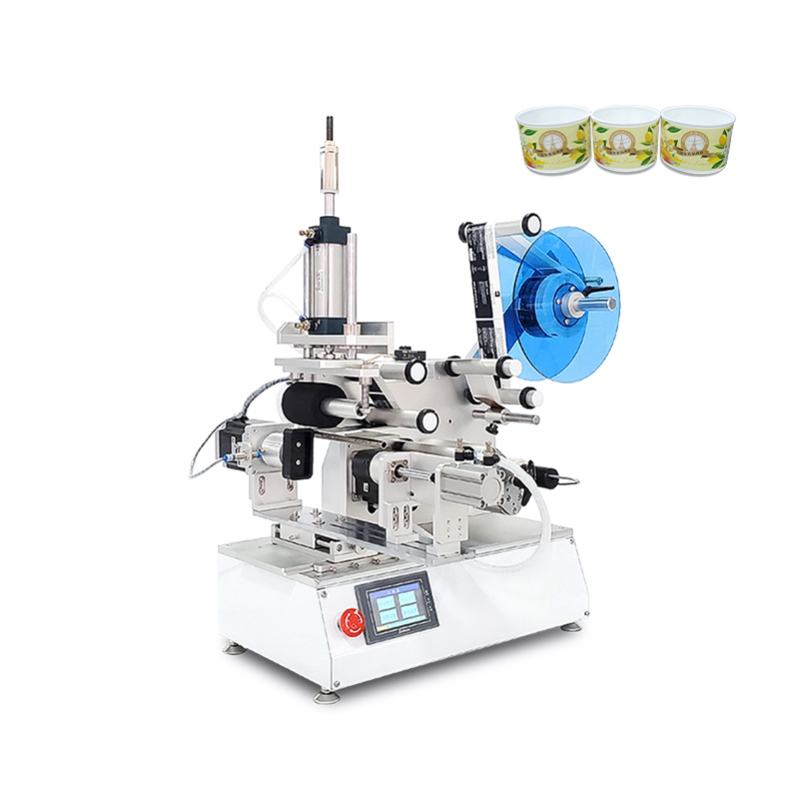

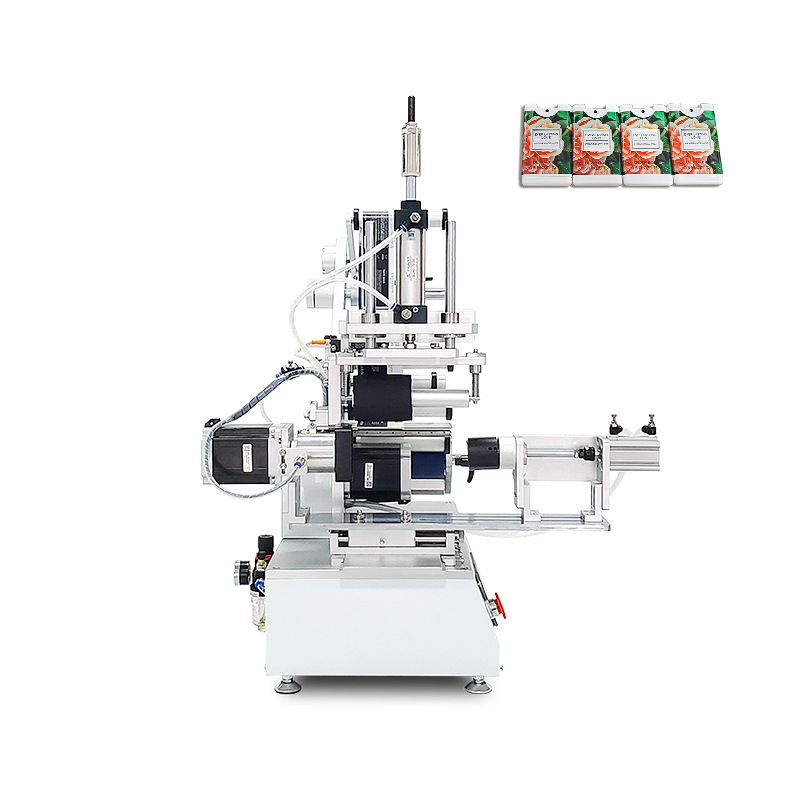

VK-T805 Semi Automatic Rolling Wrap Around Labeler Machine

VK-T805 Semi Automatic Rolling Wrap Around Labeling Machine

The semi-automatic labeler is equipped with a rotating motor and roller for labeling different products and shapes, including flat surfaces, and round or square bottles. As an example, it applies labels to three sides of a honey bottle, or all 4 sides of a tea caddy. By changing the smoothing device, it applies labels to uneven surfaces such as a concave or curved surface. With the use of different jigs, the semi-automatic labeler will also apply labels to irregularly shaped products.

The ribbon printer and industrial inkjet printer are optional. They are used for printing the production date and bath number on labels, combining printing and labeling processes.

Output Speed: 15-30 pieces/minute depends on label and bottle size

Dimension: 843mm*759mm*895mm

The rolling labeling method is applied to realize the labeling of various workpieces on the plane, such as flat bottle, square bottle, hexagonal bottle, prismatic bottle and so on. Changing the marking mechanism can be applied to the labeling of uneven surfaces, such as prismatic surfaces and circular surface labelling.

Function:

1. Electric eye are designed for detecting labels. can label stickers accurately, prevent from leaving out or wasting labels.

2. Operation panel make the working data visual,help to control the machine better. Can be set into English version.

3. Scroll to label stickers, labeling effect is better and improve production quality.

4. The mold can be customized according to labeling materials, make the machine can match your products perfectly. lt is suitable for labeling full circle of irregular bottles like square bottles.

Technical parameter:

Model	VK-T805
Labeling Accuracy	±0.5mm
Labeling Speed	15-30 pieces/min
Applicable for product diameter	Length: 20mm-200mm, width: 20mm-180mm, Thickness: 5mm-130mm
Applicable Label Size	Length: 15mm-300mm, Bottom paper width: 25mm~160mm
Device Dimensions	843mm759mm895mm
Applicable Power Supply	220V/50HZ
Weight	57KG
Applicable Label Roll lnner Diameter	76mm
Applicable label Roll lnner Diameter	280mm

Application:

Applicable labels: self-adhesive labels, transparent labels, electronic supervision codes, barcodes, etc.

Applicable products: products that require labeling on flat, curved or other surfaces.

Application industry: widely used in food, toys, daily chemicals, electronics, hardware, plastics, printing and other industries.

Application examples: lighters, muti-angle bottles, square bottles, flat bottles, etc.

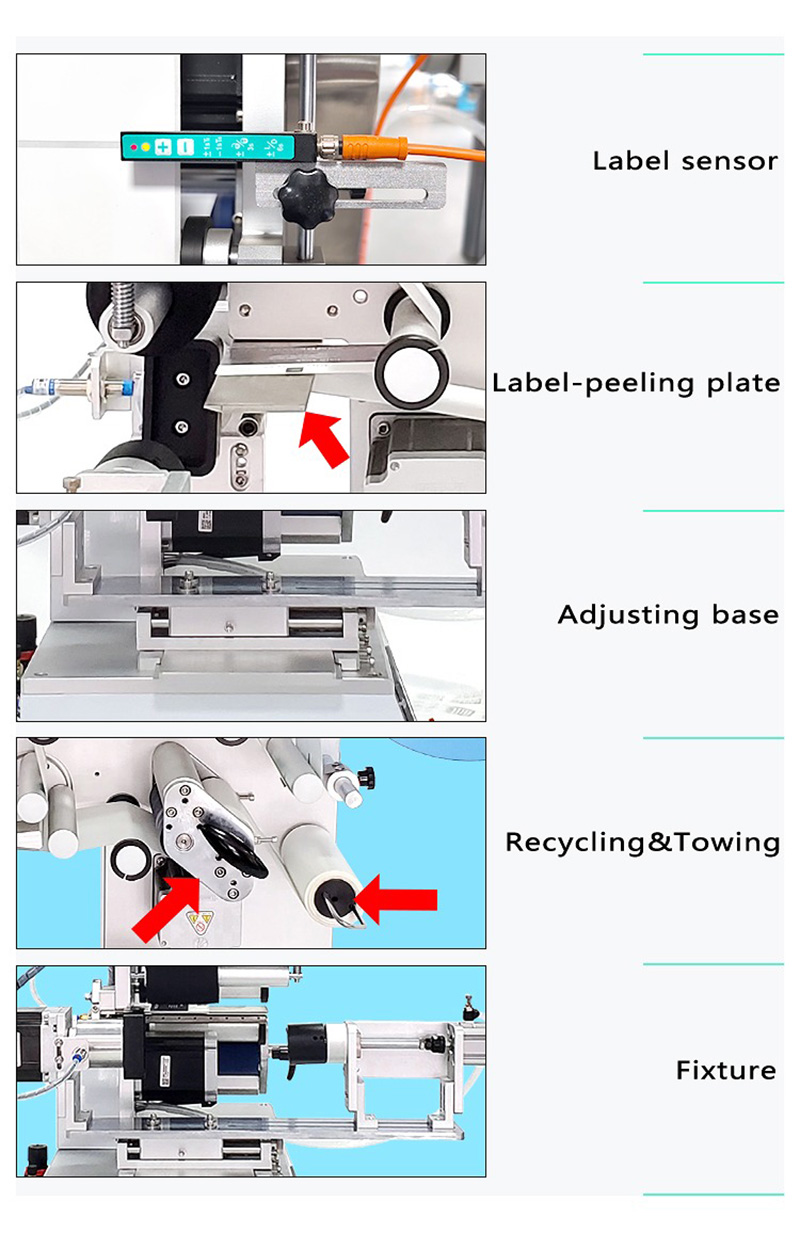

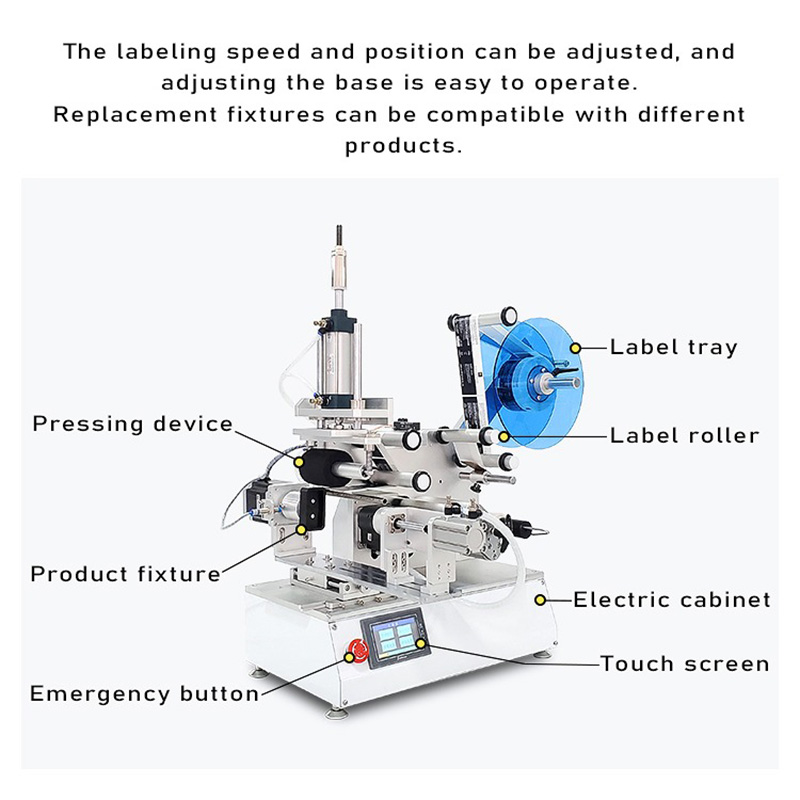

Details

Photoelectric sensor

The labeling machine is equipped with a photoelectric sensor provided by Sick and features an exceptionally high precision and reliability.

Touch screen:

The touch screen is PLC controlled, with an easy to use human to machine interface. With just a tap of the touch screen, users can carry out an array of functions and determine a variety of product parameters to meet specific requirements.

Coding machine:

The coding machine will print vital information on the label during the labeling process, such as batch numbers.

Rotating motor:

It is used to rotate different products, including round bottles, square bottles, flat bottles and faceted bottles for label applications.
