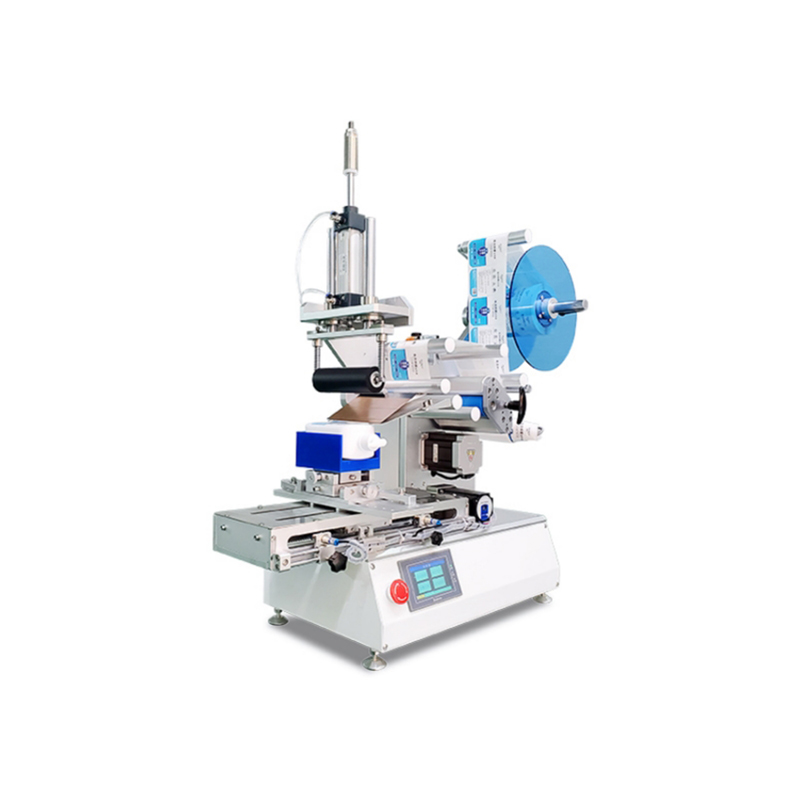

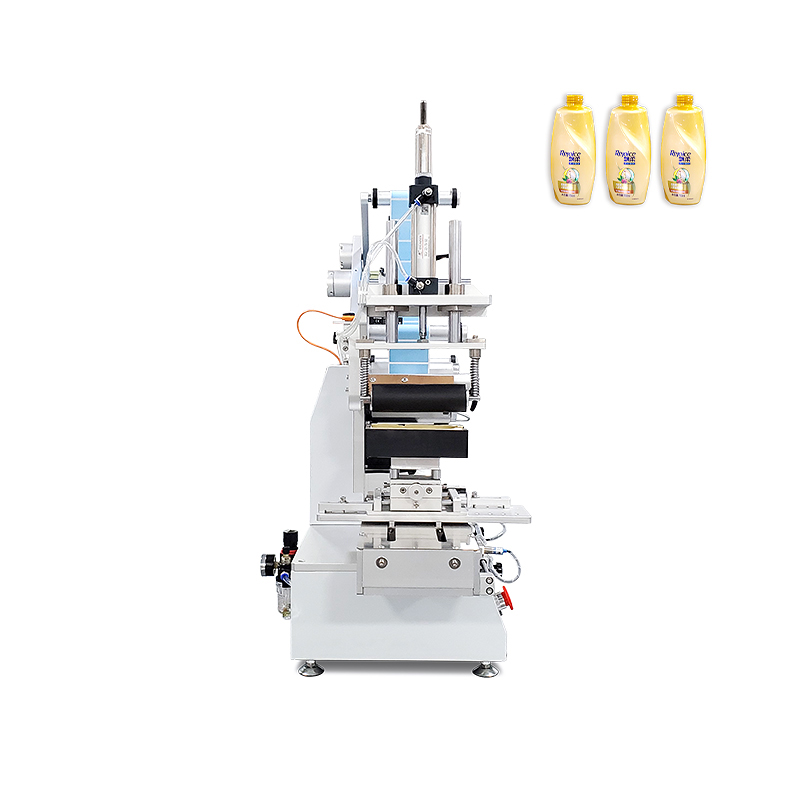

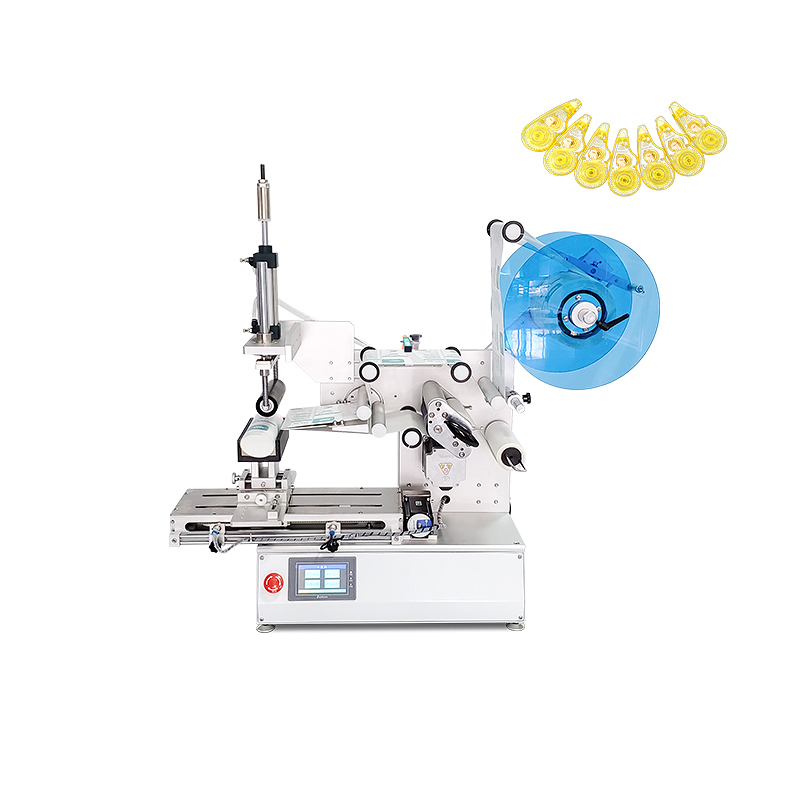

VK-T803 Semi-Automatic Flat Labeling Machine With Roller
The semi-automatic labeler is a roller style labeling machine designed for labeling a variety of flat and arc surfaces. It applies a label to an uneven surface simply by changing the smoothing device. With the use of different jigs, the semi-automatic labeler applies labels to irregular shaped products.
A ribbon printer and industrial inkjet printer are optional. They are used to print the production date and batch number on the label so as to realize an integration of labeling and printing applications.
Output Speed: 15-30 pieces/minute depends on label and bottle size
Dimension: 995mm*432mm*966mm

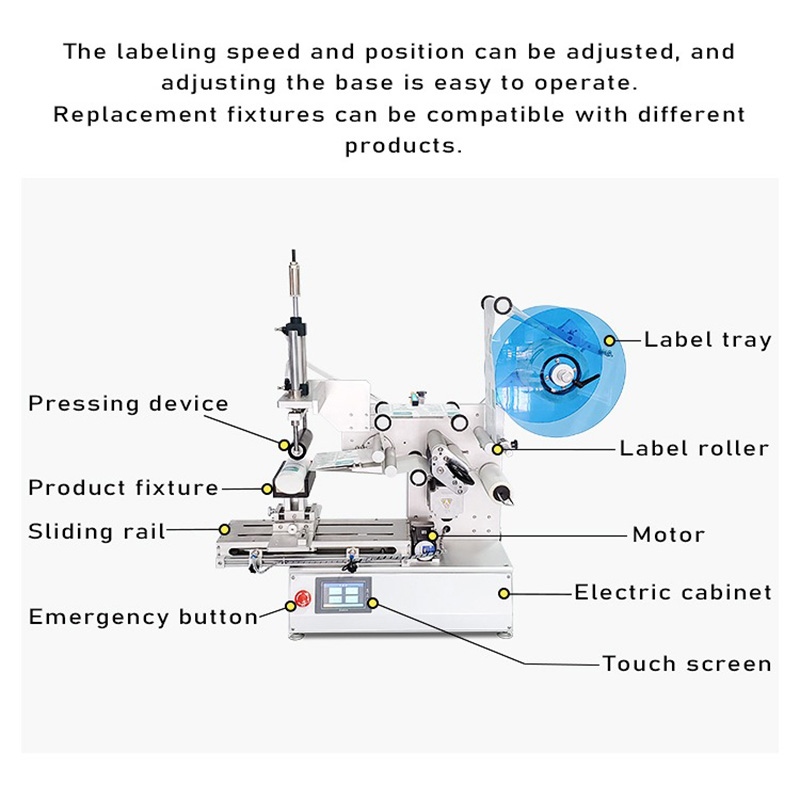

Function:
1. Equipped with high quality labeling roller, it can make sure there is no bubble under label stickers. Improve labeling quality.
2. The positioning component can be adjusted according to bottle size, it is suitable for bottle which is smaller than 280*200*150mm. It is no necessary to change fixing mold, you just need to adjust screws.
3. Equipped with high quality electric eye, this is designed for detecting labeling object in automatic working mode. Improve labeling accuracy. The sensitivity can be adjusted by the adjusting component, prevent from missing labeling object.
4. The touch screen control panel makes it more convenient to adjust the working parameter, save time. We can customize the touch screen in different kinds of language according to your operation need.
5. The label sensor can control to output label stickers or not, it can help you save labor and ensure the labeling accuracy.
Technical parameter:
| Model | VK-T803 |
| Labeling Accuracy | ±0.5mm |
| Labeling Speed | 15-30 pieces/min |
| Applicable for product diameter | Length: 20mm-120mm, width: 20mm-180mm, Thickness: 0.2mm-75mm |
| Applicable Label Size | Length: 15mm-300mm, Bottom paper width: 25mm~155mm |
| Device Dimensions | 995mm*432mm*966mm |
| Applicable Power Supply | 220V/50HZ |
| Weight | 58KG |
| Applicable Label Roll lnner Diameter | 76mm |
| Applicable label Roll lnner Diameter | 280mm |
Application:
Applicable labels: self-adhesive label, self-adhesive film, electronic supervision codes, bar codes
Applicable products: products requiring a label on a flat, cambered, round, concave and convex surface.
Applicable industries: cosmetics, food, toys, daily chemicals, electronics, pharmaceutical
Features:
Electric Eye
When the electric eye detects the product, the machine will send out the label and stick it on the product. Intelligent and efficient. The sensitivity of the electric eye can be adjusted by the sensitivity regulator.
Control Panel
Through the PLC panel, you can set the technical parameters like label outputting speed and labeling delay time. Easy to operate. The language of the panel can be customized according to customers' need.
Workbench
The rod is used for positioning the products, so that they can be labeled well, improving labeling quality. Its position can be adjusted by rotating the nuts. The black handle is for adjusting the position of workbench. Easy and convenient .

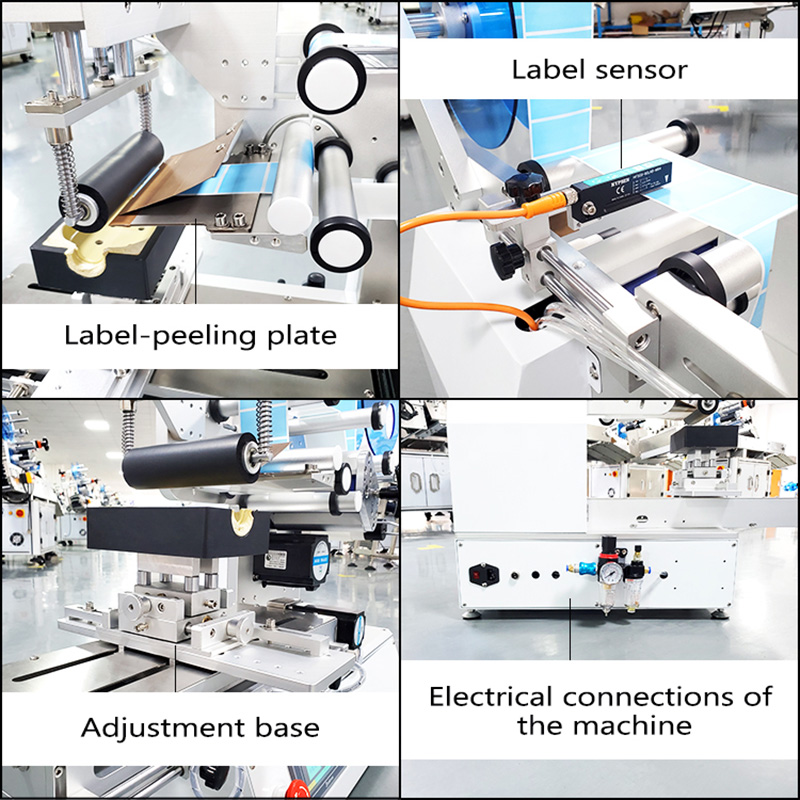

Labeling Structure
With high-quality labeling structure, it can stick labels on products well, ensuring that there is no bubbles between label and product. The height of the roller can be adjusted by the rotary handle, making it suitable for products of different heights.

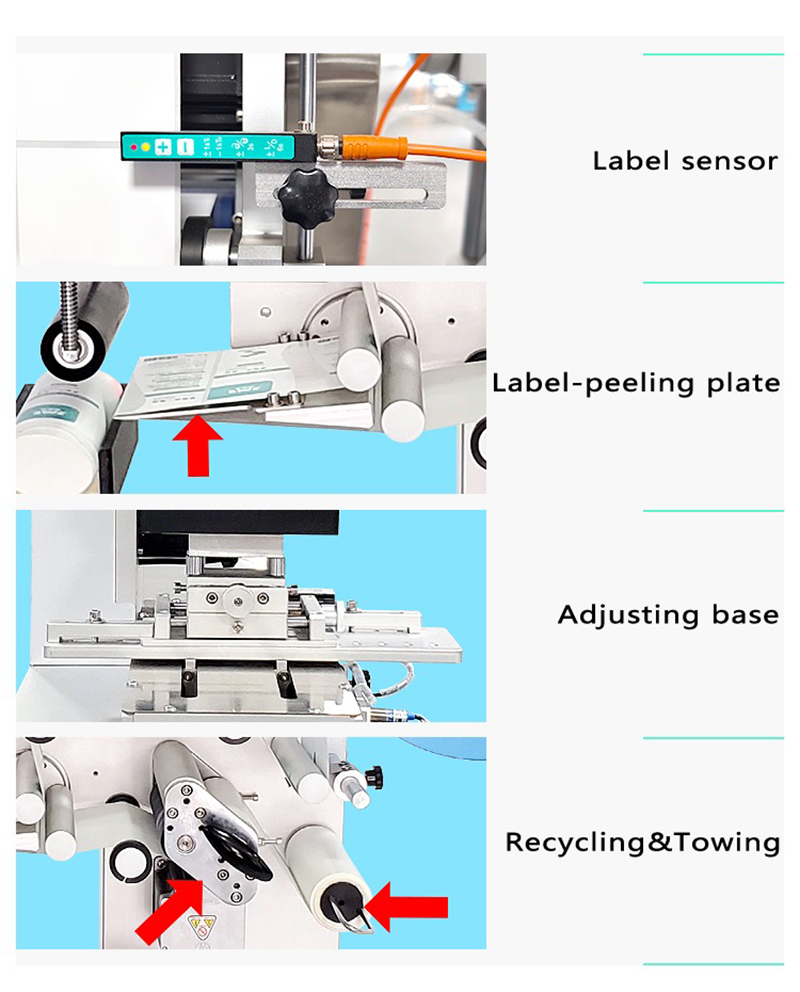

Label Sensor
It is designed for detecting the labels, enabling it to output the labels accurately, which prevents from wasting or missing labels. Improve work efficiency and save label cost.
Pedal Switch
The machine has two working modes: Automatic working mode and manual mode. In manual mode, you can label the products by pressing the pedal switch. Easy to operate.
