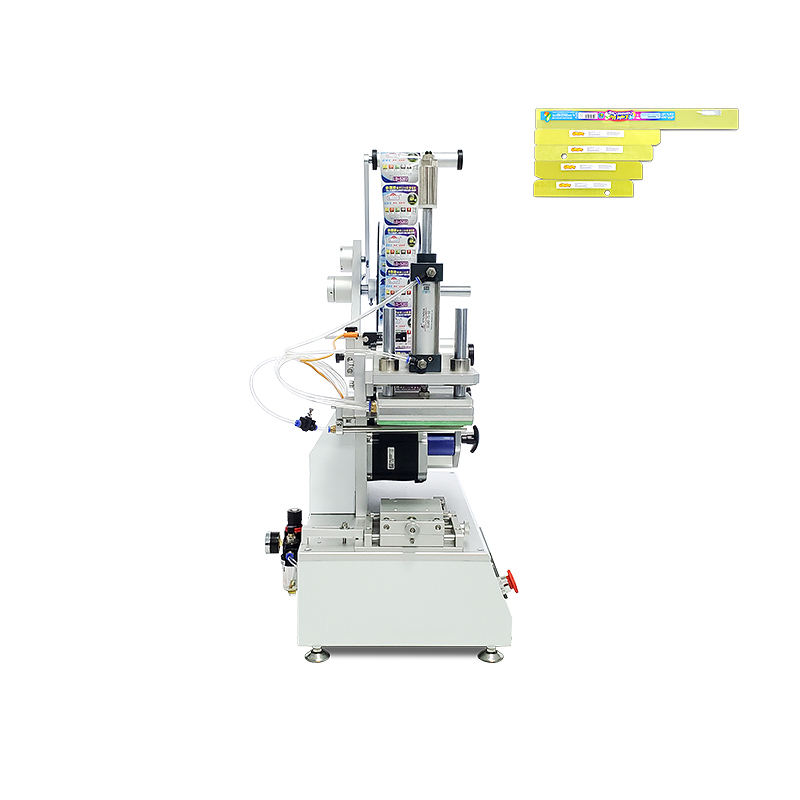

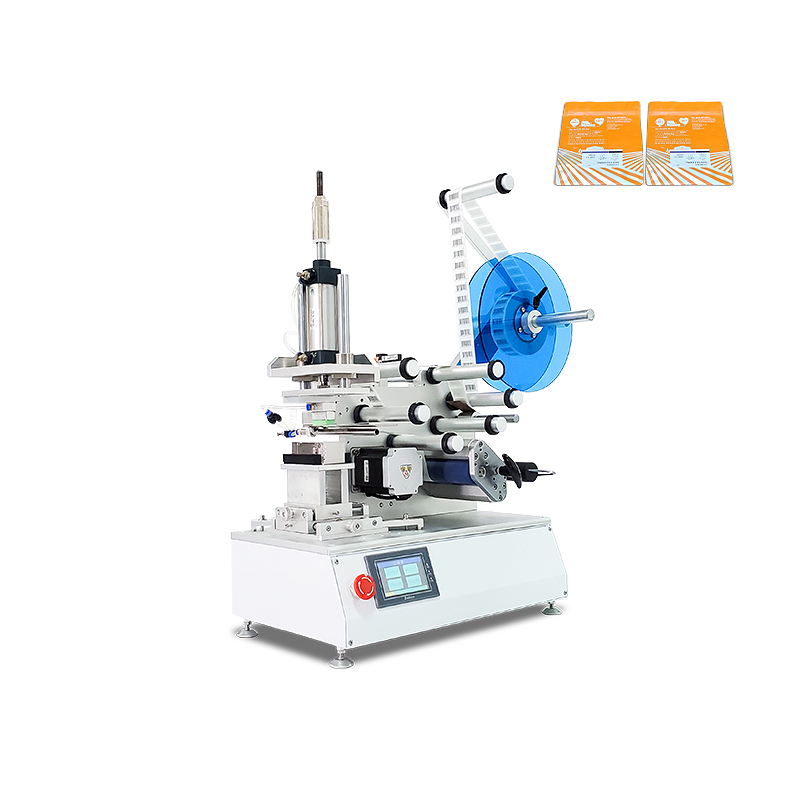

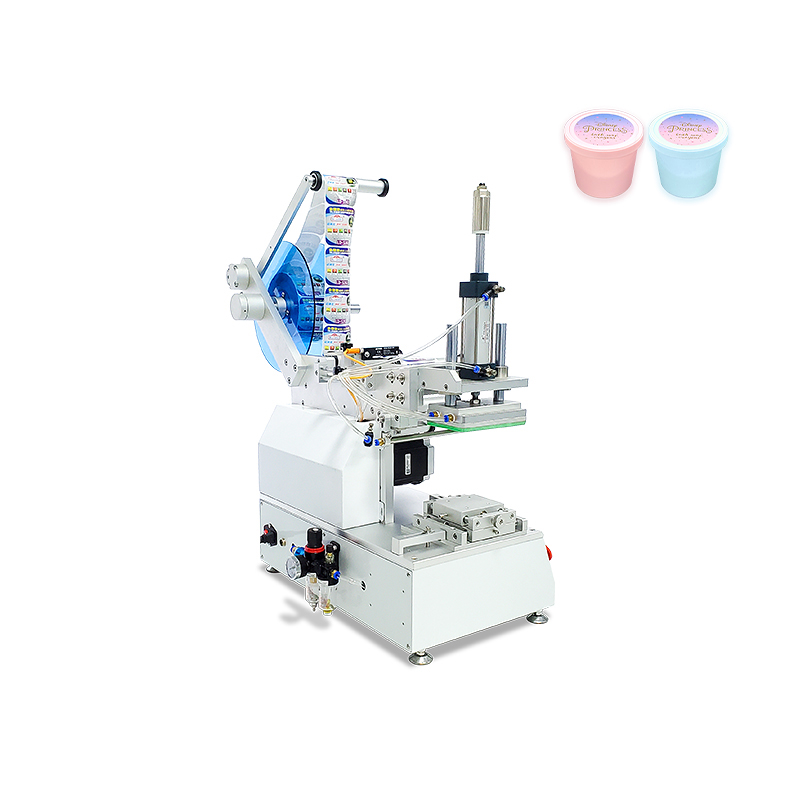

This semi-automatic labeling machine is designed for sticking self-adhesive stickers onto flat surface of bottles, boxes. There are many small holes in the sponge of the labeling component. Through the work of the cylinder, the label on the label roll can be sucked and completely attached to the flat surface of the product. By changing the mold, the machine will be suitable for flat labeling of various irregular products.

Labeling is carried out by means of suction and sticking to achieve labeling on the plane of various work pieces, such as cosmetic flat bottles, packaging boxes, plastic cover labeling, etc.

Change the labeling mechanism, which can be applied to uneven surface labeling, such as labeling of concave planes and circular planes.

Function:

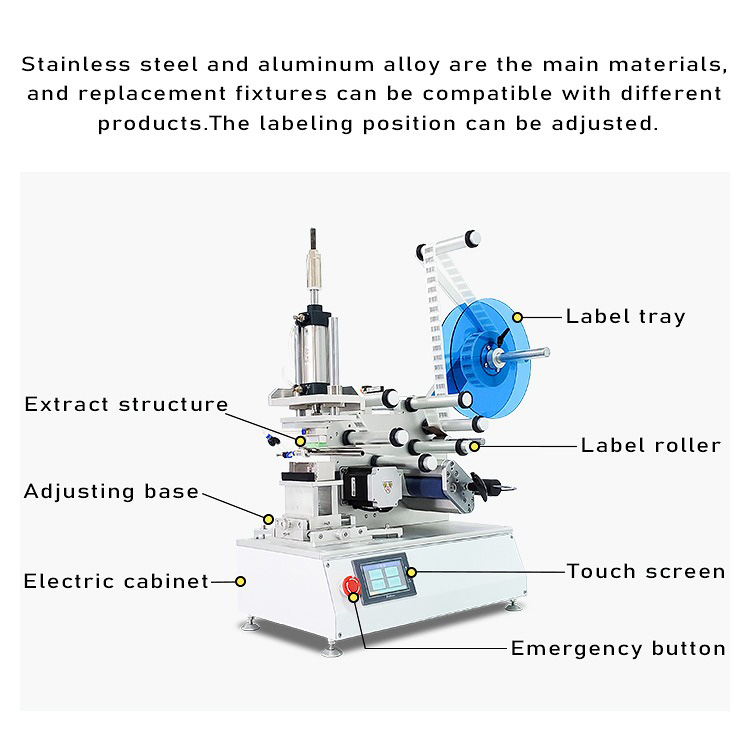

1. Equipped with PLC touch screen control panel, working data like labeling speed, labeling time can be adjusted more intuitively and convenient. The operation language can be customized according to production need.

2. There are many small holes in the sponge of the labeling component. Through the work of the cylinder, the label on the label roll can be sucked and completely attached to the flat surface of the product.

3. The mold is customized according to labeling objects,changing fixing mold can make the machine be suitable for flat labeling of various irregular products.

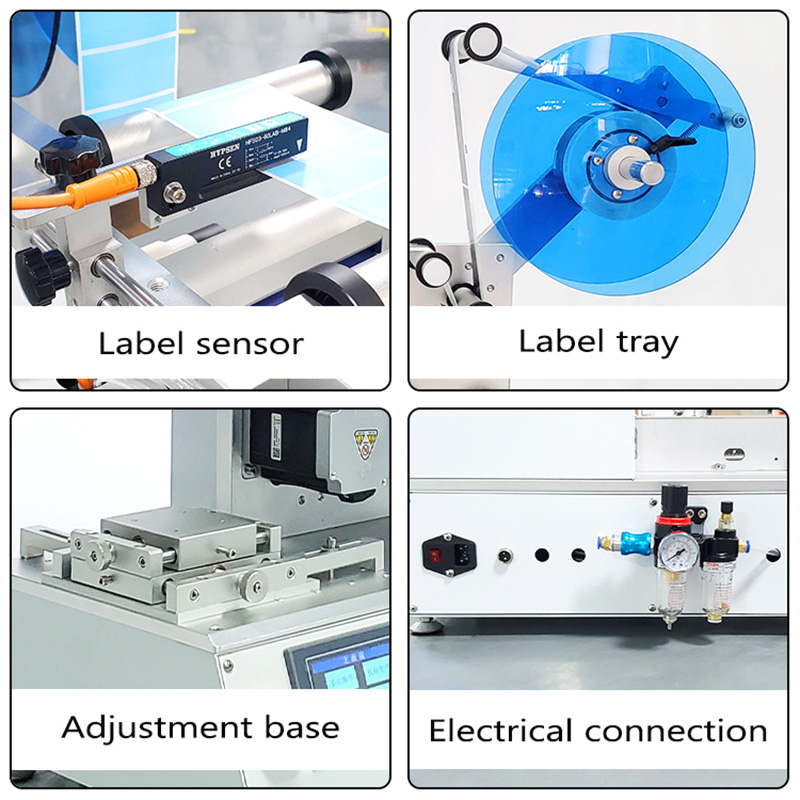

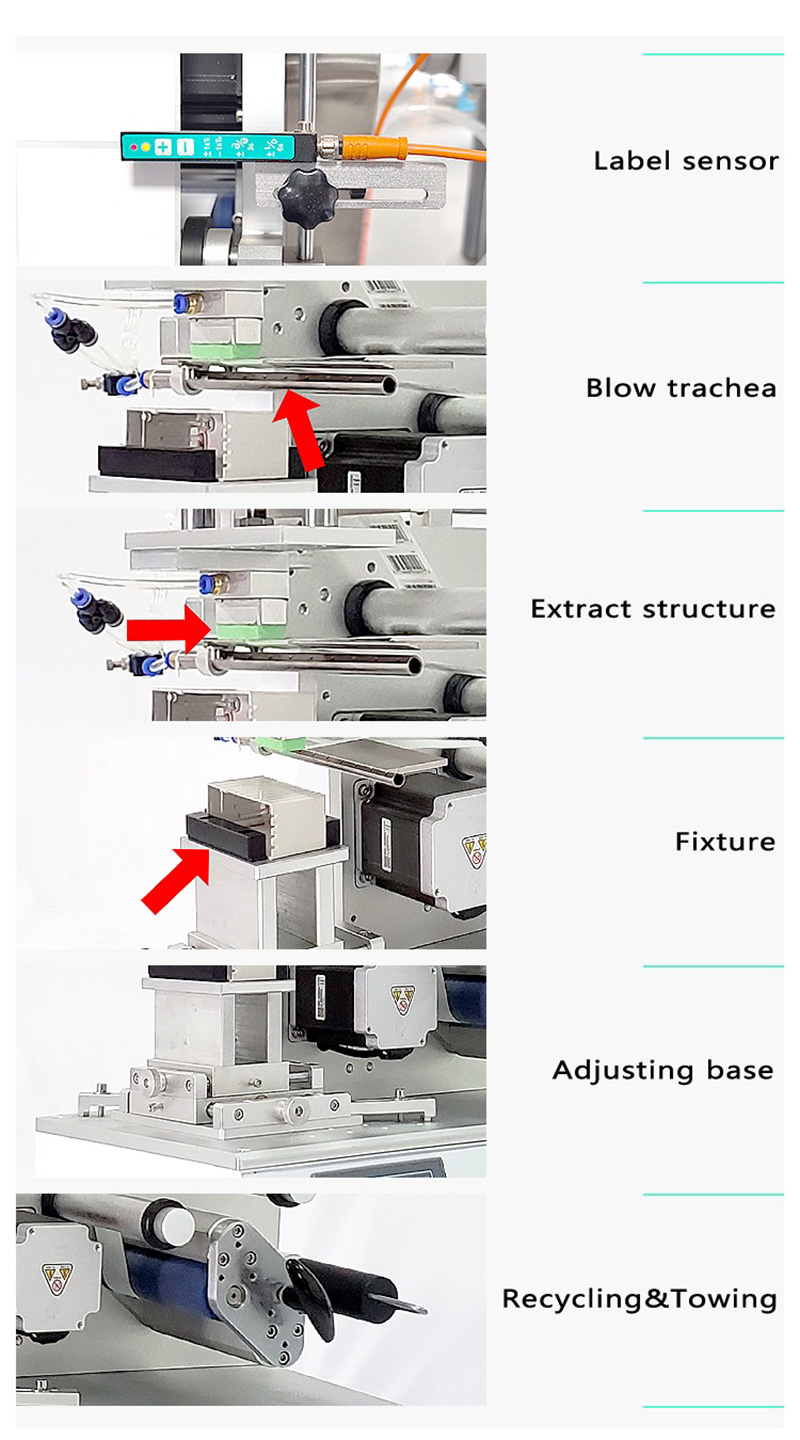

4. The label sensor can help the machine output labels correctly based on light transmittance, improves working accuracy.

5. Equipped with pedal switch to control the machine work, it free operators’ hands during working, improves working efficiency.

Technical parameter:

Model	VK-T802
Labeling Accuracy	±0.5mm
Labeling Speed	15-30 pieces/min
Applicable for product diameter	Length: 20mm-200mm ，width：20mm-150mm ,   Thickness: 0.2mm-120mm
Applicable Label Size	Length: 20mm-100mm, Bottom paper width :25mm~160mm
Device Dimensions	840mm*440mm*840mm
Applicable Power Supply	220V/50HZ
Weight	48KG
Applicable Label Roll lnner Diameter	76mm
Applicable label Roll lnner Diameter	280mm

Application:

Applicable labels: self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc.

Applicable products: products requiring a label on a flat, arc, round, concave, or convex surface.

Applicable industries: food, toys, daily chemicals, electronics, pharmaceutical

Features:

1. Labeling is carried out by means of suction and sticking to achieve labeling on the plane of various work pieces, such as cosmetic flat bottles, packaging boxes, plastic cover labeling, etc.

2. Change the labeling mechanism, which can be applied to uneven surface labeling, such as labeling of concave planes and circular planes.

3.Optional matching ribbon printer and jet printer, labeling at the same time print production batch number, production date, expiration date and other information, labeling, one-step completion of coding, greatly improving production efficiency.

4. It need to custom the fixture to apply to the labeling of various irregular work pieces. (please send you bottle or measure your bottle size )

5. We can custom the machine to apply your label and bottle. please contact with us.

Notice:

1. Optional matching ribbon printer and jet printer, labeling at the same time print production batch number, production date, expiration date and other information, labeling, one-step completion of coding, greatly improving production efficiency.

2. It need to custom the fixture to apply to the labeling of various irregular work pieces.(please send you bottle or measure your bottle size )

3. We can custom the machine to apply your label and bottle . please contact with us

4.The default delivery is 220V. If you need 110V, please contact us.
