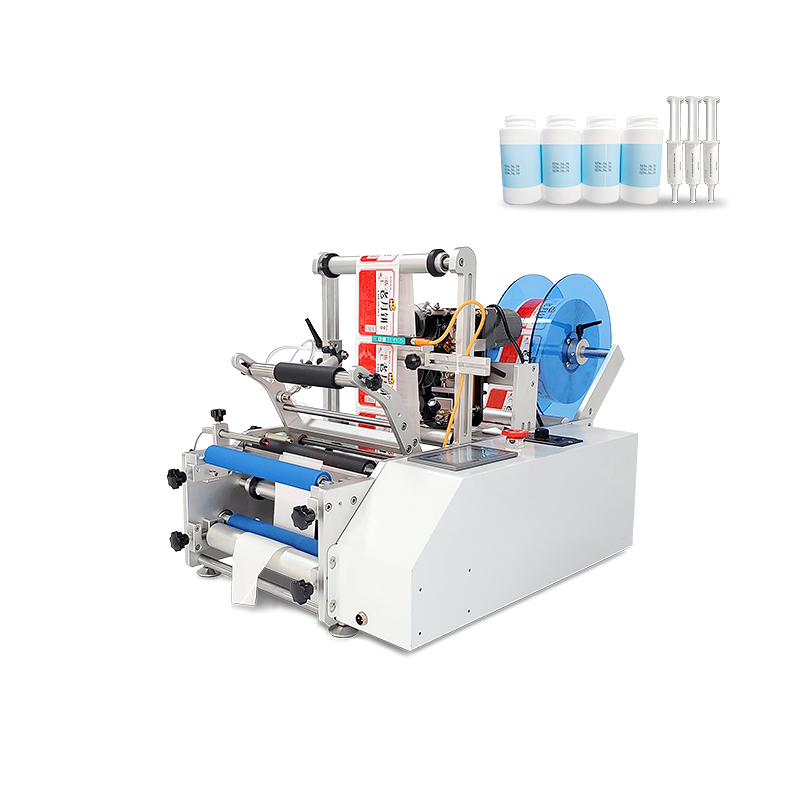

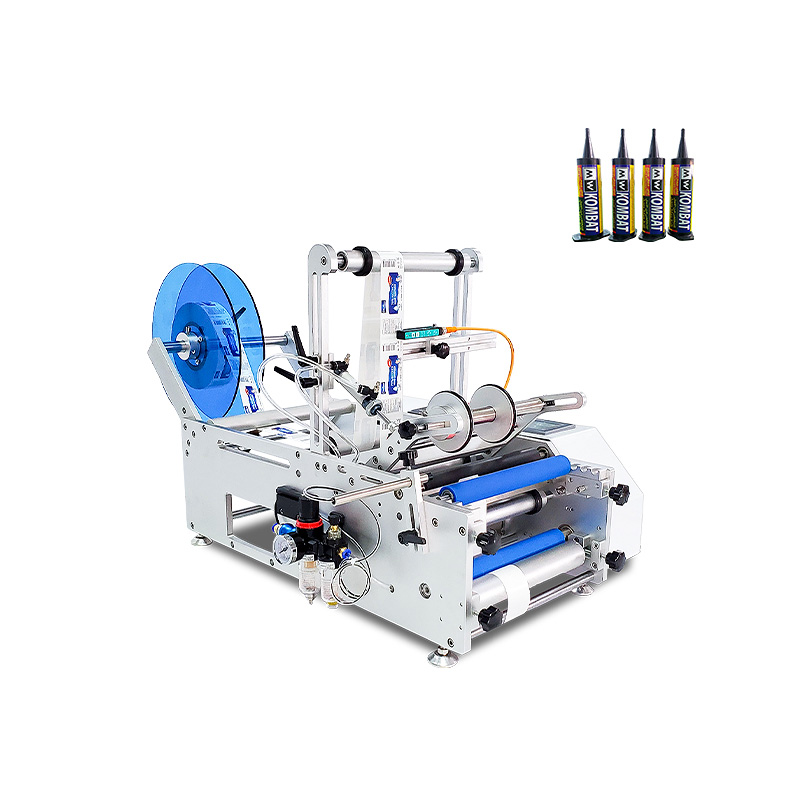

VK-T801 Semi Automatic Round Labeling Machine
The semi-automatic labeler applies a full or partial wrap to cylindrical and tapered bottles. This tabletop labeler features a production speed of up to 30 pieces/minute, with an optional circumferential positioning detection device for assisting the machine in applying a label to a designated position on a circular surface. The ribbon printer and industrial inkjet printer are also optional for printing information such as batch numbers on the label in order to simplify packaging procedures and improve production efficiency.

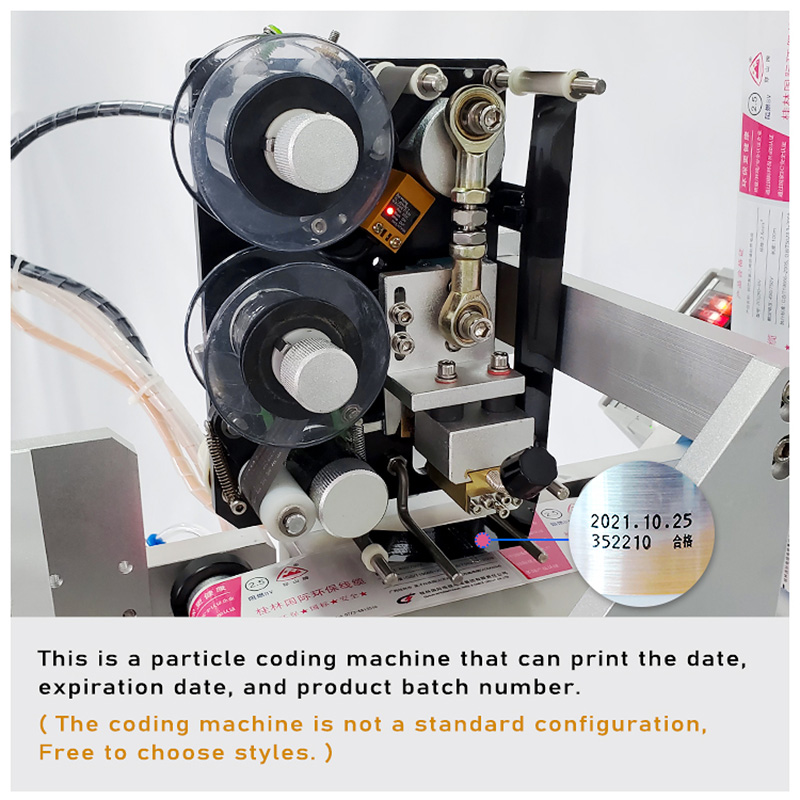

1. Optional matching ribbon printer and jet printer, labeling at the same time print production batch number, production date, expiration date and other information, labeling, one-step completion of coding, greatly improving production efficiency.
2. If you want use for Flat Or irregular thing. please contact us. We can customized.
Output Speed: 15-30 pieces/minute depends on label and bottle size
Dimension: 913mm*495mm*502mm
Function:

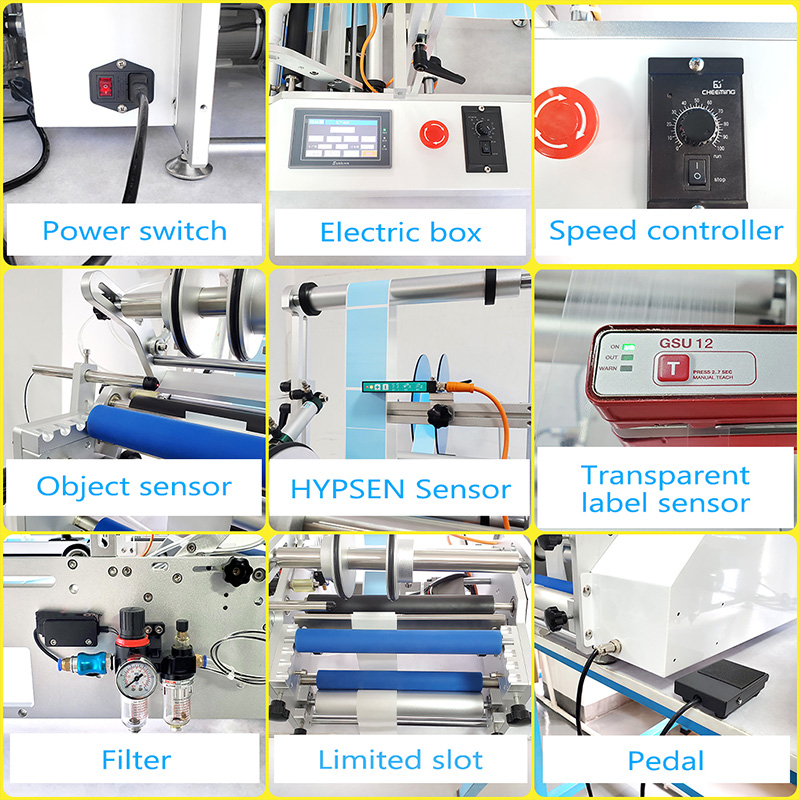

1. The imported electric eye can detect the label/bottle accurately, this prevent from leaking and wasting labels/bottles.
2. This machine can be used for single side or double side labeling. This widen the use range of thismachine. Additionally, English operation panel make it easy to test and use the machine.
3. With Stop button,can protect the machine from damaged and keep the operator safe duringworking. The labeling speed is also adjustable for control the machine better.
4. The imported electric eye can detect the label/bottle accurately, this prevent from leaking andwasting labels/bottles.
5. This machine has two working mode, one is automatic working mode. Another one is pedal switchcontrol working mode. Customer can choose the best working mode based on use.
6. The adjustable-speed motor works stably and efficiently. It can works for a long time and easy tomaintenance.
Technical parameter:

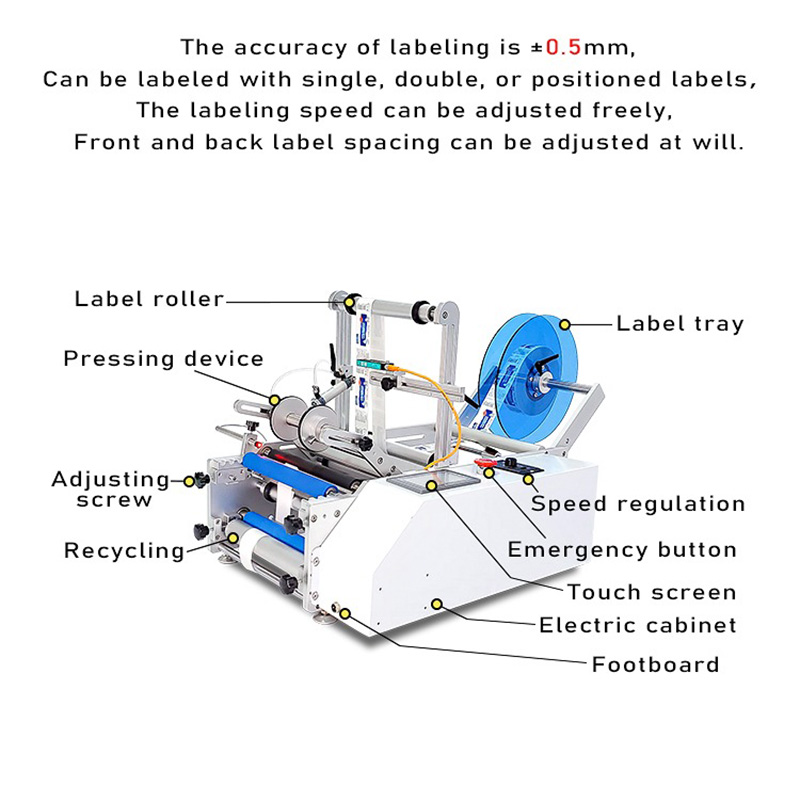

| Labeling Accuracy | ±0.5mm |
| Labeling Speed | 15-30 pieces/min |
| Applicable for product diameter | 10mm-150mm |
| Applicable Label Size | Length: 20mm-300mm Bottom paper width :10mm~230mm |
| Device Dimensions | 913mm*495mm*502mm |
| Applicable Power Supply | 220V/50HZ |
| Weight | 34KG |
| Applicable Label Roll lnner Diameter | 76mm |
| Applicable label Roll lnner Diameter | 280mm |
Application:
Applicable labels: self-adhesive label, self-adhesive film, electronic supervision codes, bar codes
Applicable products: wine bottle, round bottles such as cosmetic bottles
Applicable industries: food, pharmaceutical, cosmetics, daily chemical, electronics, hardware, plastic
Work Process:
Core working principle: the sensor detects that the product is in place or the foot is stepped on to signal that the product is in place, and the suction head sucking the label goes down to apply and press the label, and then returns to home position to absorb the next label, wait for the next labeling signal, and the applying of a label is completed.
Operation process: place the product - make sure product in place (equipment detection control or manual control) - apply and press label (automatically realized by the equipment) - take out labeled product.
Features:
Powerful function: It can be used for labeling of cylindrical objects of various specifications, small taper round bottle labeling, and can realize full-wrap/half-wrap labeling, and labeling on the front and back of round bottles.
Accurate labeling: high stability, using PLC + subdivided stepping motor to drive the label delivery, accurate delivery; the feeding mechanism is equipped with a brake function to ensure that the label is tensioned to ensure accurate label detection; the label tape bypasses the deviation correction mechanism to prevent the label from shifting left and right.
Durable: The electrical and the pneumatic circuits are arranged separately, and the pneumatic circuit is equipped with a purification device to prevent the moisture in the air from invading the electrical appliances and prolong the life of the equipment; the whole machine adopts high-grade aluminum alloy and stainless steel materials, solid quality.
Easy to adjust: It is equipped with the function of adjustable spacing and stroke, and labels of different sizes of products, without the need to repeatedly replace the jig.
Beautiful appearance: The bottom-mounted computer white electric box, with stainless steel and high-grade aluminum alloy, is beautiful and elegant, and improves the equipment level.

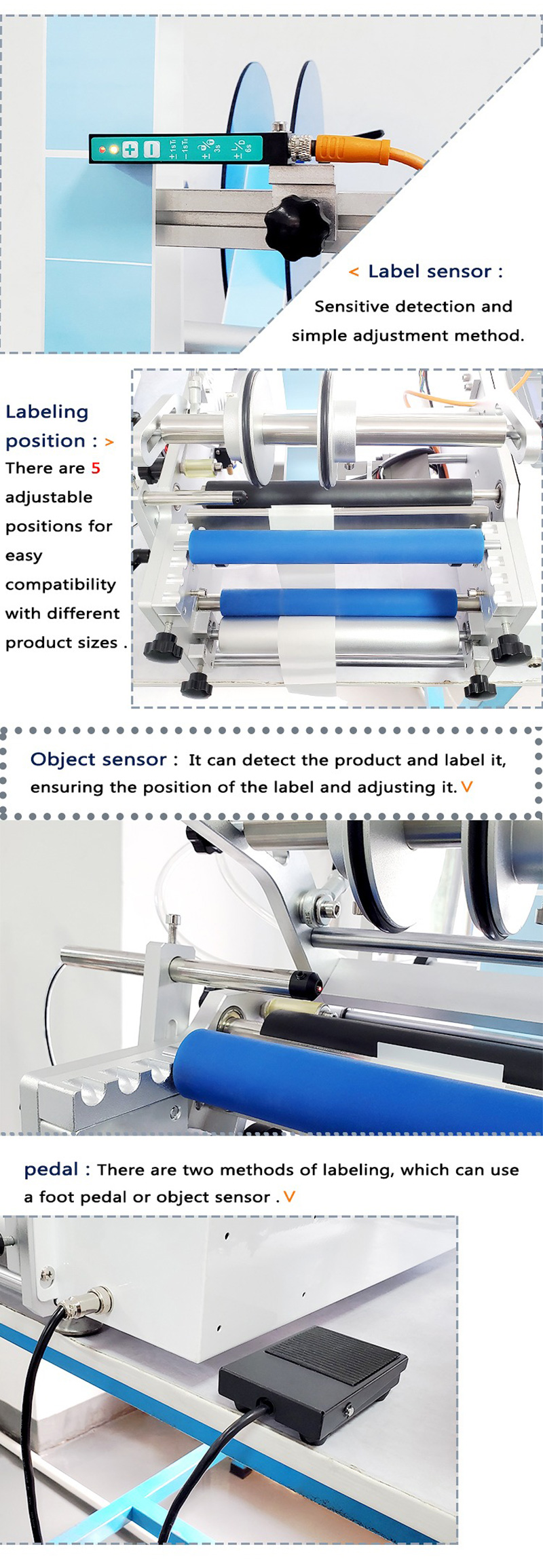

There are two labeling control methods: manual/automatic: workers can choose to use sensors or foot pedals to achieve labeling control according to their needs; set manual and automatic control button, the length of the label dispensed can be adjusted arbitrarily
Optional functions and components: ① Hot coding function; ② Special label sensing electric eye.
