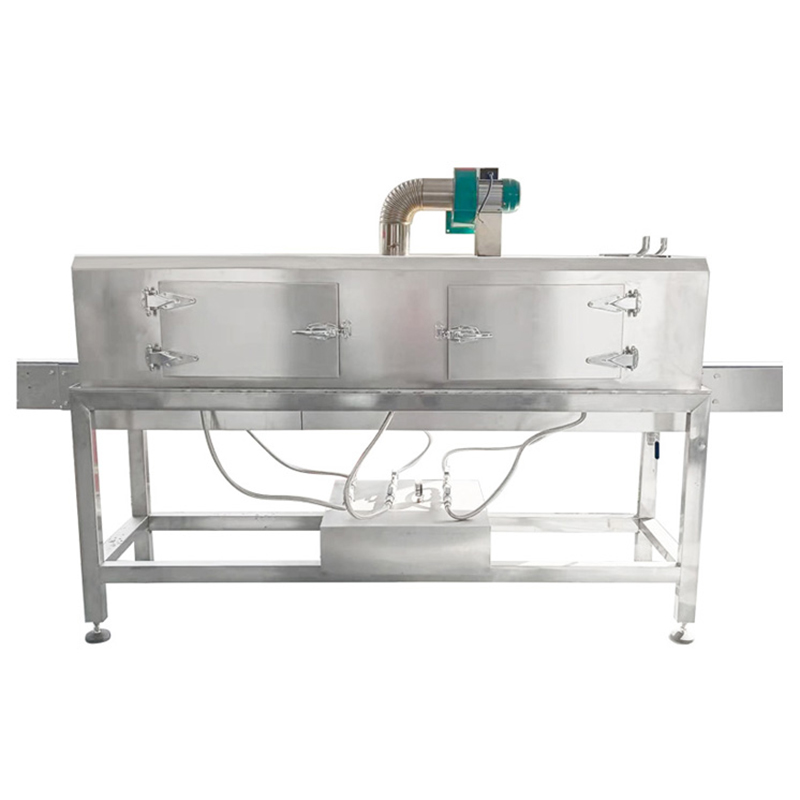

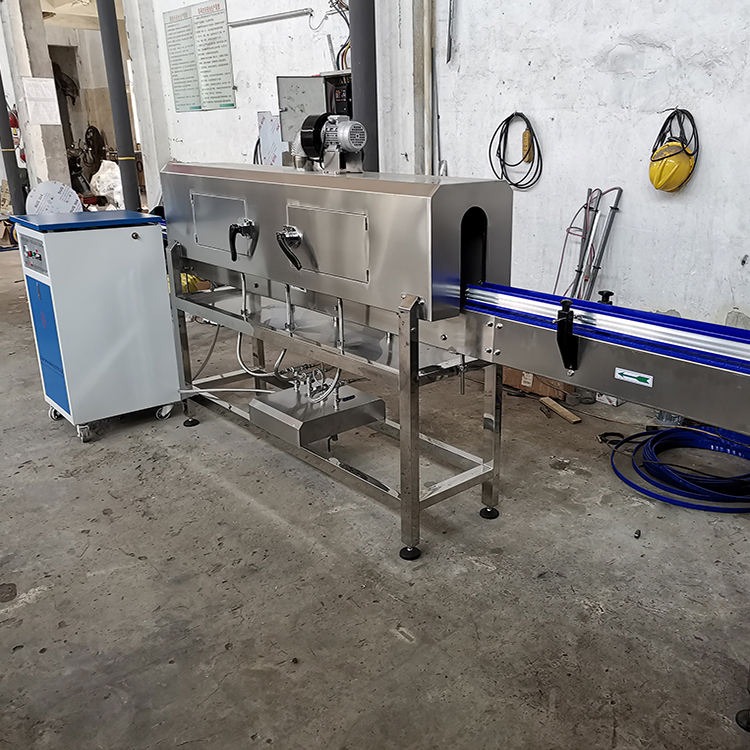

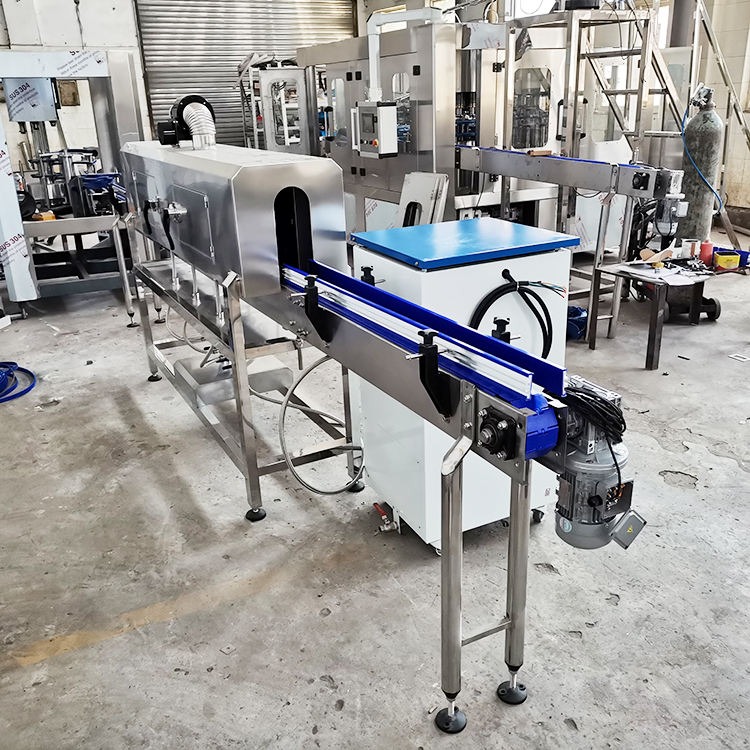

VK-SST Steam Tunnel For Shrink Sleeves
The VK-SST Series of Stainless Steel Steam Shrink Tunnels are easy to operate, easy to maintain and easy to clean. They are designed to efficiently shrink full body shrink bands on almost any container type and almost any shrink film material. The low pressure steam drum distributes steam evenly with a with an integrated steel tube design. There are steam jet tubes in each section of the tunnel which are adjustable for both height and steam output. The shell of the tunnel is constructed of #304 Stainless Steel and there is also a stainless steel water collecting plate to collect the condensated water. The machine’s stainless steel, water-proof design makes it easy to clean and maintain.
Steam heat shrink tunnels can shrink different containers in different shape such as bottles, cans, jars, cups, tubes, tanks etc more easily and in lower temperature than electric hot air or wind shrink tunnels because of the properties of steam.
Usually shrink tunnel is used for shrink containers after filling on different production lines such as water bottle filling line as the filling liquid inside the bottles absorb the heat inside the containers. Steam shrink can provide an instant shrink force on the shrink label film to shrink the target container instantly.
Function:
1. In the case of different and irregular round bottles, square bottles and flat bottles etc, the new-style steam shrinking oven is easy to adjust and maintain. It has an even shrinking.
2. The distribution of Iow-pressure steam drum and spouting way of steam are uniform and designed with seamless tube.
3. The nozzle is divided to be adjustable three segments and the height, position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect.
4. The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also complies with the international safety standard.
5. The stainless steel defrosting tray collects condense water.
6. The whole machine adopts the water-proof design with the convenience of easy operation and low maintenance.
7. Special Manufacture: Based on the original configuration, double layer holding furnace is manufactured to take effect on energy saving and environmental protection.
Technical Parameter:
| Model | VK-SST |
| Label Type | PVC/PET/OPS/PE/PLA shrinkable label |
| Heat Shrink Type | Water Vaporous Steam Heat |
| Steam Source | Electric/Diesel boiler or Generator |
| Product Shape | Round/Oval/Flat/Square/Triangle/Rectangular,etc. |
| Product Material | PET,PP,PE,HDPE,Glass,Metal etc. |
| Product Dimension | φ：Max 150mm H：Max 350mm(customizable) |
| Label Thickness | 0.025mm ~ 0.13mm |
| Machine Material | SUS 304 |
| Main Machine Size | 2000L*500W*2100H(mm) |
| Power | AC 3P 380/220V 50/60Hz 0.75KW |
Features:
1. Equipped with water and steam separator to make steam vaporous
2. Equipped with steam controlling valves system to control the steam pressure
3. Top suction steam chimney built for clean discharge steam
4. Visible window to check the steam shrink performance
5. Steam exhaust fan frequency controllable
6. Double Layer Inner Structure to keep steam feeding and steam pressure stable
7. Width, Height, and Angles Adjustable Multiple Steam Nozzle Bars to fit products
8. High Quality Steam Pipes, High performance and durable use
9. Safety Doors Switches, Cutting off hot steam source when doors are not closed
Advantages:
Adopt high quality and much thicker stainless steel materials for a much better and solid tunnel body frames for foundation of a durable steam tunnel.
Multiple layer interior structure to always keep steam pressure in steam tunnel Chamber .
Top Steam tunnel controllable chimney exhausting channel built for excellent control of waste steam exhausting from top to realize clean and efficient steam exhaust. Customer never need to worry that the waste steam is running everywhere out of the tunnel entrance and exit to humidify or pollute their warehouses during tunnels are working.
Multiple functions are integrated on VKPAK steam tunnels. Frequency of tunnel top blower fans controllable, speed of tunnel conveyors controllable, steam pressure controllable, steam in feed volume of different steam nozzles controllable, steam nozzles angles, widths and heights adjustable, steam bars fast and easy adjustment available for changing different products with different sizes.
High quality steam tunnel window door hinges and handles, friendly and easy to use, durable long-life without changing.
High quality heat resistant steam transfer pipes and steam spreading bar nozzles for a better steam shrink performance
On our high-end model of steam shrink tunnels, are integrated with water vaporous steam filter and separator, steam controlling valves systems, tunnel safety switch locking doors, etc.
More About Steam Shrink Tunnel
What is a steam shrink tunnel?
A steam shrink tunnel is used in packaging that utilizes steam to heat shrinkable film wrapped around a product. Steam shrink tunnel offers precise and uniform heating, allowing the shrink sleeves to seamlessly conform to the product’s shape. By using steam, the steam shrink tunnel can efficiently adjust temperature and steam flow to match the specific requirements of various shrinkable films, ensuring a high-quality finish.
How does a steam shrink tunnel work?
A steam shrink tunnel is a process that employs steam to shrink a film around a product. The steam is heated to a specific temperature and then applied evenly to the wrapped product while it passes through a tunnel. This causes the film to shrink and tightly adhere to the product’s shape, resulting in uniform shrinking. This method is frequently used in various industries due to its accuracy and efficiency.
What’s the inside temperature when a steam shrink tunnel is working?
When using a steam shrink tunnel, it’s important to keep in mind that the temperature inside can vary based on the specific shrink film material being used. This temperature range is typically between 60°C (140°F) and 100°C (212°F), but it could be even higher depending on the material. Materials like PVC, OPS, PETG, and PLA have different shrink initiation temperatures, so adjusting the steam temperature accordingly is important. By carefully controlling the temperature, you can ensure that the shrink is consistent and effective for your product and packaging needs.

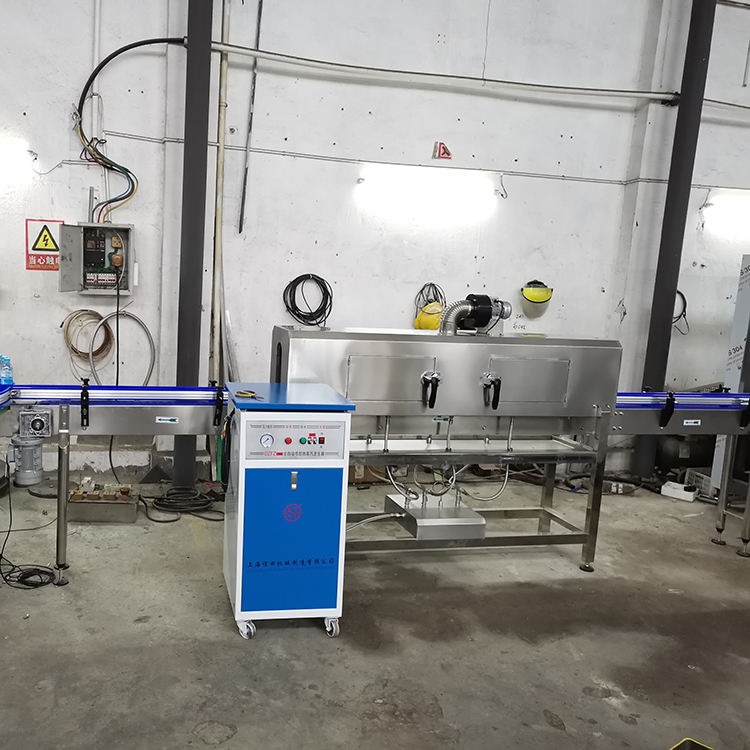

The components of the steam shrink tunnel
The components of a steam shrink tunnel each have specific functions that create a system capable of heating shrinkable film around a product. Here’s a breakdown of the primary components and their roles:
1. Steam Generator/Steam Boiler: Responsible for producing steam in the shrink tunnel. Controlling the temperature and pressure can ensure the steam is consistent and appropriate for the shrink sleeves.
But When steam is created at high pressure, a pressure-reducing valve (PRV) is used to regulate the steam pressure to a suitable level for the application. The PRV reduces the steam pressure to an average level before entering the steam shrink tunnel. This ensures that the steam pressure is consistent and within the safe and efficient operating range for the shrink tunnel, allowing for uniform shrinkage of the packaging material. The pressure-reducing valve maintains optimal performance and safety, as high-pressure steam could damage the system or create uneven shrinkage.
2. Conveyor System: Transports the products through the tunnel at a controlled speed, exposing them to steam for optimal shrinkage.
3. Steam Nozzles: Directs the steam onto the product. They can often be adjusted for precise control over where the steam hits the shrink sleeve, ensuring even shrinkage.
4. Heating Chamber: Houses the steam and maintains the temperature within the required range for shrinkage. Its design ensures even heating of the product.
5. Insulation: Keeps the heat within the tunnel and minimizes the temperature loss, ensuring energy efficiency.
6. Heat-resistant Pipes: connect the steam generator or boiler to the shrink tunnel. They transport steam from the generator or boiler to the tunnel, which is then used to shrink the film. These pipes are typically made of stainless steel or other heat-resistant alloys, with the material and design chosen based on the system’s pressure rating, temperature range, and steam flow rate. In addition, the pipes are insulated to ensure that the heat is contained and that condensation is prevented, ensuring that the steam reaches the tunnel at the correct temperature and pressure.
Together, these components allow the steam shrink tunnel to precisely control the application of steam to shrink sleeves, accommodating a wide variety of product sizes, shapes, and materials. Careful consideration of each component’s function and settings is vital to achieving a successful shrinkage process.
Essential Considerations Before Purchasing a Steam Shrink Tunnel
When purchasing a steam shrink tunnel for your packaging needs, you must consider several crucial factors to choose the appropriate one. Here’s a guide to the crucial considerations:
1. Steam Source Compatibility: Determine whether the tunnel will connect to a steam generator or boiler and ensure compatibility. Such as electricity or gas, ensure it aligns with your facility’s capabilities. Assess the requirements for pressure reduction if steam is generated at high pressure.
2. Tunnel Dimensions: Consider the size of the products you will be processing and ensure that the tunnel aperture and conveyor system can accommodate these dimensions.
3. Temperature Requirements: Understand the shrinkage temperature requirements for the specific materials you use (e.g., PVC, OPS, PETG, PLA) and ensure the tunnel can reach and maintain those temperatures.
4. Conveyor System: Consider the types of conveyors that will best suit your product sizes and shapes, such as steel wire mesh, roller conveyors, or stainless steel chain plates.
5. Steam Distribution: Check the tunnel’s steam distribution system to ensure even steam application across the products. This may include considerations for steam nozzles, baffles, or other steam-directing components.
6. Compliance and Safety: Verify that the tunnel complies with relevant industry standards and regulations and includes safety features such as pressure relief valves.
7. Budget and Supplier Support: Lastly, assess the overall cost, including installation and ongoing maintenance, and ensure that the supplier offers adequate support and training.
By carefully evaluating these factors, you can select a steam shrink tunnel that seamlessly integrates into your production line and efficiently meets your packaging needs.
Conclusion
A steam shrink tunnel is an essential tool in modern packaging technology that uses steam to create a perfect shrink wrap around products. It consists of various components, including a steam generator/boiler, conveyor system, steam nozzles, and control panel, working together to provide precise heating for different materials such as PVC, OPS, PETG, and PLA. The temperature inside typically ranges from 60°C to 100°C. Considerations for purchasing one include understanding requirements like steam source compatibility, tunnel dimensions, temperature needs, conveyor system type, and budget considerations. This equipment is vital for businesses aiming for efficiency and quality in their packaging process.
