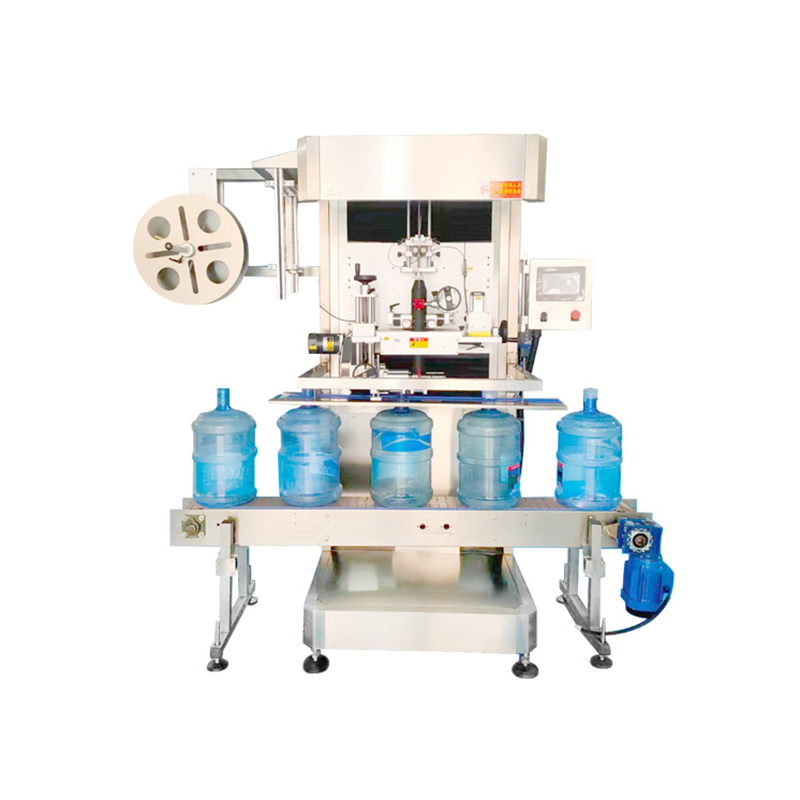

VK-SSL-5G 5 Gallon Cap Sleeve Label Applicator Machine

VK-SSL-5G 5 Gallon Bottle Cap Sleeve Labeling Machine

This is a 5-gallon bottle neck sleeve labeling machine, along with the sleeve label shrink tunnel, which uses a servo motor to control the cutting and positioning of the tag. the fully automatic PLC and touch screen make the machine smarter and easier to operate. The use of efficient label positioning module to ensure that labeling accurate, fast and stable.

Special holder holding style, stable label guiding. Adopt superior magnalium alloy materials, anodizing handling on the surface, more clean, and resistant to corrosion. Synchronization driving cutting systems, make the cutting keep along life span, low cost. Adopt HMI controls, Chinese and English can be chosen, easy to operate.

Output Speed: 20-50 pieces/minute depends on label and bottle size

Dimension: 1800(L)x950(W)x1960(H)

Different countries and regions have different environments and different transport conditions. To ensure that dust and other impurities do not contaminate the 5 gallon bottle mouth and cap, we designed the 5 gallon bottle neck sleeve labeler. When the bottle mouth is completely covered by the PVC label, the end user can be guaranteed to drink 5 gallons of clean and hygienic pure water. At the same time, it can also provide the brand image of 5-gallon waterworks.

Function:

1. The latest upgraded machine has a more simple design and low maintenance cost.

2. The machine structure of the machine is 304 stainless steel, the sensor is arranged in the most reasonable position, and the length of various labels can be adjusted and adapted automatically through the touch screen.

3. The machine is made of high-strength material, waterproof and shockproof.

4. The improved cutting tool structure ensures that each cutting label is smooth and efficient, the cut is smooth and smooth, and the contraction of the colleague label is more beautiful.

5. The fifth generation modular model can change the label in 8 minutes without affecting the efficiency of the production line.

6. The parts are made of international well-known brands with higher stability and reliability.

Technical Parameter:

Machine Model	VK-SSL-5G
Production Capacity	1500-3000 bottles per hour
Suitable Cap	3 gallon / 5 gallon normal cap
Voltage	380v 50hz
Main Power	2.2kw
Applicable Length of Label:	40mm-160mm (specially made)
Applicable Thickness of Label:	0.03mm-0.13mm
Dimensions	1800(L)x950(W)x1960(H)
Weight	800kg
