High-speed labeling machine always has a kind of charm, it can play an important role in the whole filling line. Our VK-SSL-400 is such a fully automatic high-speed labeling machine. It has a production capacity of 24000 bottles per hour and completes the work of labeling and shrinking at a speed indistinguishable to the naked eye. Even if it runs continuously for 24 hours, it can be competent, and the machine can fully meet the production needs of high-speed water filling line through configuration and structure optimization. If you are also looking for such a labeling machine, please leave your inquiry now.

Function:

1. It is suitable for all kinds of liquid packaging industries, such as fruit juice, tea beverage, liquid milk, mineral water, condiment, beer, energy drink, etc., with high label accuracy and can highlight the bottle type after shrinkage.

2. The mechanical structure is very stable: the whole machine adopts stainless steel protective frame and aluminum alloy frame, which runs smoothly and has little vibration.

3. It is compatible with round bottle, square bottle, oval bottle, etc., and can also be used for bottle mouth and bottle body.

4. Within a certain range of specifications, there is no need to replace the cutter holder. The foundation is beyond the scope of the specification, and the replacement of the change can be completed quickly in only 5 minutes.

5. Wide range of application: suitable for food, beverage, cleaning products, medicine, wine bottles and other plastic bottles, glass bottles, PVC, PET, PS, Tin can and other containers.

6. High positioning accuracy of the label: fully mechanical transmission design, all kinds of label thickness above 0.030MM are applicable, the inner diameter of the film roll can be adjusted in the range of 5-10.

7. Low maintenance cost: this machine adopts abandoned standard cutting blade, which is easy to replace.

8. Rest assured after-sales service: all kinds of spare parts are available in the warehouse, which can be provided at any time, and experienced engineers provide technical support for you.

9. The shape is exquisite and beautiful, the overall structure is strong, and it is lighter and more flexible in use.

10. Exclusive design of reciprocating label cutter, smooth action, tool life doubled.

11. Simple central column positioning, easy to change specifications, easy for operators to use and easy to master.

12. The machine is tested for 72 hours of stability before leaving the factory to ensure the quality of the machine before delivery.

Technical Parameter:

Model	VK-SSL-400.
Power (kw)	4.0.
Voltage (v)	AC380V 50HZ.
Production speed (b/min)	300-400.
Suitable for body diameter range (mm)	Φ 38-Φ 120.
Applicable label length (mm)	30mm 220.
Applicable label thickness (mm)	0.03 to 0.13.
It is suitable for free adjustment of paper tube inner diameter (mm)	5"~ 10".
Form factor (mm)	2600L*900W*2000H
Weight (kg)	380

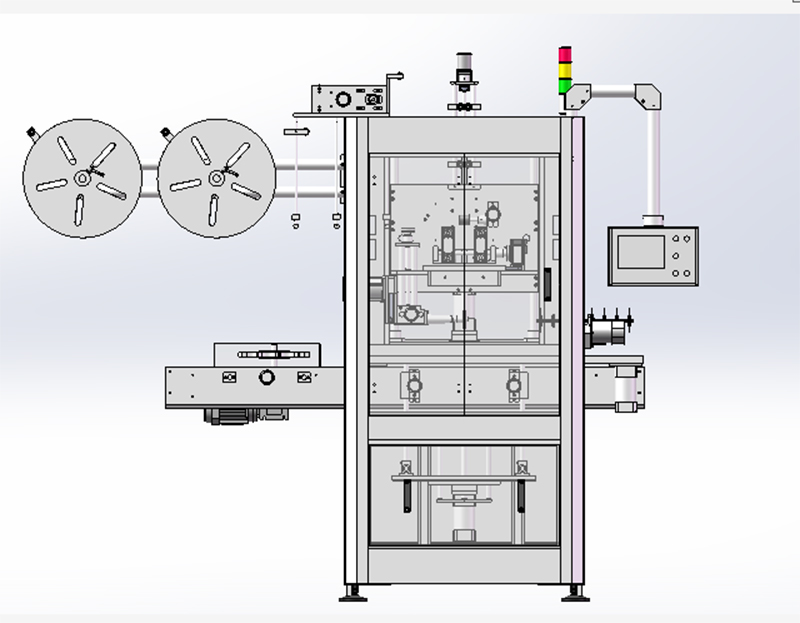

Drawing:

Features:

1. All-Cover type stainless steel host machine: The whole machine is waterproof as well as rustless.

2. Adjustable cutter head: Uniquely cyclotron cut-off, double sided cutting edge with a long service life.

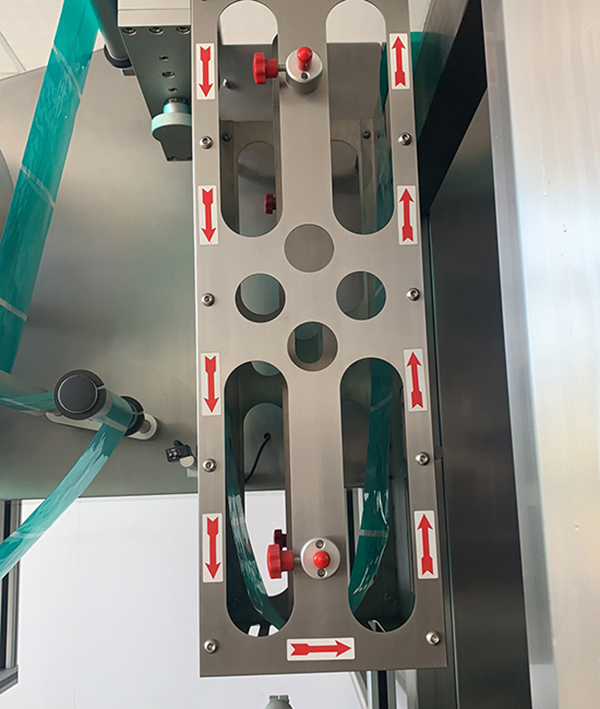

3. Single positioning centre uide pillar: A more stable label delivery.

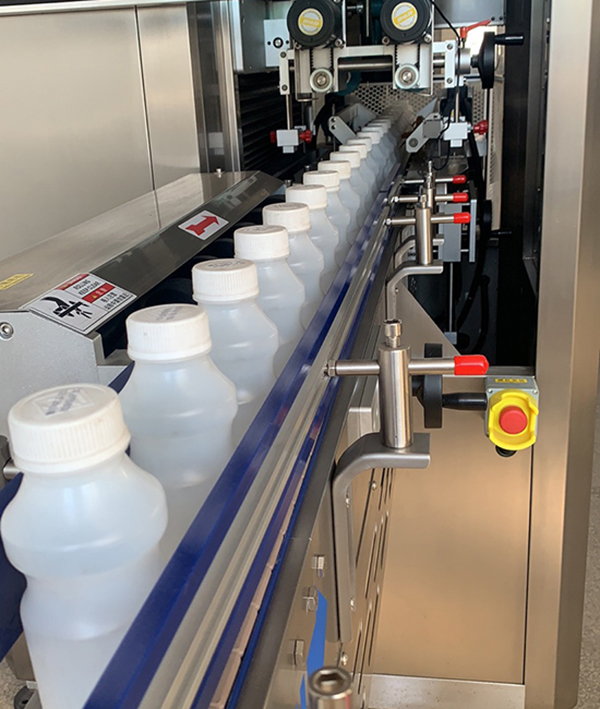

4. Synchronous bottle divider: A more stable transmission for bottle.

5. Bottom set of label brush: A more precision for casting label.

6. Label-Controlling electric-eye shelf: Unquie combination of tail and electric-eye to improve the precision for cutting off the membrance materials.

7. Push-button control cabinet: A more humanized operation.

8. Independt feeding material shelf: The position of the material shelf is optional at will.

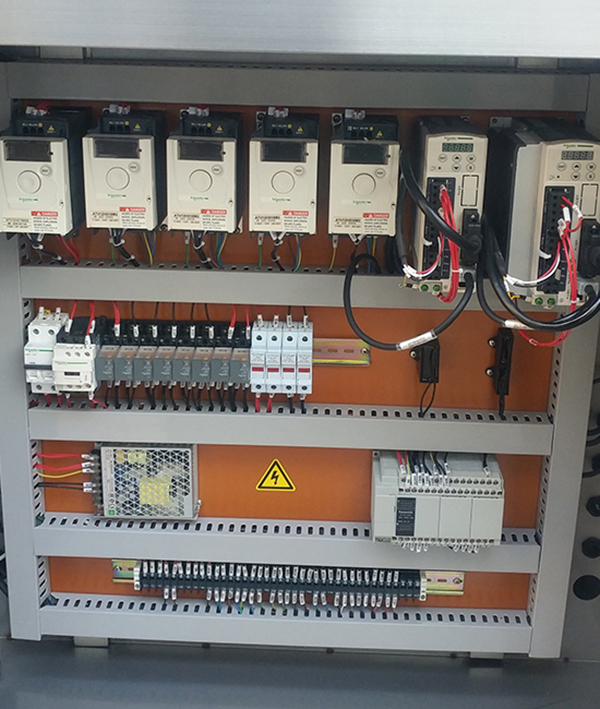

9. Electrical appliance Configuration Specification: It adopt PLC programmable controller, improved servo motor, servo driver, frequency converter and transducer; besides, it adopt the positioning module to ensure the casting label precise, rapid and stable.

Advantages:

(1) Two holders for two rolls of sleeves labels.

(2) High speed of servo system, Machine works Stable and reliable.

(3) Elegant appearance, compact structure. Easy operation.

(4) Simple mandrels holder, easy parts changing process.

(5) Special cutter design, smoother cutting, quick and easy blades replacement.

(6) Sleeve inserting only when bottles come, no sleeves wasting.

(7) Skilled program in PLC makes machines working fluent.

(8) High eligibility of sleeves inserting.

(9) The frame is made of 304 stainless steel, no rusting problem.
