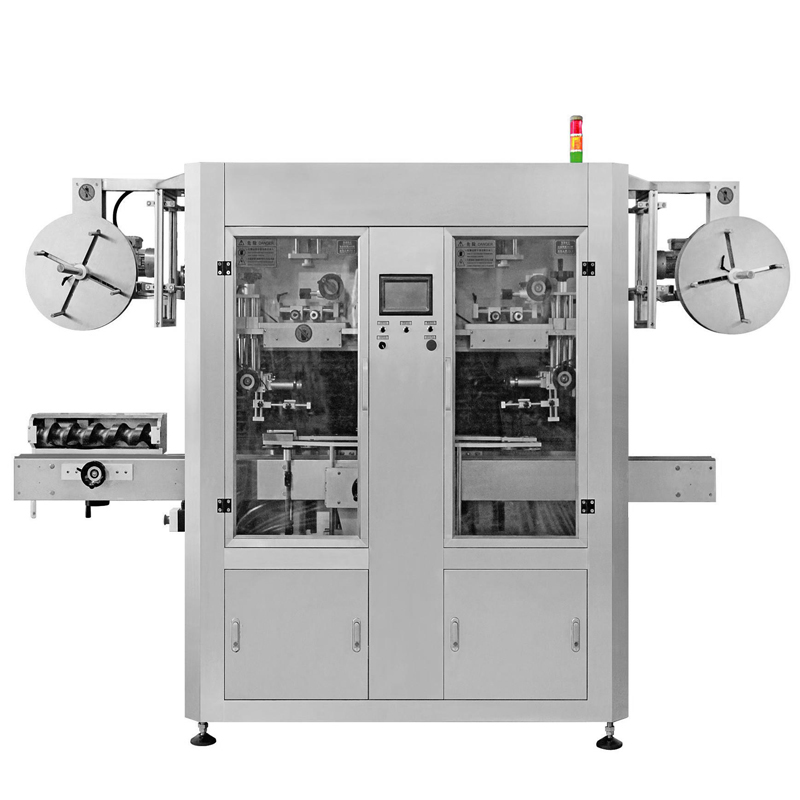

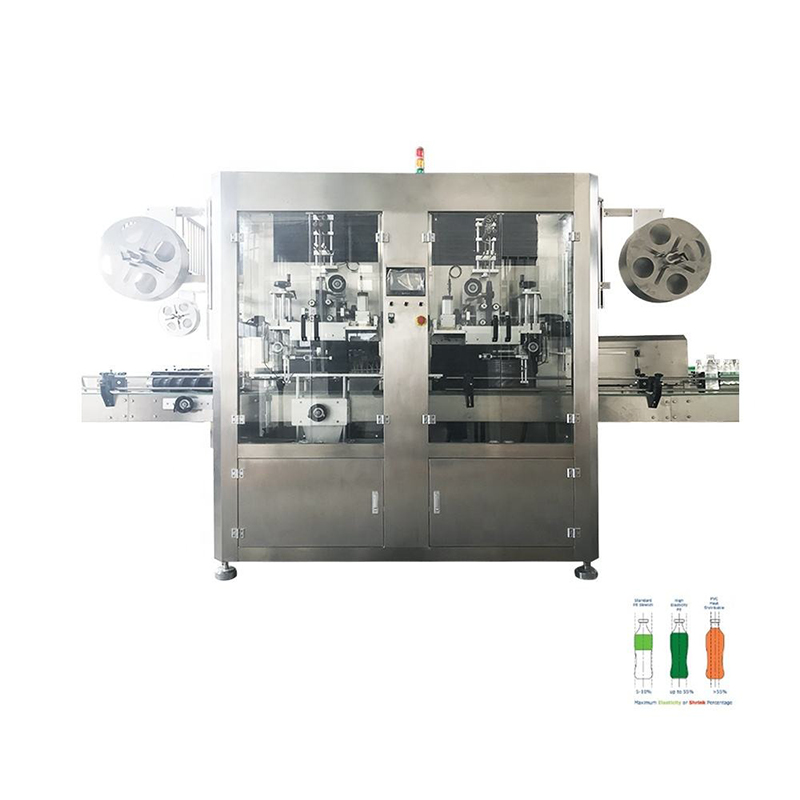

The Automatic Double Heads Sleeve Labeling Machine adopts international advanced technology, cover the circle label on PET bottle / glass bottle, then heat shrinking to fix on the position which bottle body and bottle neck. It is controlled by micro-computer and automatic detection. It is suitable for both PET bottle and glass bottle, The sleeve shrink label material can be PVC or PET material.

Function:

1. Conveyor motor with encoder: Synchronous stepless belt adjustment, more stable at high speed;

2. Full cover type 304 stainless steel main frame: waterproof, rust-proof, stable structure;

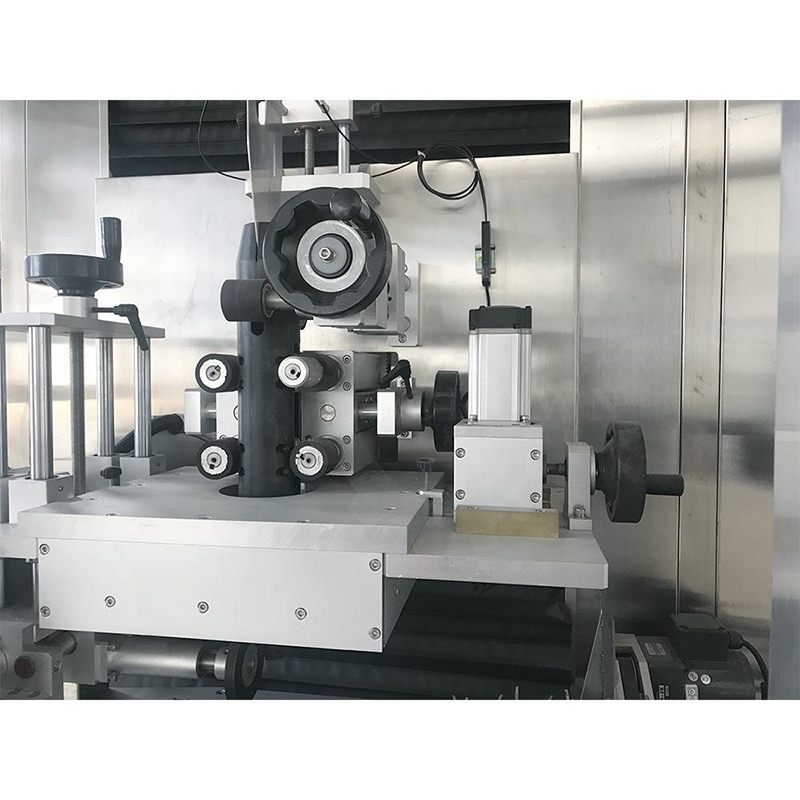

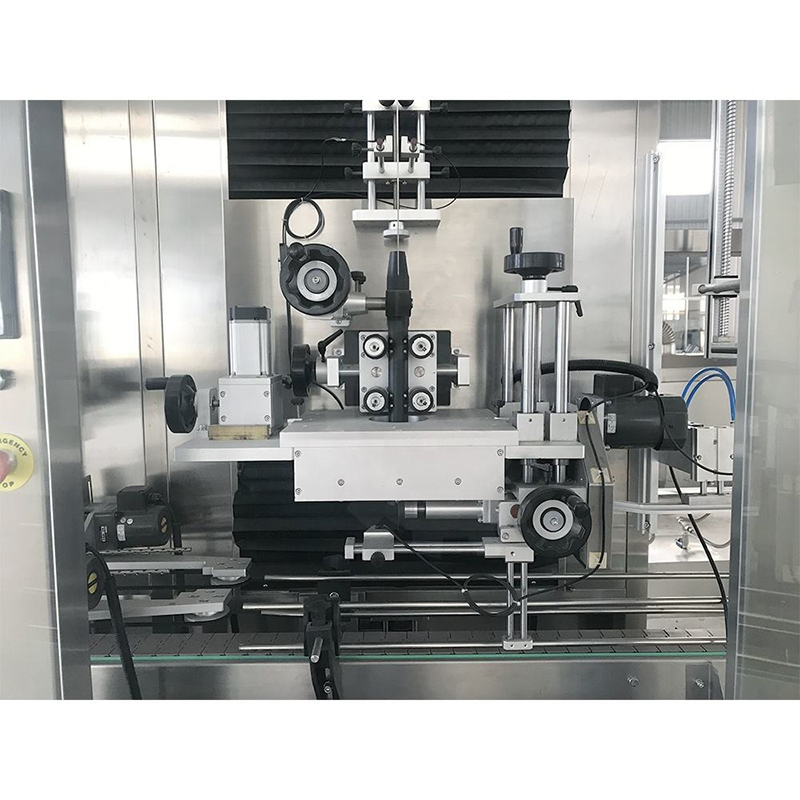

3. No replacement, no debugging tool holder, revolving cut type Cutter head (two groups): long life, convenient and fast tool change, smooth and beautiful cut surface;

4. Two sets of single machines synchronously drive six-point positioning center guide column (D350/450 is 4-wheel drive 8-point positioning center column): label Stable, accurate and smooth delivery;

5. Tail-shaped label control electric eye holders (two groups): easy to adjust the position of the label, and the film material cutting precision is higher;

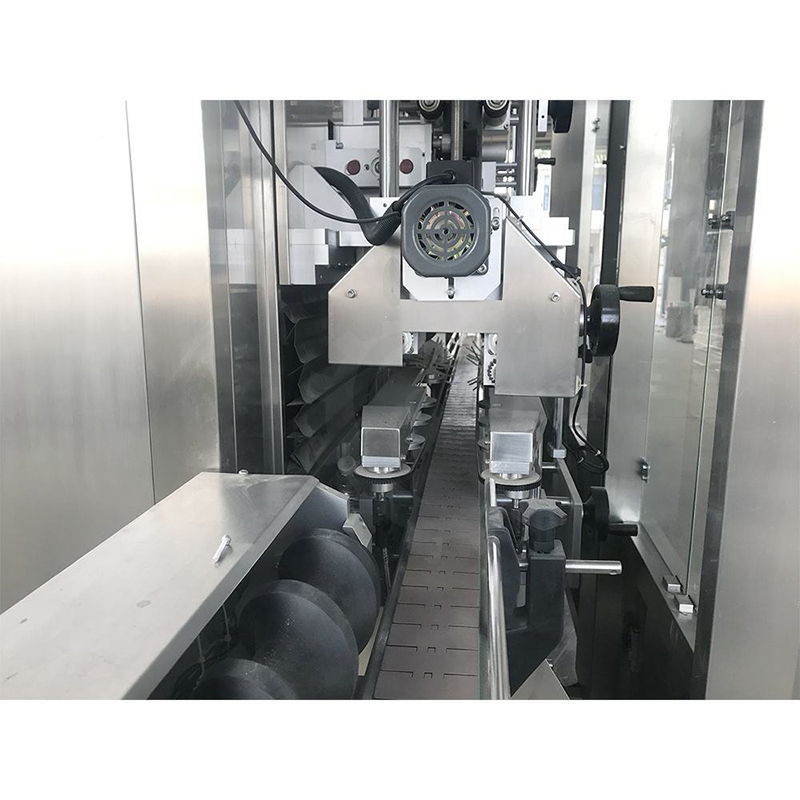

6. Synchronous bottle divider: the bottle is conveyed smoothly and evenly, ensuring a long time Efficient and stable work;

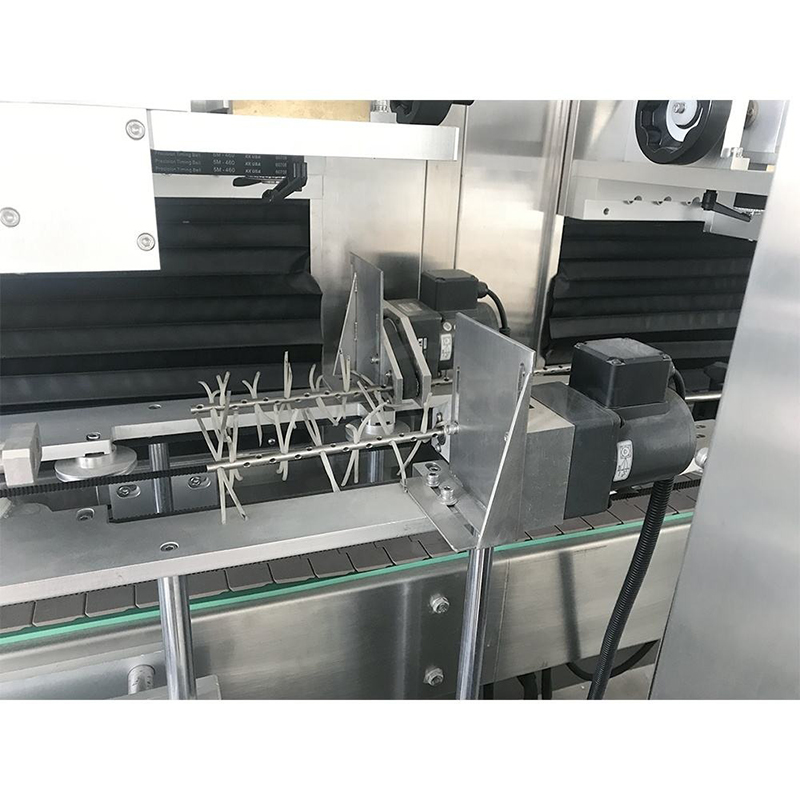

7. Single machine synchronous drive brushing (two groups): accurate marking, no deviation, no flying;

8. Bottle detection, label control electric eye (two groups): imported high-precision photoelectric sensor, label segmentation Accurate and error-free, no blocking or missing labels;

9. The industry’s first synchronous constant micro-tension feeding rack (two sets): to avoid inaccurate label segmentation caused by spring resistance;

10. The industry’s first and improved delivery Standard drive group (two groups, D350/450 is four-wheel drive): Avoid label feeding misalignment and blockage caused by asymmetric stepping caused by sudden large moments when sending labels at high speed;

11. Double heads are fully automatic The heat shrinkable film sleeve labeling machine can be equipped with an independent material supply rack and a freely positioned material rack;

Technical Parameter:

Machine model		VK-SSL-250D
Machine	Capacity	300pm (sleeve height 10cm) each head
	Size L*W*H	2800*850*2000mm
	Weight	800Kgs
	Powder supply	AC3-Phases 220V or AC3-Phases 380V
	Eligibility percent	≥99.5%
	Total powder	3.5KW
Shrinkable labels	Materials	PVC, PET, OPS
	Thickness	0.035-0.05mm
	Labels height	40~300mm
	Flat width	Max 210mm
	Inner Dia. Of Labels roll	76mm or 127mm
Bottles to pack	Height	Max 320mm
	Diameter	Ø28- Ø125mm
	Material	Glass, Metal, Plastic
	Shapes	Round, square, flat, curved cup-shaped bottles

Drawing:

Features:

1. Whole machine adopt qualified stainless steel and good-quality of aluminum alloy, compact And reasonable fracture, convenient to adjust.

2. The label roll frame of shrinkage film with adjustable device, convenient to adjust according to Differ volume label 5~10"paper tube.

3. Simply installation, then can convenient for square and round bottle.

4. No need of instrument, rotary mechanism is convenient to adjust, apply to different bottle Type.

5. Unique sleeve labeling method, adopt pressing sleeve labeling method, not only convenient But also reasonable.

6. Control the feeding system automatically, and flat the shrinkage film and adjust strain Simultaneity.

7. Unique design knife plate, in the determined range, can change the knife base. Knife changing Quickly and conveniently.

8. Middle guide-pole clip system, mould changing quickly, no need any instrument.

9. Label location system, can promote and demote in-phase adjust location according to specific Bottle type requirement.

Advantages:

1. The new cutter of our double head labeling machine is designed to be driven by servo motor, with high speed, stable and accurate action, flat incision and beautiful shrinkage. VKPAK double head shrink labeling machine with the label synchronous positioning mechanism, the accuracy of incision positioning is as high as 1mm.

2. VKPAK double head shrink labeling machine has reasonably optimize the PLC program and add photoelectric delay, card mark, high mark and other functions.

3. Mechanical transmission belts of our double head labeling machine are imported products with higher wear resistance and longer life.

4. Frequency converter, servo motor, servo driver and other electrical of VK-SSL-250D double head shrink labeling machine.

5. The bottle separation screw, positioning belt and conveying chain plate of VK-SSL-250D double head shrink labeling machine adopt synchronous adjustment mode, and the speed adjustment is easy operation.

6. The simple central guide post positioning of our labeling machine makes it easier to change the specification, more convenient for the operator to use, and the operation is simple, easy to understand and learn.

7. The frame, unit, screws and other stainless steel parts of shrink labeling machine are made of 304, which is more durable and longer use life.

8. Flexible operation on matching various shapes of bottles and make sure easy format change of spare parts.
