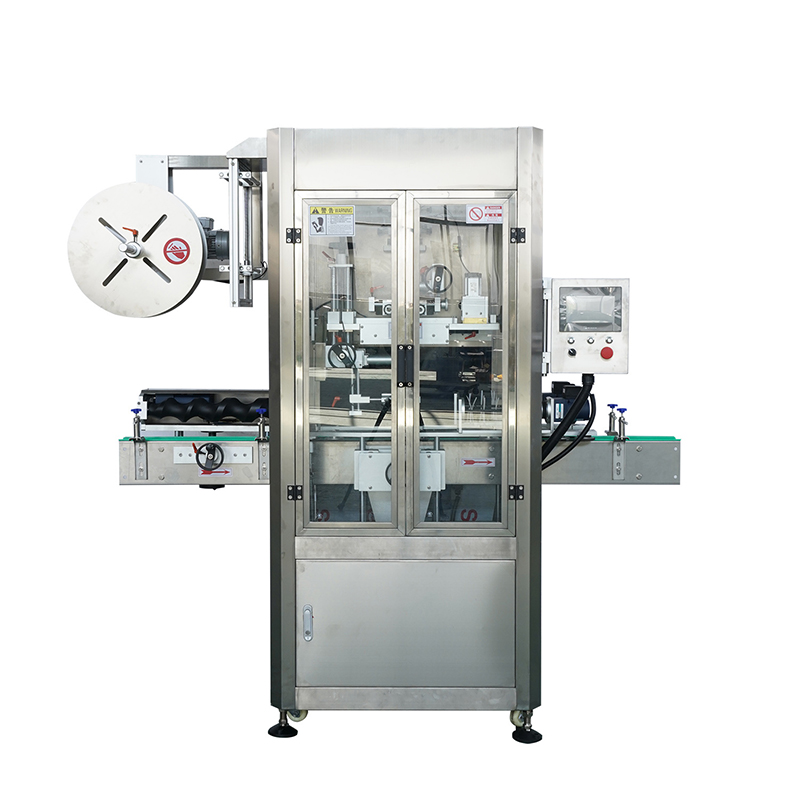

Many customers prefer shrink sleeve label when producing bottled water or bottled drinks because shrink sleeve labeling machine has smaller size, lower machine price and lower maintenance cost at the same capacity. VK-SSL-250 is a fully automated sleeve labeler with medium production capacity (15000BPH) that can efficiently do label applicating work within your limited priority budget. Apart from consuming label, it has no other consumables, greatly reducing your operating costs.

Function:

1. Synchronous mechanism transmission, any transmission belt replacement can be completed quickly, compared with the traditional multi-layer arm type (replacement and repair takes more than six hours), easy maintenance, simple maintenance, will not affect production.

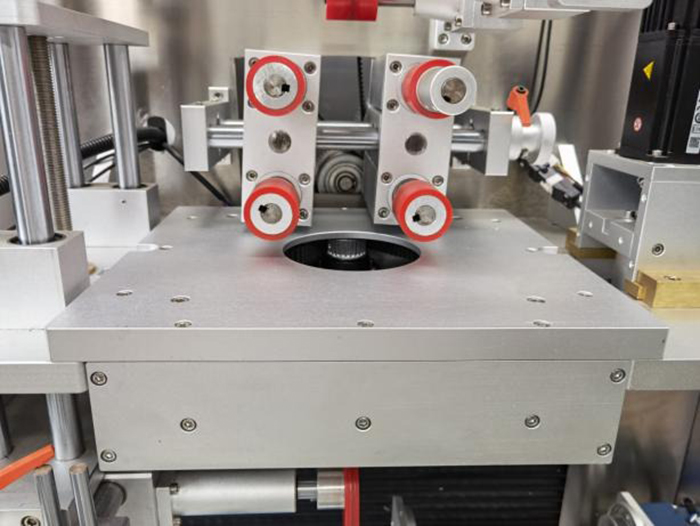

2. Reasonable cutter seat design, suitable for diameter 30mm~130mm bottles, cutter seat completely replacement-free, debugging-free, exclusive use of light-touch man-machine, that is, automatic search origin positioning, safe and convenient, leading similar products.

3. Single shrink label feed plate design, moderate height, easy to install the label; microcomputer automatic calculus, no setting, no adjustment, as long as a slight press, the label can be automatically detected and automatically positioned; the label is absolutely fast and labor-saving, and the cutting position is absolutely accurate.

4. Label feeding mechanism: power synchronous tension control supply label, supply capacity 180m / min, coil label supply plate 500mm, paper tube inner diameter 4′, 8′, 10′, stable tension mechanism design to ensure the accuracy of cut label length, stable and fast supply, and ensure the accuracy of label delivery and shooting.

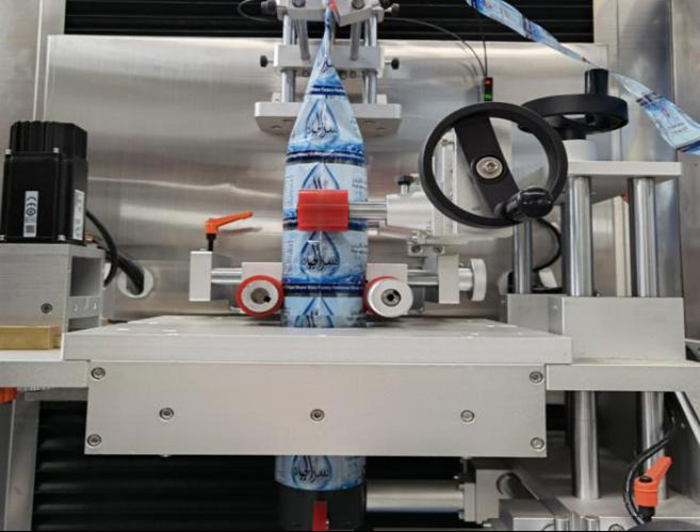

5. The new cutter design uses servo motor drive, high speed, stable and accurate action, smooth incision, beautiful shrinkage, and with the label synchronous positioning mechanism, the incision positioning accuracy is as high as 1mm.

6. Multi-point emergency stop button, emergency stop button can be installed in the appropriate position on the production line, so that online production is safe and production is smooth.

Technical Parameter:

Sleeve Labeler Model	VK-SSL-250
Production speed:	250BPM (in the case of round bottle / filling / label length within 150mm).
Bottle diameter range:	bottle diameter 25-50mm is suitable for 4 cutters, bottle diameter 50-95mm is suitable for 6 cutters, bottle diameter 95-125mm is suitable for 8 cutters.
Applicable label length:	designed and made according to the label length provided by the customer (including 5mm blank segment).
Applicable label thickness	0.035 ~ 0.08mm.
Applicable label material:	PVC / PET / OPS.
Suitable for label paper tube inner diameter:	5"~ 10"
Power supply:	3-phase 380V, 50HZ.
Power consumption:	5Kw.
Use steam pressure:	0.2~0.5MPa.
Steam consumption:	100kg/Hr, can save a lot of cost.
The qualified rate of standard set:	More than 99.9%.
The operating efficiency of a single machine:	98%.
Stable continuous running time:	more than 24 hours

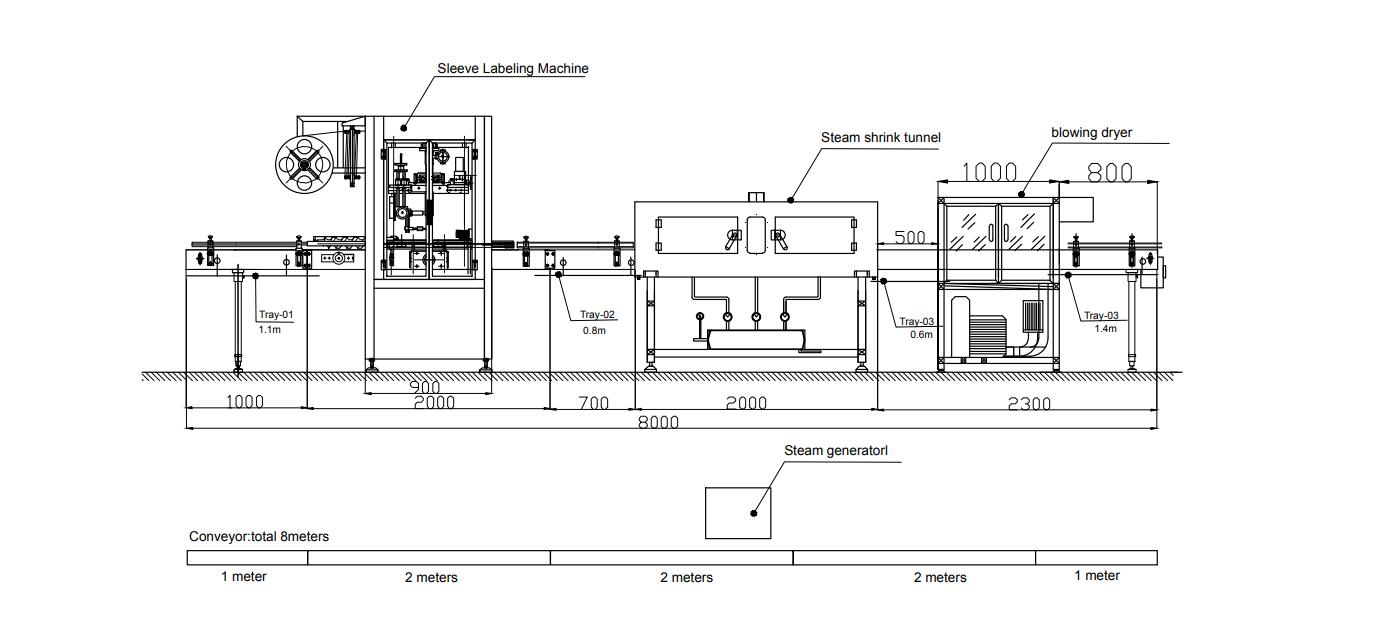

Drawing:

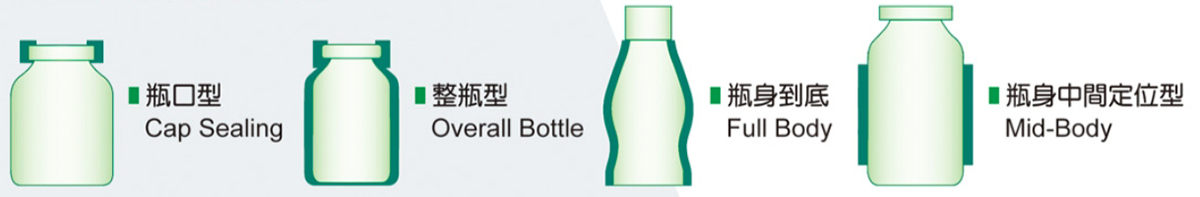

Label Location:

Features:

1, The machine is made of stainless steel and high quality of aluminum alloy, the reasonable, intact frame,

2, The feet bolt is not needed, easy to move suitable for different place.

3, The shrinkable film roll with adjustable locking gear, can be adjusted according to different roll 5'-10'

4, The applicable bottle is the machine square bottle and round bottle

5, Without tools, the driven machinery can be adjusted to meet different bottle size

6, Particular inserting label ways, i.e. inserting label, it is reasonable and convenient.

7, Full automatic feeder, the flat shrinking and tension are adjusted together.

8, It is assured to low error that there is inspection of rolling label cut.

9, Particular blade design, blade base can be change by free, changing blade quickly and conveniently.

10, It is easy to change the central clamping device without any tools.

11, Oriental rolling label device can be lifting synchronal.

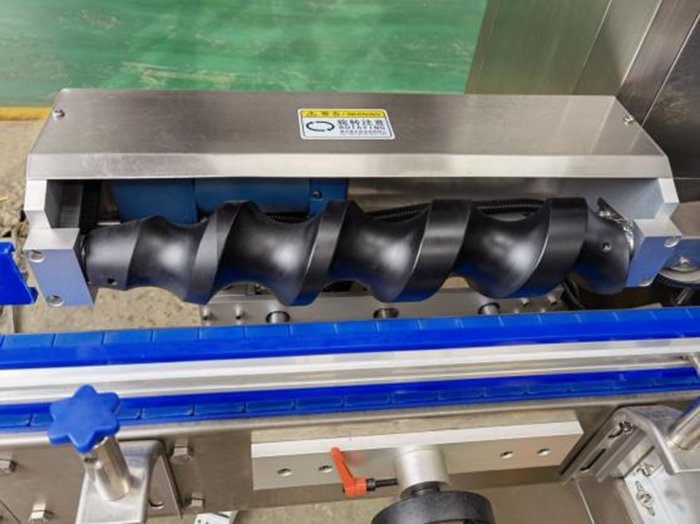

12, The separating bottle screw, oriental belt and conveyor are adjusted synchronal.

13, Adopting ANCHUAN servo motor made in JAPAN and sensitive photo electricity, to insure the precision of cutting label.

14, Stainless steel electric controller, adopting Mitsubishi PLC made in Japan

15, Adopting advanced man-machine automatic controlling technology, main component adopts famous brand.
