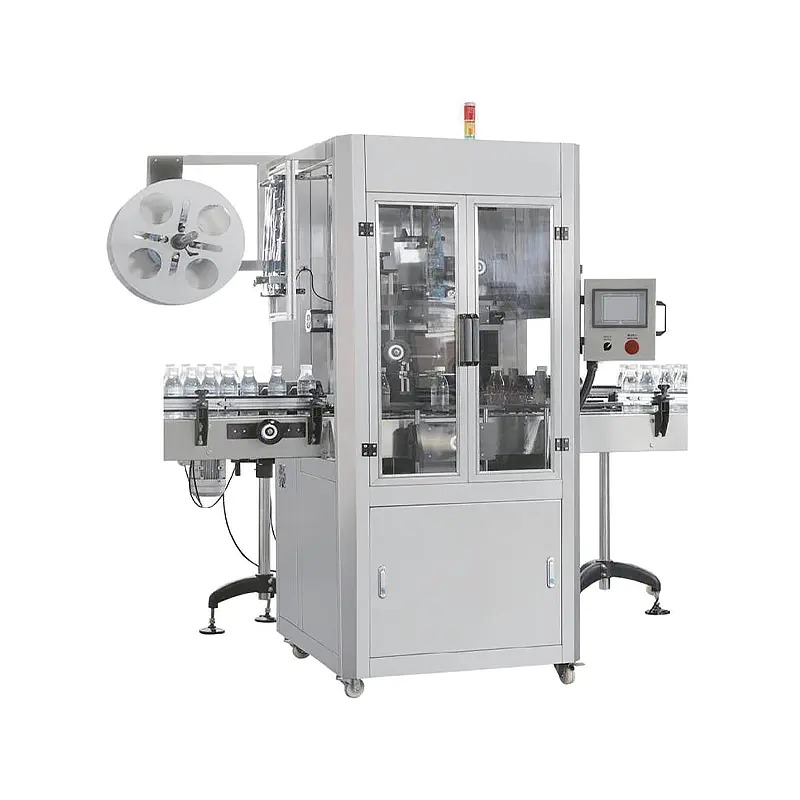

Our VK-SSL-150 automatic shrink labeling machine adopts the latest shrink labeling technology and is equipped with high-precision touch screen, which is easy to operate and convenient to switch labels. After precise design, the labeling machine can run smoothly for a long time without worrying about stability. The machine can applicate labels to 150 bottles per minute. It has a wide range of applications and can be compatible with square bottles, round bottles, flat bottles and so on. No matter what kind of container, we can always meet your various requirements. The machine is suitable for pharmaceutical, food, medicine, bottle juice, bottle milk, carbonated beverage and so on.

Function:

1. This machine uses large quantities of aluminum and high strength, the corrosion-resistant stainless steel so that the overall structure of the machine is more durable and its performance is more modular, user-friendly design makes the adjustments more easily and change style much simpler. Using the man-machine interface In the control system, which is easy to learn and understand.

2. Sleeve Labelling Machine is custom built to meet the exacting demands of manufacturers and suppliers. It can be used stand-alone or integrated in-line and matching filling equipment speeds.

3. It is built upon a framework of seam welded, food-grade stainless steel sections. This solid foundation keeps movement and vibration to an absolute minimum to ensure consistent, accurate labeling.

4. Unit cutter head plane design in China which apply to the container of ∮30 mm—∮130 mm. you never need to change or debug it. It also has a unique light touch human-machine screen, which means, auto search original location as well as safety and convenience which is ahead of other congener products.

5. Double shrinking label feed plane, the reasonable height which is convenient to fix the label; a micro-computer auto figure which avoids enactment and adjustment. you only need to press it lightly, the label will detect and locate automatically. The change of label is quick and convenient, besides, the cut place is absolutely exact.

6. The newly designed cutter stepper motor which a speed is high, the action is exact, the cut is in order and the shrinking is beautiful. This design cooperates with the label synchronized location structure to enable the precision of cut location within 1mm.

Technical Parameter:

Machine Model	VK-SSL-150
Input power	3KW
Input Voltage	220V/380V 50HZ
Production Speed	150BPM
Bottle Type	Round, Square, Flat, Curve
Label material	PVC, PET, OPS
Label Size	30-250mm(Customized)
Label Thickness	0.03-0.13mm
Label roll inner diameter	5''-10''(Customized)
Label roll outer diameter	Max 600mm
Machine Weight	850kg
Cutter Size	50-95mm(Customized)

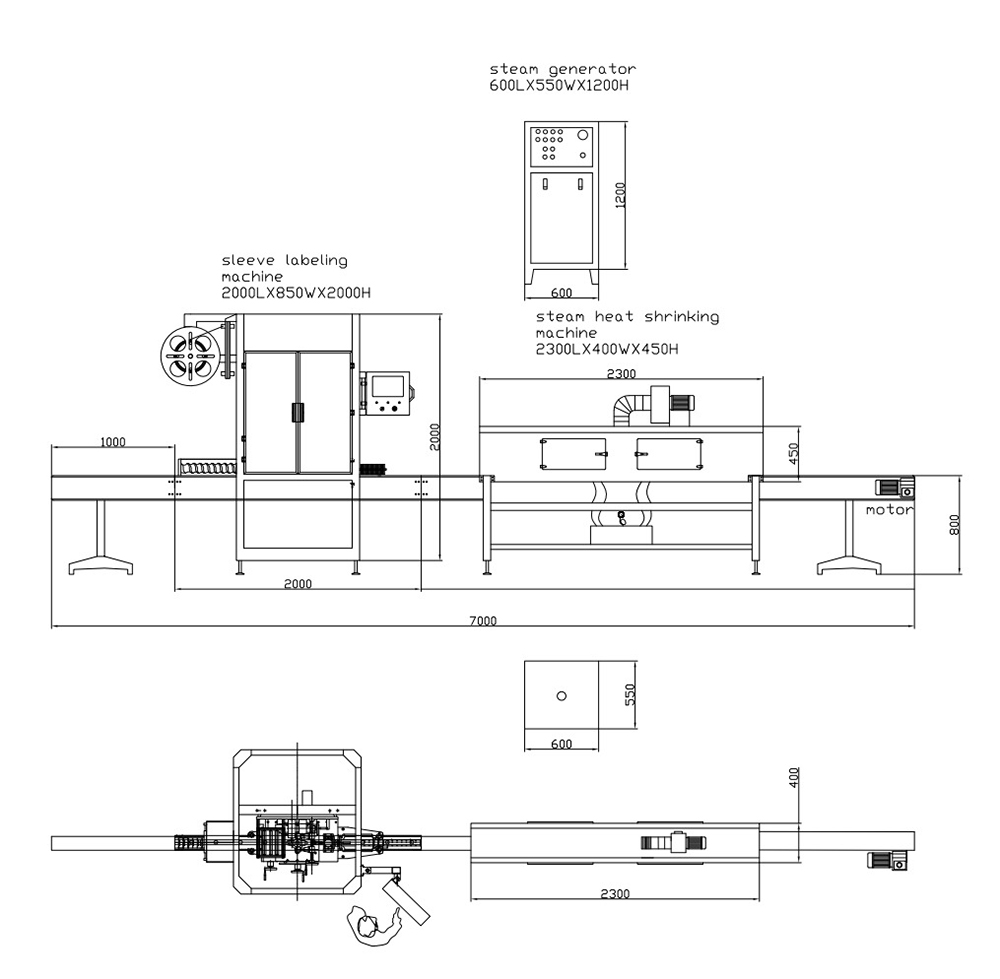

Drawing:

Features:
