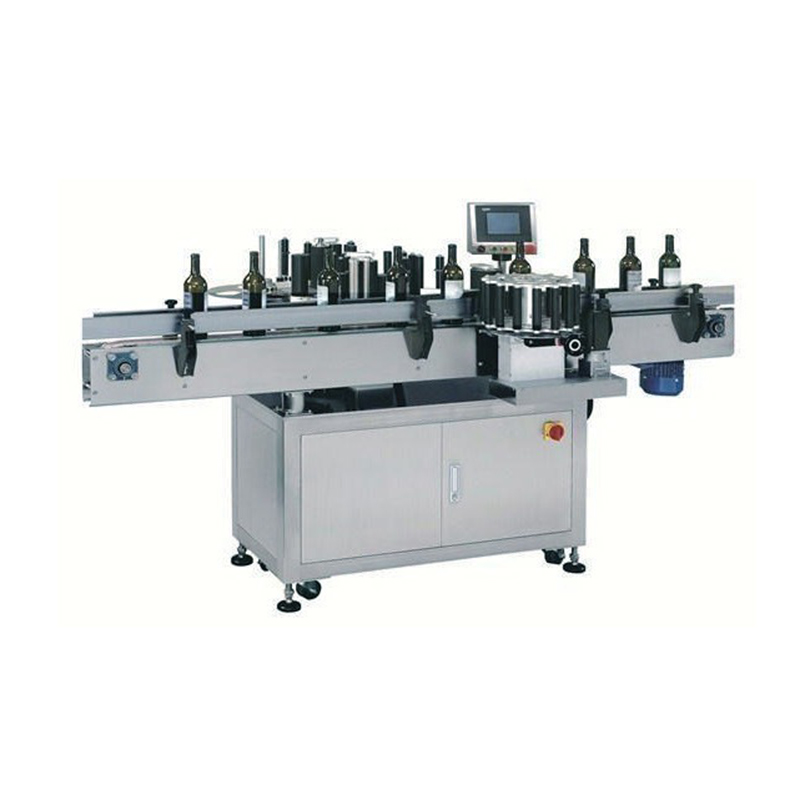

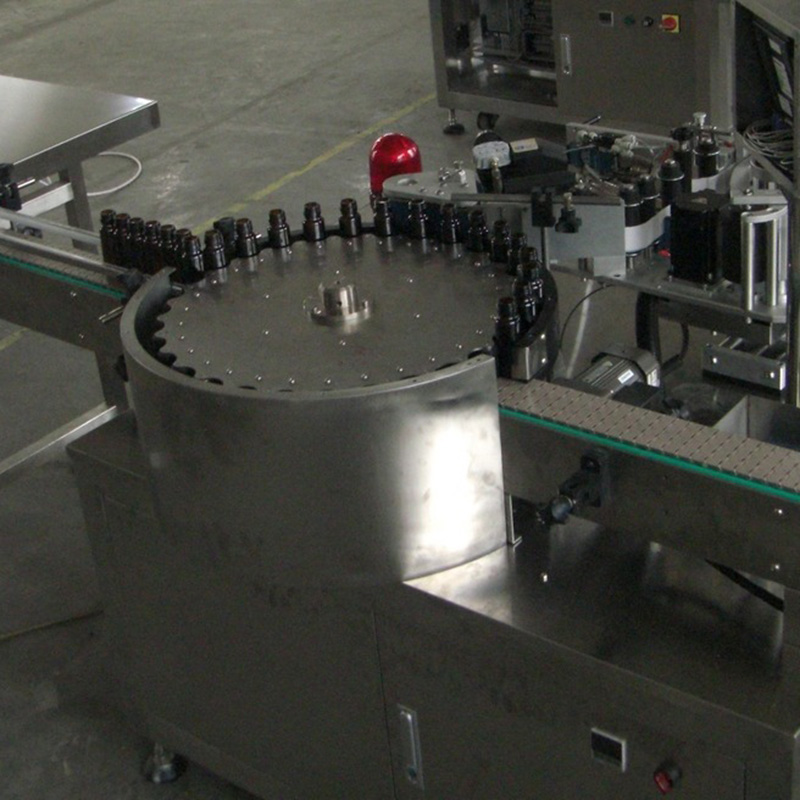

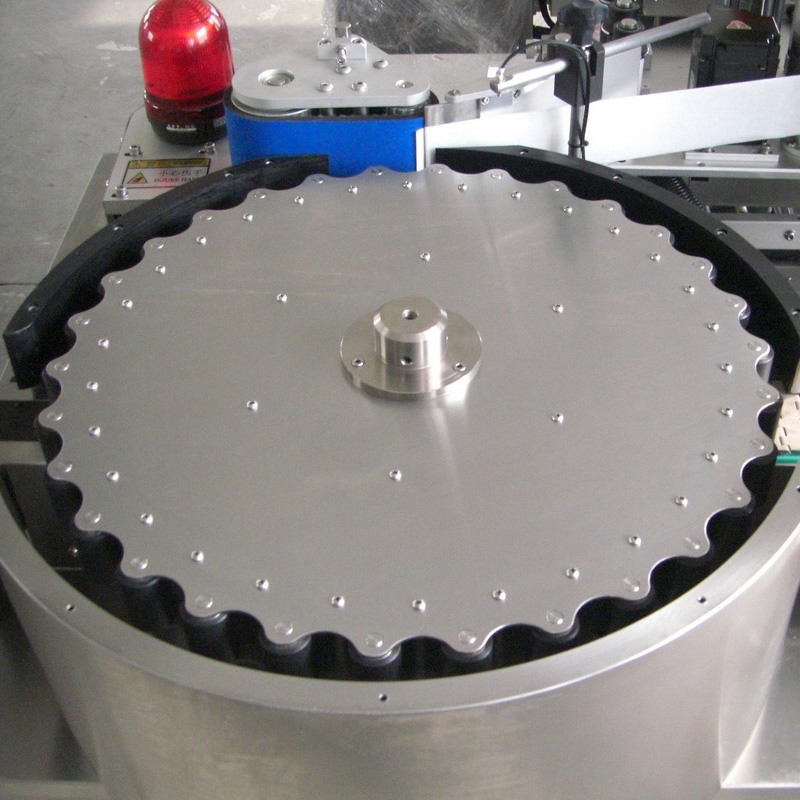

VK-SPL Star Disk Positioning Labeling Machine
This machine only for round products, such as bottles / jars / cans. This machine No. 1 advantage: High labeling precision and faster speed. This machine be widely used in chemical, commodity, food, medical, beverage and daily chemical industries.
Output Speed: 60-100 pieces/minute depends on label and bottle size
Dimension: L2300 * W1000 * H1720 mm
Function:
1. Whole machine be controled by PLC and HMI, easy for operation and high labeling precision.

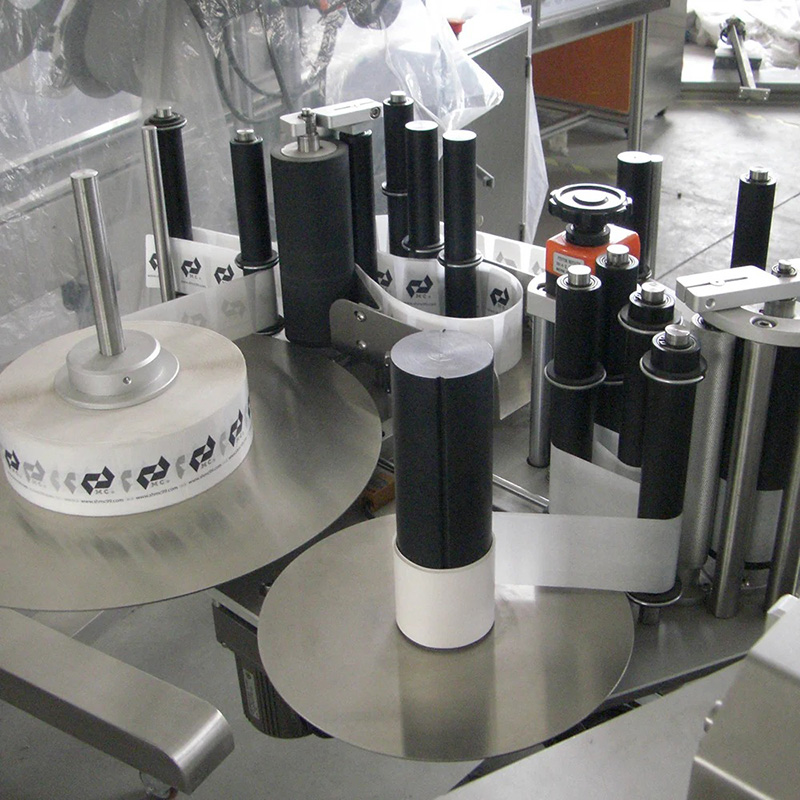

2. Precision servo motor be used on labeling head for feeding labels, and rotary clamp type be made by rubber roller.
3. Label feeding speed is synchronized with conveyor speed automatically to ensure quality labeler.
4. Stainless steel 304 or Aluminium frame construction and component are standard.
5. Transparent sensor and date printer are optional.
6. Machine can bu used alone, or connect with bottle feeding turntable and packing table, or connect with filling capping machine.
7. Completely achieve fast labeling round or half-round for round bottle, small beaker flask, or square bottle. It has multi-function, which can be used either for one kind of label or for many kind of labels.
Technical parameter:
| Model | VK-SPL |
| Label height | 10-182mm, if more big label, customized |
| Label length | 10-400mm, if more big label, customized |
| Bottle diameter | Below 120mm, if more big bottle, customized |
| Labeling speed | 60-100 bottles/min |
| Labeling error | ＜ ±0.5mm |
| Air supply | 0.3-0.6 MPa |
| Power supply | 1000W, 220V, 50/60Hz, 1 phase |
| Machine size | L2300 * W1000 * H1720 mm |
| Machine weight | 400KG |
| Reel label Inner diameter | 76mm or 40mm |
| Reel label outer diameter | Max.360mm |
This kind labeling machine is suitable for any round or cylinder bottles of bottle of wine, medicine, drinking, chemicals, agrochemical etc, its features simple structure and operation, attaching accuracy, reliable property, small power and no noise
The whole machine adopts mature PLC control system to ensure the stable running in high speed; Touch screen makes easy reading and excellent looking. More than 10 groups of labeling parameters saved, makes setting rapidly.

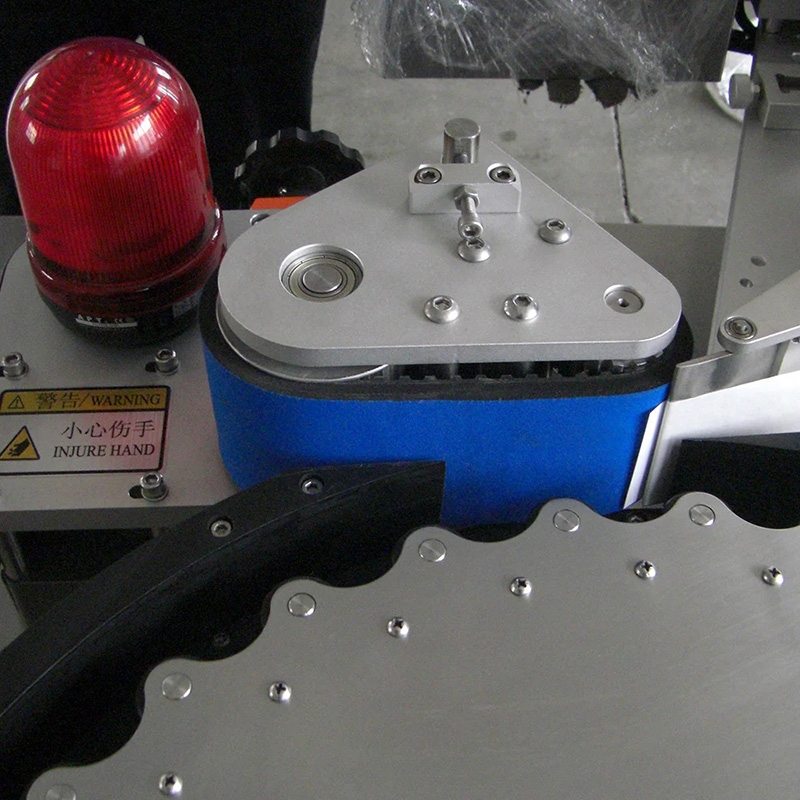

Labeling is performed smoothly with no creases with the use of elastic cotton idler wheel;
Automatic photoelectric detection functions including canceling labeling without objects there and stopping running or raising an alarm without labels to use to avoid omitting or wasting labels.
