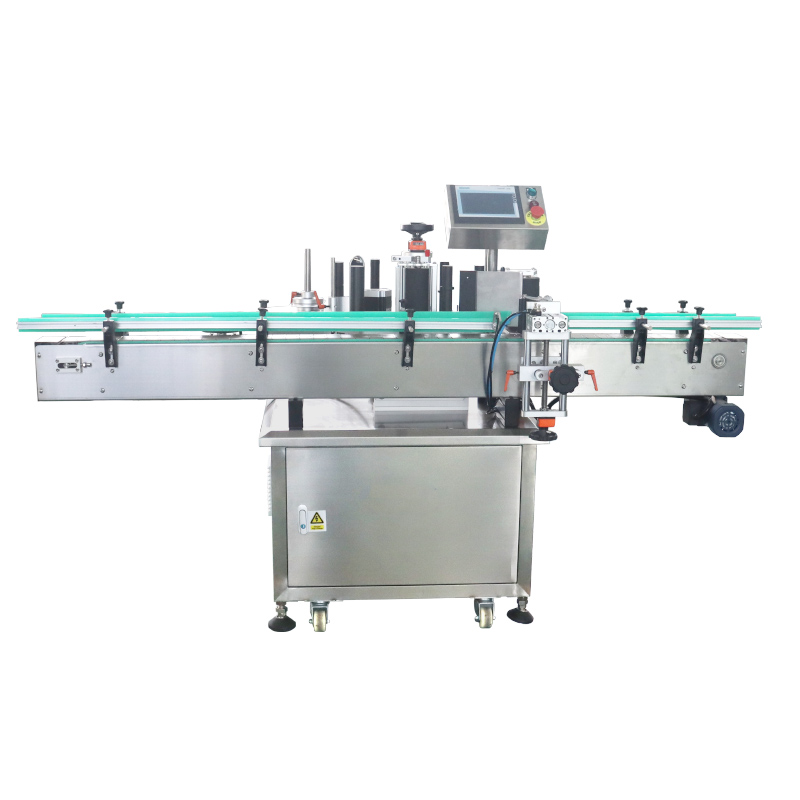

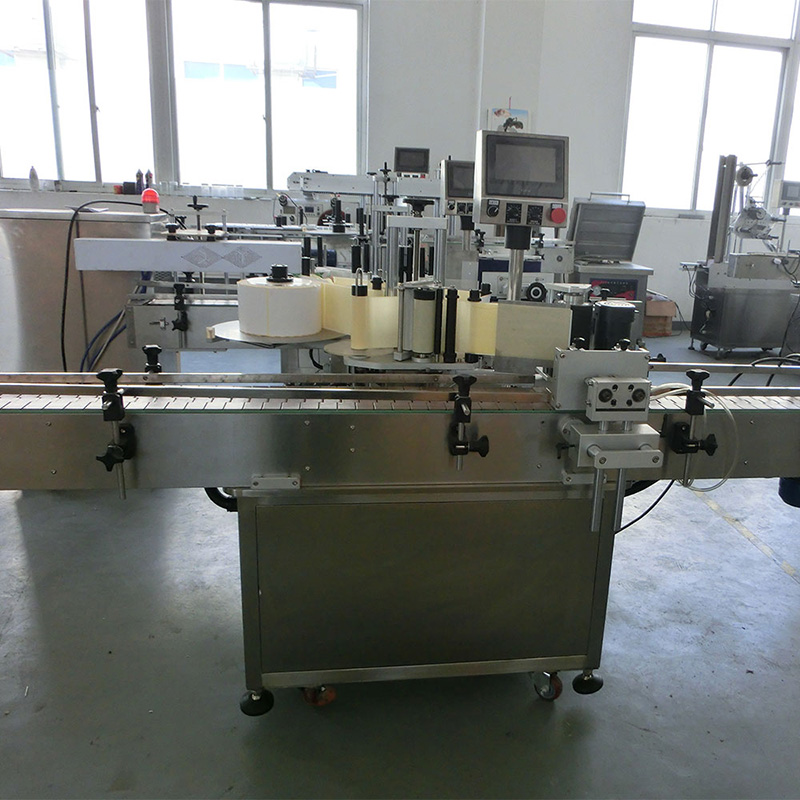

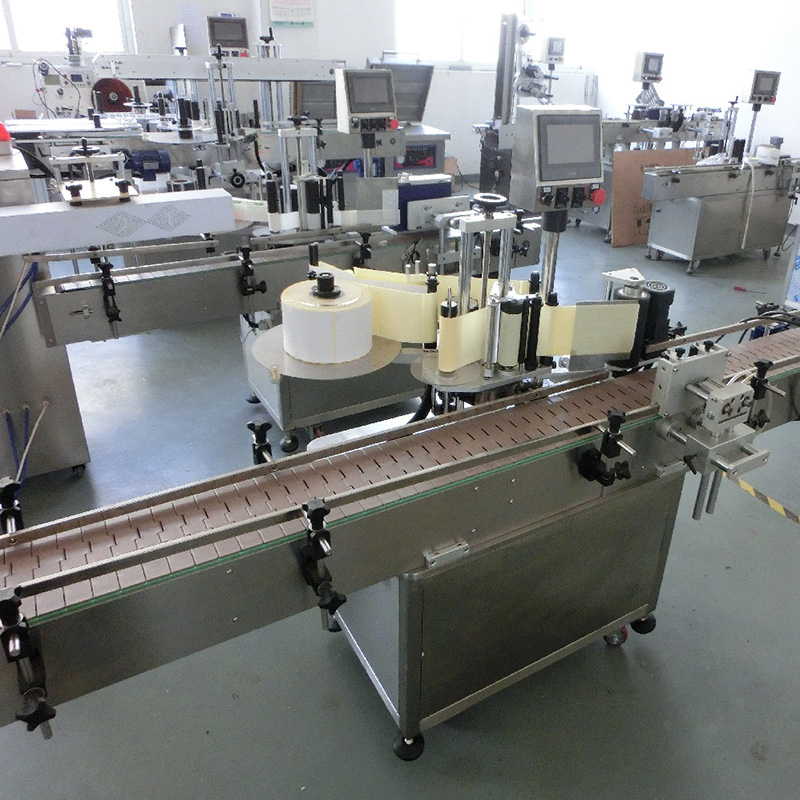

VK-RPL Round Bottle Positioning Label Applicator

VK-RPL Round Bottle Positioning Labeling Machine

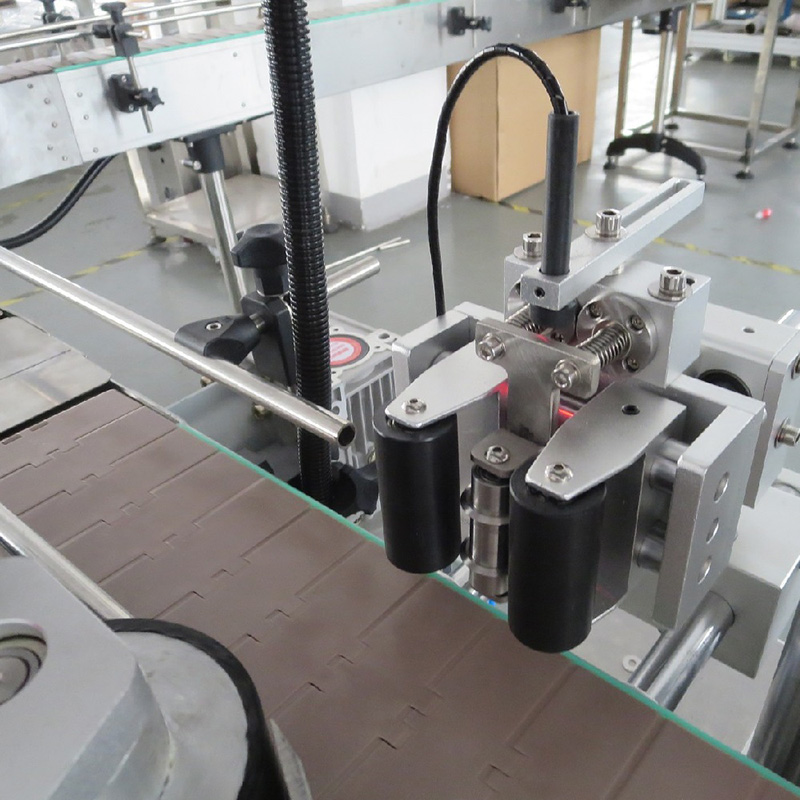

The VK-RPL labeller is used in the automatic labeling of circular products with positioning features for products of different sizes in the food, beverage, cosmetics and other industries; the fixed-point positioning mechanism uses the three-point positioning and rotating method of the bottle body, which can achieve 360-degree accurate positioning and labeling Function; it can be operated as a stand-alone machine or it can be perfectly connected with the existing conveyor line. The whole line runs smoothly.

Output Speed: 20-60 pieces/minute depends on label and bottle size

Dimension: L2000 * W800 * H1750 mm

Function:

1. Machine be used for round bottle /can / jar / any cylinder products labeling. widely used in food, medicine, cosmetics, daily chemical, electronics, hardware, plastics and other industries.

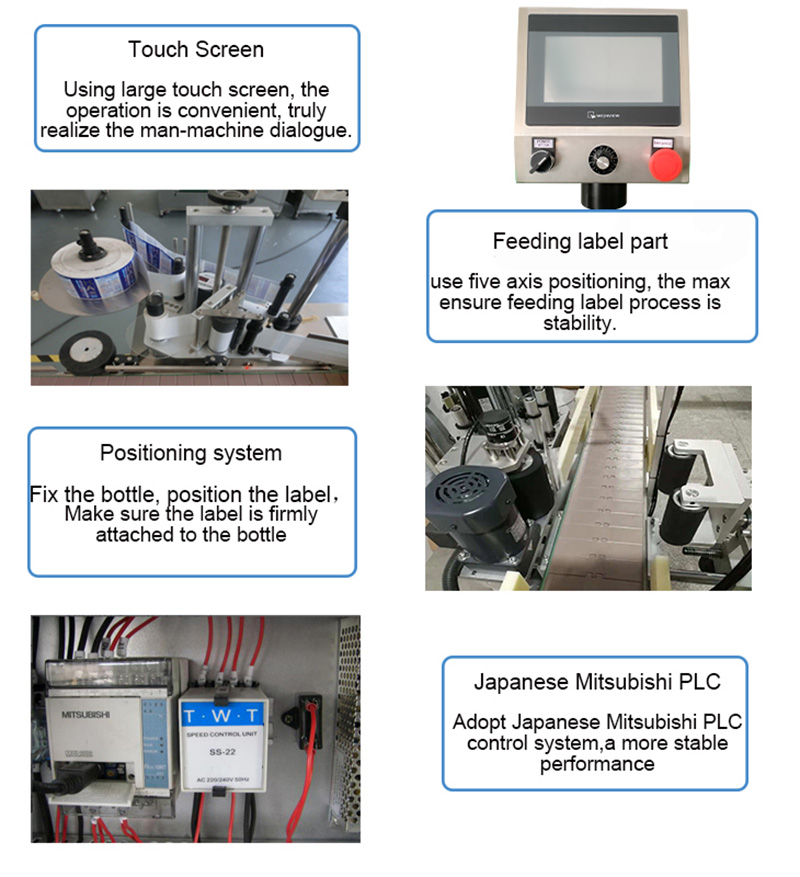

2. High stability, PLC+ HMI control system, Precision stepper or servo motor drive. keep machine working steady.

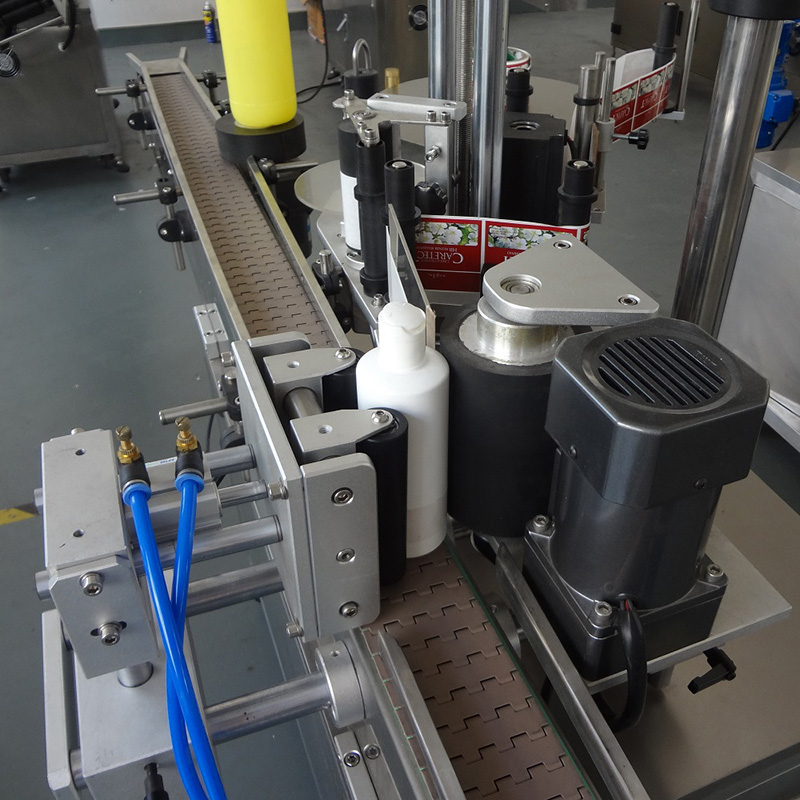

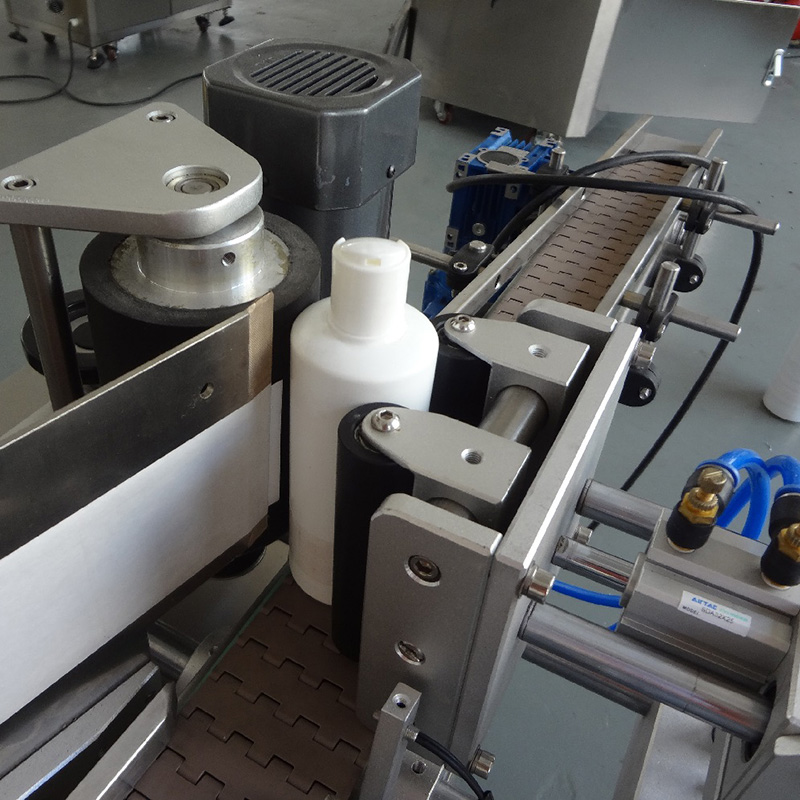

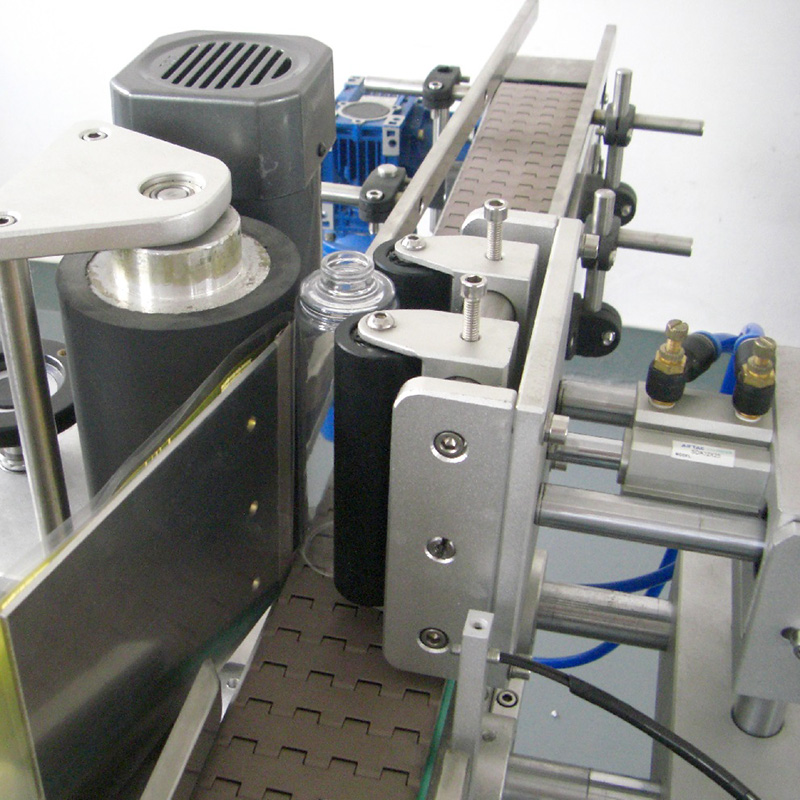

3. Three rollers fixing labeling device, make label close-fitting.labeling smooth, no wrinkles, improve packaging quality.

4. Flexible application, bottle stand vertical label applicator, with automatic sub bottle function, can be stand-alone production, can also be connected to the production line.

5. Intelligent control, automatic photoelectric tracking, with no matter no labeling, no standard automatic calibration and label automatic detection function, prevent leakage and label waste.

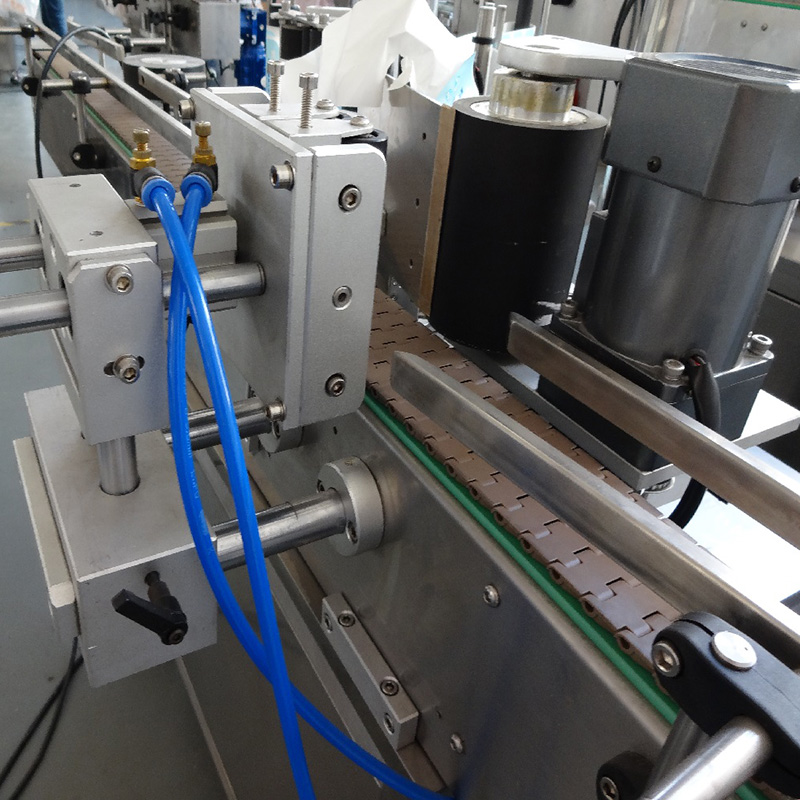

6.Durable, using three bar adjustment mechanism, make full use of triangular stability, solid durable machine. Made of stainless steel and advanced aluminum alloy, accord with CE Production requirements.

7. Simple adjustment, labeling speed, conveying speed, bottle speed can be achieved stepless speed regulation, according to the need to adjust.

Technical parameter:

Model	VK-RPL
Capacity (PCS/min)	20-60(depond on bottle and label size)
Suitable for label size	W:5-300mm, L:10-500mm
Conveyor speed	≤25 meter/min
Labeling error	＜ ±0.3 mm
Inner diameter of label roll	75 mm
Outer diameter of label roll	360 mm(max)
Suitable size of labeling objects	Any size round shape
Air supply	0.3-0.4MPa
Power supply	AC110V/220V 50/60HZ 1 phase (customized)
Power	750W
Weight	320 KG

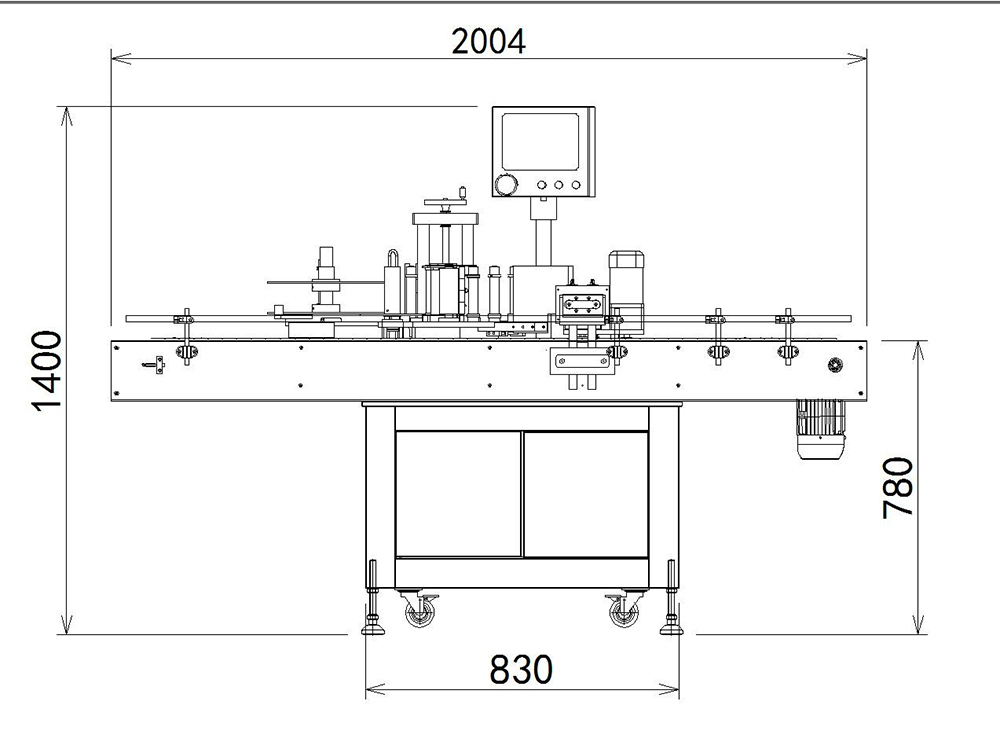

Machine dimension	2000(L)800(W)1710(H)mm

The round bottle positioning labeling machine offers greater accuracy and consistency in labeling, reducing the risk of waste due to misaligned or misapplied labels.

The machine can handle a wider range of bottle sizes and shapes, making it a more versatile solution for labeling different products.

The automatic bottle positioning feature reduces the need for manual adjustment by operators, increasing efficiency and reducing the risk of errors.

The machine's advanced sensors and positioning technology ensure that labels are applied in the correct position every time, improving the overall appearance and quality of labeled products.

High labeling accuracy: The machine is designed to apply labels to round bottles with high precision and accuracy, ensuring that the labels are aligned and positioned correctly.

Versatility: The machine can handle a wide range of label materials, including paper, film, and foil, and can apply various label types, such as wrap-around, front-and-back, and top labels.

User-friendly interface: The machine features a user-friendly interface that makes it easy to set up and operate. It also has a touch screen control panel for easy adjustments and monitoring.

Adjustable labeling speed: The machine has an adjustable labeling speed, allowing it to match the production line's pace and improve efficiency.

Automatic bottle positioning system: The machine is equipped with an automatic bottle positioning system that ensures the bottle is in the correct position for labeling.

Application:

Automatic positioning labeling machines are widely used in many different industries. Here are some common industry applications:

Cosmetics industry: Suitable for labeling bottles, jars of cosmetics.
