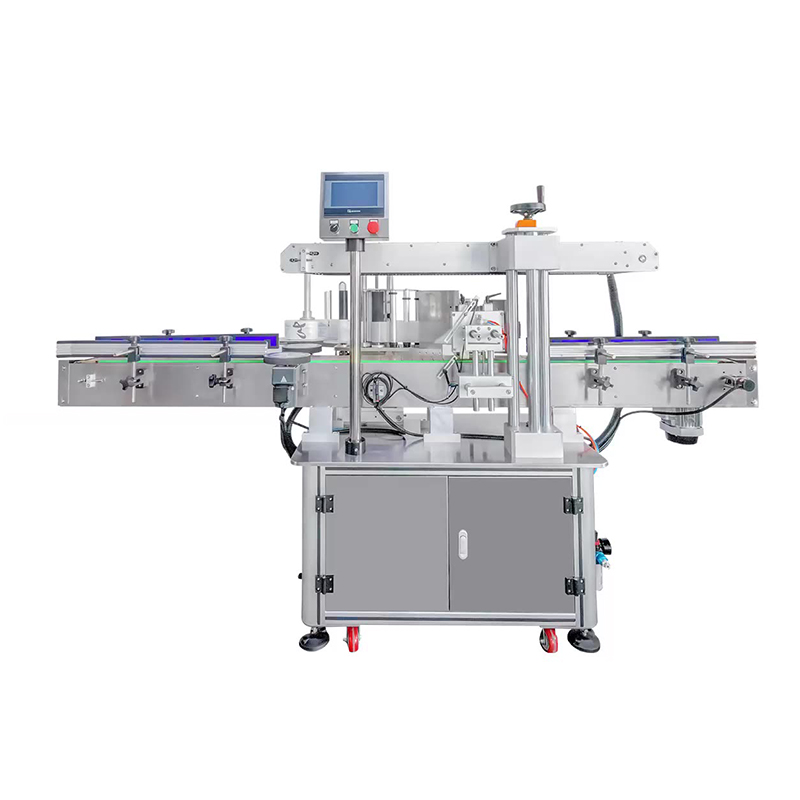

VK-OSL-P Single Side And Round Bottle Labeling Machine
This labeling machine is a combination of VK-OSL and VK-RPL, one labeling head can have two labeling modes, with the function of labeling both flat and round containers, with a very wide range of applications, not only for flat single-sided labels, but also for round bottle wrap-around labels. A machine with multiple uses, worth getting!
Output Speed: 30-180 pieces/minute depends on label and bottle size
Dimension: 2800(L)1300(W)1800(H)mm
Function:
One-head design: The VK-OSL-P labeling machine is equipped with one labeling head, with one designed for round bottle labeling and the other for square bottle labeling. This design allows for seamless adaptation to different bottle shapes and types, providing greater flexibility and diversity in labeling options.
Quick interchangeability: The labeling head can be easily and swiftly interchanged without the need for additional tools. This means that when you need to switch between round and square bottle labeling, you can effortlessly switch to the appropriate labeling head, minimizing downtime and production interruptions.
Precise positioning: The VK-OSL-P labeling machine incorporates advanced positioning systems to ensure precise and consistent labeling. It accurately identifies the shape and position of bottles, applying labels in the correct position for precise label adherence.
Multifunctional application: The VK-OSL-P labeling machine is suitable for various industries and product types. Whether your products are round or square bottles, the VK-OSL-P can efficiently and accurately label them, providing versatile labeling capabilities.
High production efficiency: The VK-OSL-P labeling machine boasts high-speed labeling capabilities, meeting the demands of large-scale production. Its high-speed and stable performance enhances production efficiency while ensuring label quality and consistency.
User-friendly operation: The machine features an intuitive user interface and an easy-to-use control system. You can effortlessly set labeling parameters, monitor the labeling process, and make necessary adjustments, making operation straightforward and efficient.
Technical parameter:
| Model | VK-OSL-P |
| Capacity (PCS/min) | 0-180（depend on bottle and label size） |
| Conveyor running side | from left to right / from right to left |
| Conveyor speed(meter/min) | ≤40 |
| Labeling error | ＜ ±0.5mm |
| The inner diameter of label roll | 76 mm |
| The outer diameter of label roll | 360 mm(max) |
| Suitable for label size | W:5-300mm, L:10-500mm |
| Suitable size of labeling objects | any size |
| Power supply（In China） | AC220V 50/60HZ single phase （customized） |
| Power | 1300W |
| Weight | 610 KG |
| Machine size | 2800(L)1300(W)1800(H)mm |
Equipment Characteristics:
1. Bottle adaptability: The machine is equipped with adjustable mechanisms that can accommodate both round and square bottles of different sizes and dimensions. It ensures labels are securely applied to the surfaces of both round and square bottles.
2. Quick conversion: The labeling machine has a quick conversion feature, allowing for easy switching and adjustment of labeling configurations for different bottle shapes. This enables rapid adaptation to different types of bottles during the production process.
3. Precise positioning: The labeling machine is equipped with a precise positioning system, ensuring labels are accurately placed on the designated positions of the bottles. This helps maintain consistency and a professional appearance of the labels.
4. Efficient operation: The labeling machine has high-speed labeling capabilities, allowing for the completion of a large volume of labeling tasks in a shorter period. This improves production efficiency and reduces downtime on the production line.
