Function:

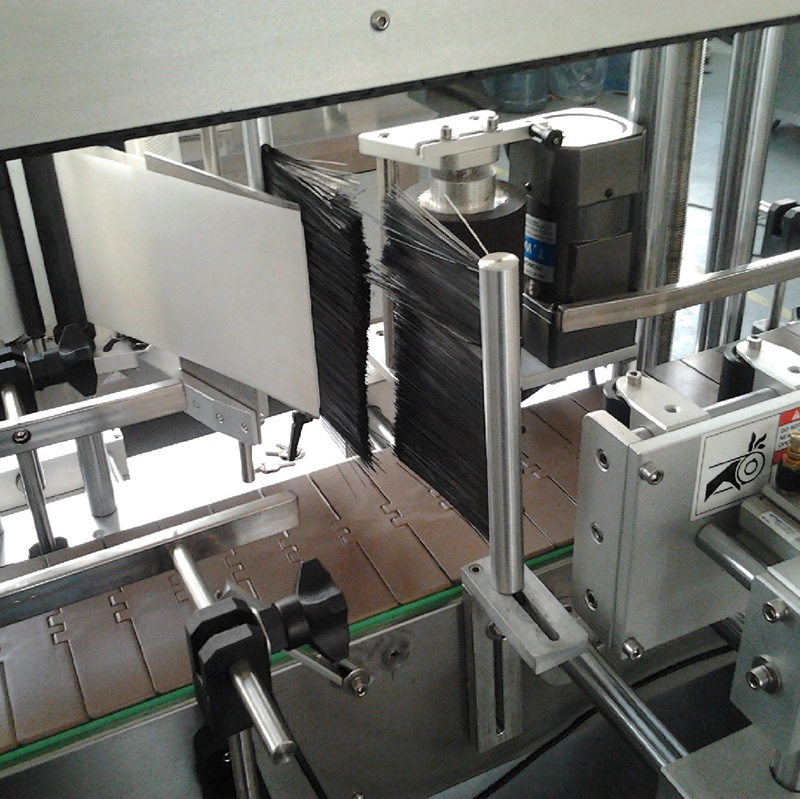

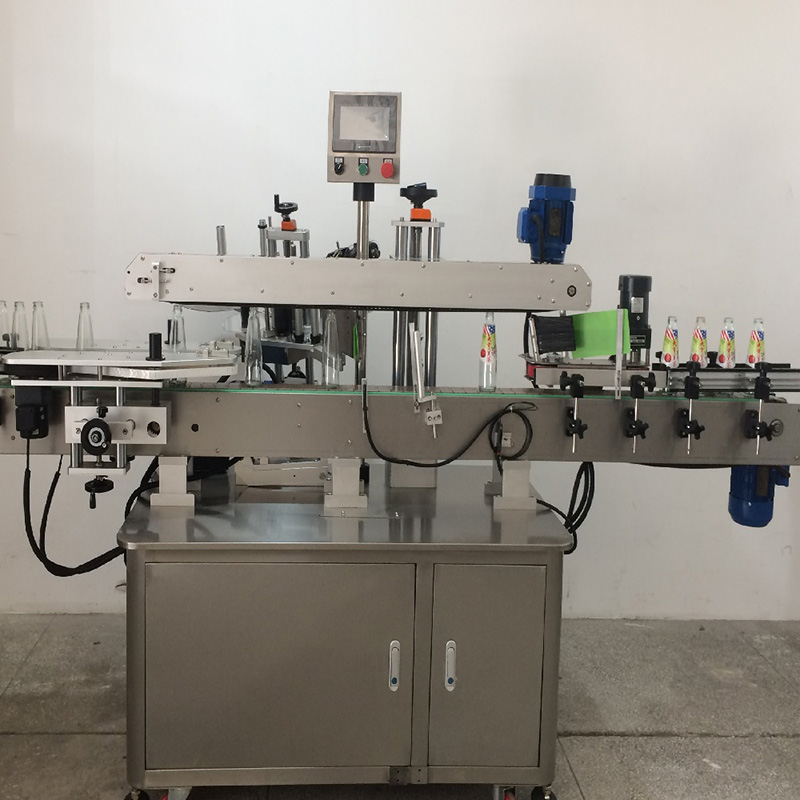

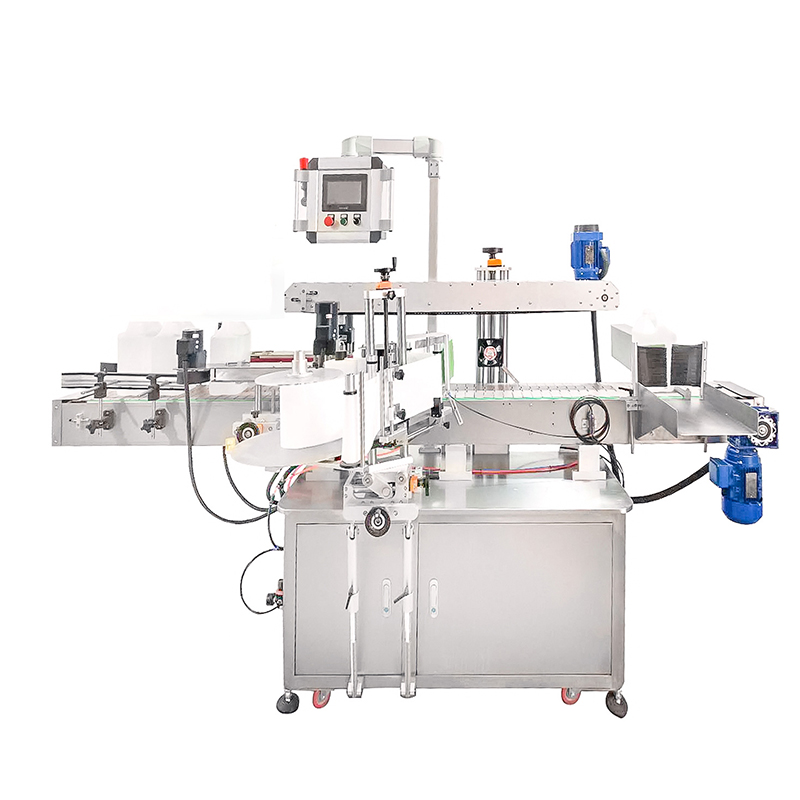

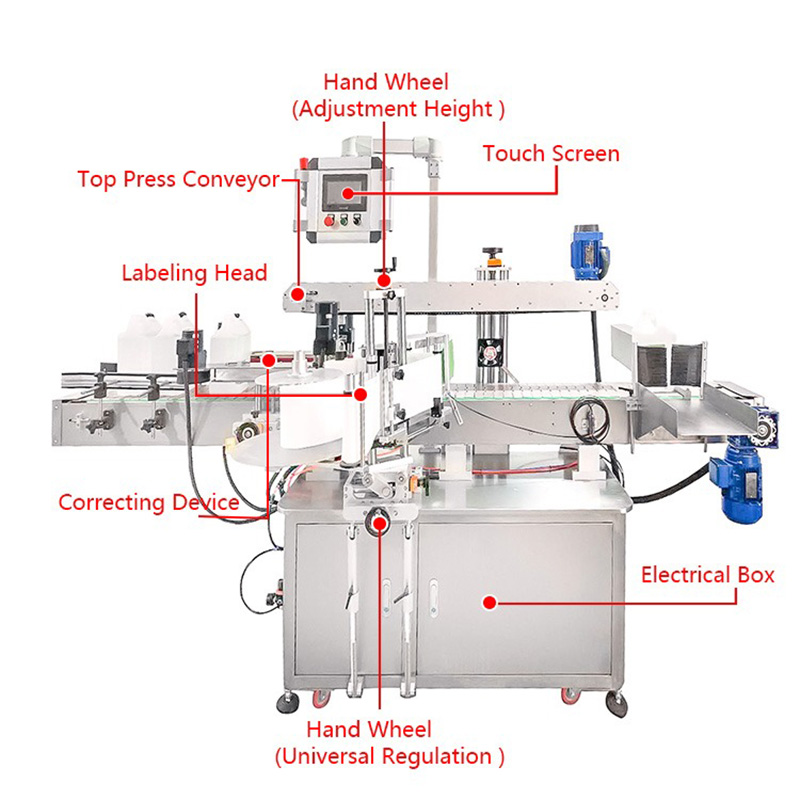

1. Machine is composed of one labeling head, bottle separeting correcting device, conveyor, top pressing conveyor, frame and control system, adopts mechatronics technology, realizes modern operation with English HMI. sensor and motor be controled by PLC.

2. It can not only be used on a single machine, but also be matched with the production line. Achieve self-adhesive labels and self-adhesive films on the side of the product side, the large curved side of the side, and the square peripheral surface wrap around.

3. The whole machine adopts mature PLC control system to ensure the stable running in high speed; Touch screen makes easy reading and excellent looking. More than 10 groups of labeling parameters saved, makes setting rapidly.bottles at the same time.

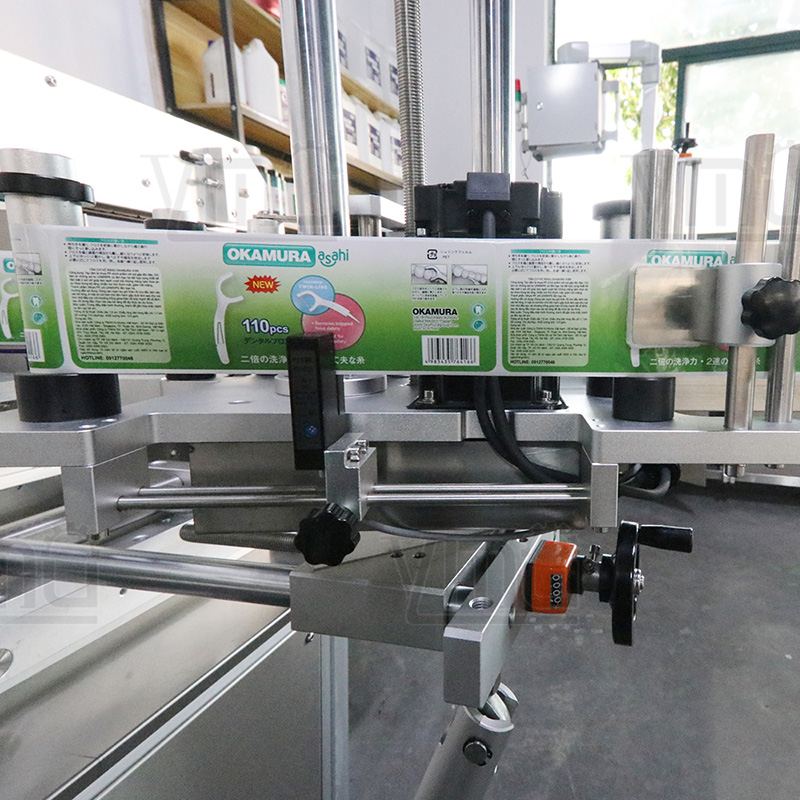

4. Labeling is performed smoothly with no creases with the use of elastic cotton idler wheel.

5. Automatic photoelectric detection functions including canceling labeling without objects there and stopping running or raising an alarm without labels to use to avoid omitting or wasting labels.

6. Machine has code printing and transparent sensor for optional.

7. This high quality machine can be used with automatic filling machine,capping machine to realize the full packaging process.

Technical parameter:

Model	VK-OSL
Capacity (PCS/min)	0-200 (depend on bottle and label size)
Conveyor running side	from left to right / from right to left
Conveyor speed(meter/min)	≤40
Labeling error	＜ ±0.8mm
The inner diameter of label roll	76 mm
The outer diameter of label roll	360 mm(max)
Suitable for label size	W:5-300mm, L:10-500mm
Suitable size of labeling objects	any size
Power supply(In China)	AC220V 50/60HZ single phase (customized)
Power	1100W
Weight	400 KG

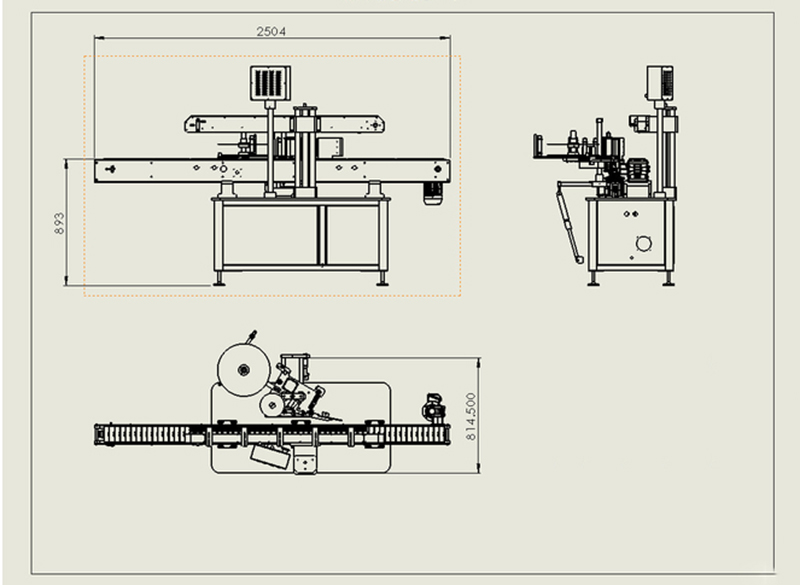

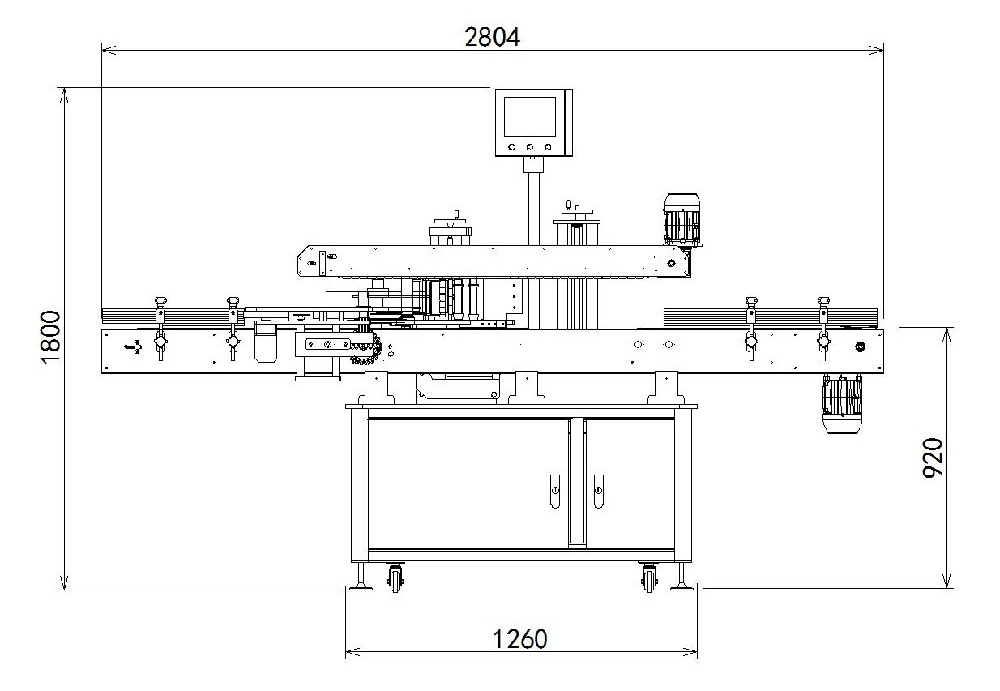

Machine size	2500(L) 1200 (W) 1800 (H) mm

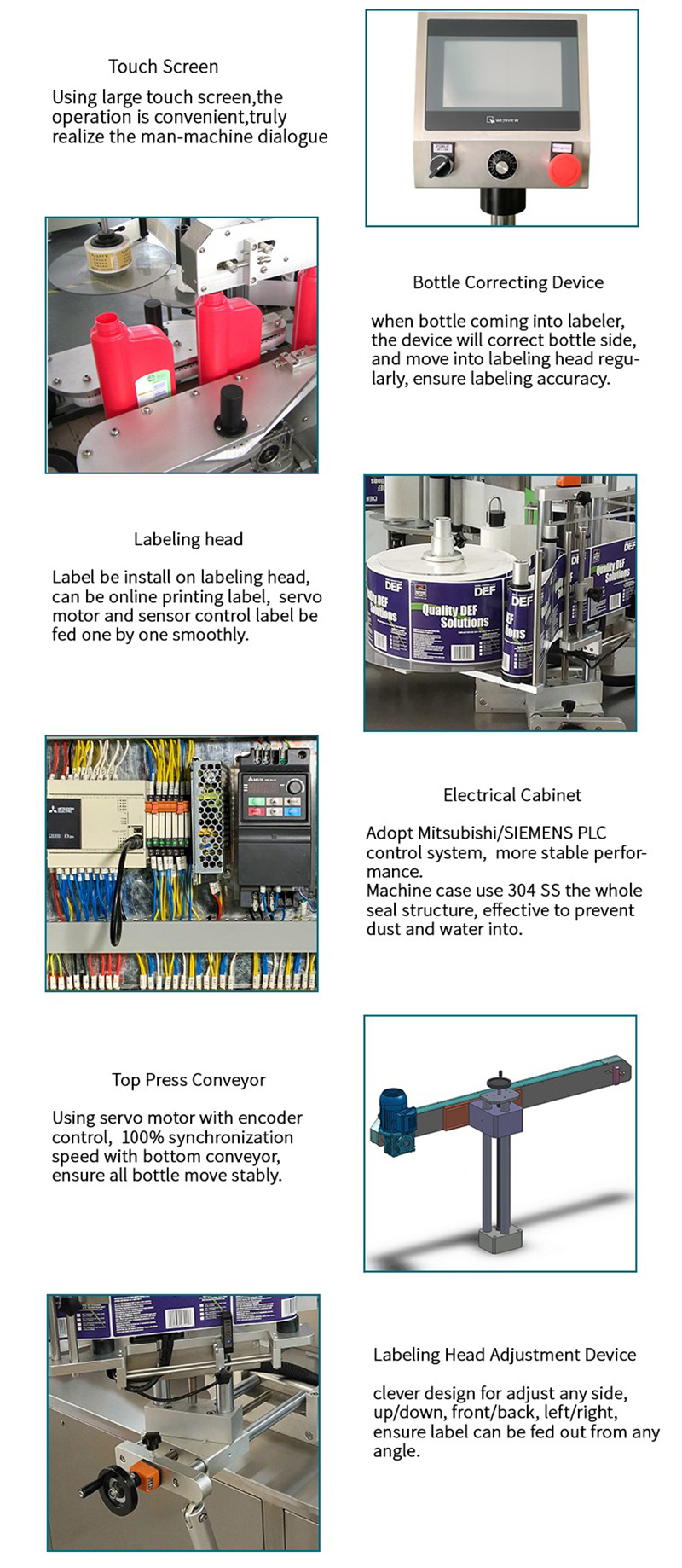

Equipment Characteristics:

1) Control system: SIEMENS / Mitsubishi PLC control system, with high stable operation and extremely low failure rate;

2) Operation system: SIEMENS touch screen, directly visual interface easy operation, with help function and fault display function.

3) Labeling system: Servo /stepper motor control system, stable with high speed.

4) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.

5) Machine Material: Machine and spare parts all use material SS304 stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust.

6) Others: Machine can be adjustment easy when change different label and different bottle.

Advantages:

Single-sided labeling: The VK-OSL is dedicated to single-sided labeling on square bottles. It precisely applies labels to one side of the flat bottle, ensuring consistent and professional labeling results.

Square bottle compatibility: This machine is specifically designed to accommodate square-shaped bottles. It can efficiently handle bottles of various sizes and dimensions, providing versatility for different product requirements.

High-precision labeling: The VK-OSL utilizes advanced labeling technology, including precise positioning systems and control mechanisms. These features ensure accurate label placement on the designated side of the square bottles, resulting in a neat and visually appealing labeling outcome.

User-friendly operation: The machine is equipped with user-friendly controls and an intuitive interface, making it easy to operate and adjust settings. Operators can quickly set labeling parameters, monitor the labeling process, and make necessary adjustments for optimal performance.

Versatile labeling options: The VK-OSL allows for customization of label sizes and shapes, catering to the specific labeling requirements of square bottles. It offers flexibility in terms of label design and placement.

High production capacity: The VK-OSL is designed for high-speed labeling operations, ensuring efficient processing of square bottles. Its robust construction and reliable performance enable continuous and uninterrupted production.
