Function:

1. The labeller will automatically detects label size and set the appropriate labeling parameters, a very useful feature for users with multiple products to label.

2. It is an optimal combination of speed,accuracy,stability,GMP standards, easy use, and flexibility.

3. Machine strong labeling for corner of two sides, any different size carton and labels are no problem on this machine.

4. PLC combined with human/machine interface digital LCD touch screen controller.

5. Labeling speed is automatically synchronized with conveyor speed to ensure quality labeling.

6. The kind machine can working without conveyor, it only put along of existing conveyor, it's very convenient and smart.

Technical parameter:

Model	VK-OBCL
Capacity (PCS/min)	0-120 (depond on label size)
Conveyor	not have conveyor, put on line,it can be work, very smart
Labeling error	＜ ±1 mm
The inner diameter of label roll	75 mm
The outer diameter of label roll	350 mm(max)
Suitable for label size	W:10-300mm, L:20-350mm
Suitable size of labeling objects	any size big bottle, drum, carton, box, pallet
Power supply(In China)	AC220-240V 50/60HZ 1ph (customized)
Power	380 W
Weight	160 KG

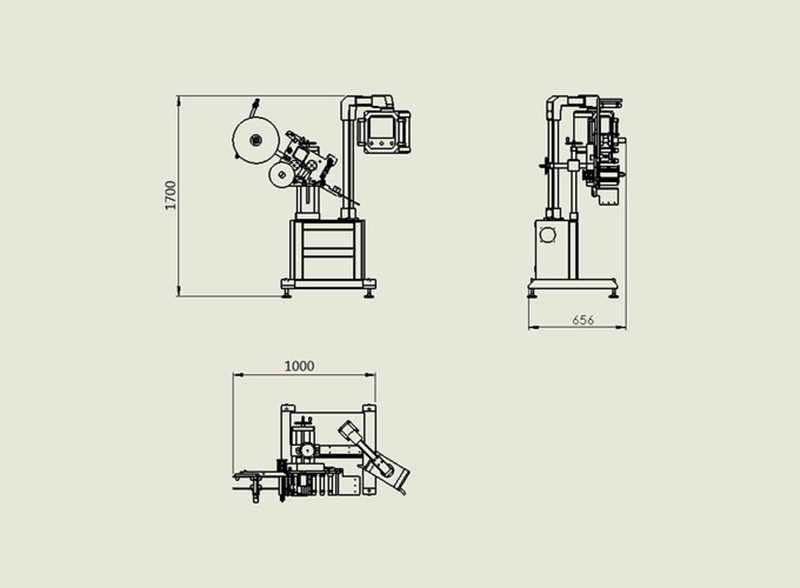

Machine size	1000(L) 800 (W) 1680 (H) mm

1. Adopt mature technology PLC control system, operation is stable and high-speed.

2. Using touch-screen control operating system, simple, practical, efficient;

3. Screw adjustment for labeling head moving easy;

4. Advanced technology of pneumatic coding system, print the batch number and expiry date clearly.

5. Transmission-type roll label device, make sure the label attached more firmly;
