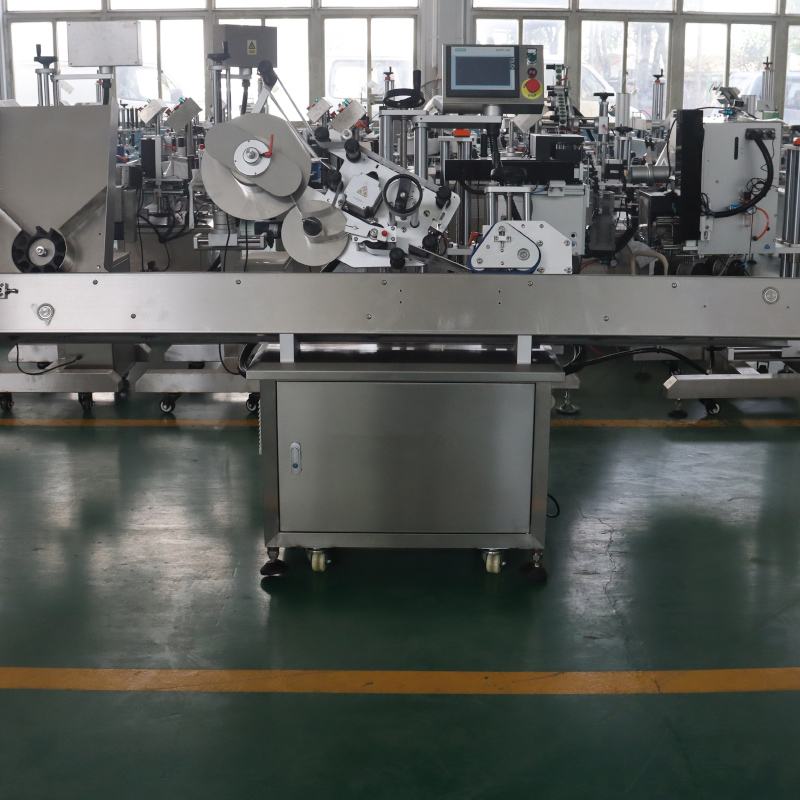

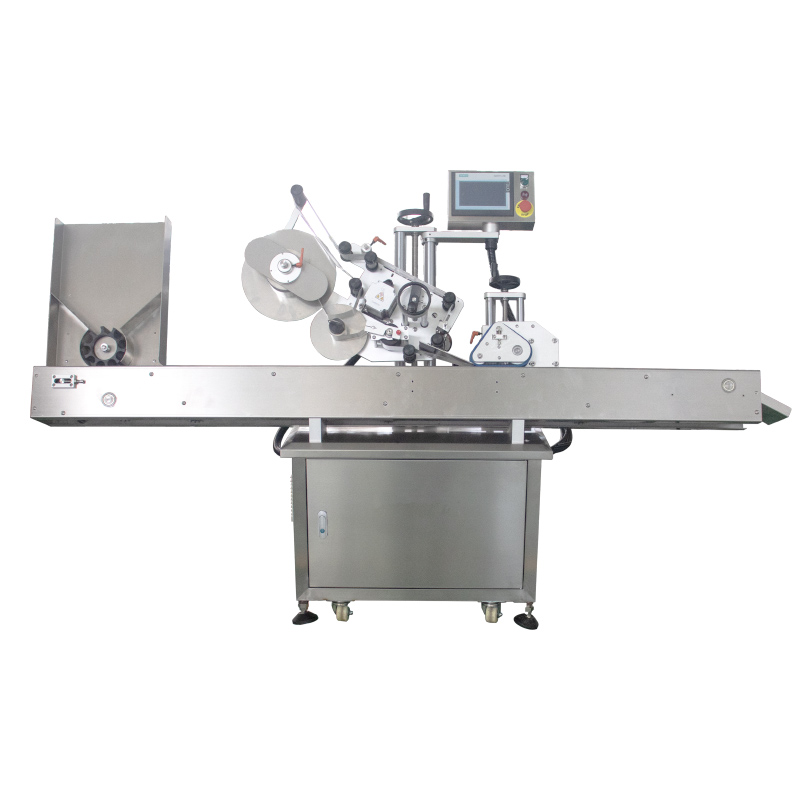

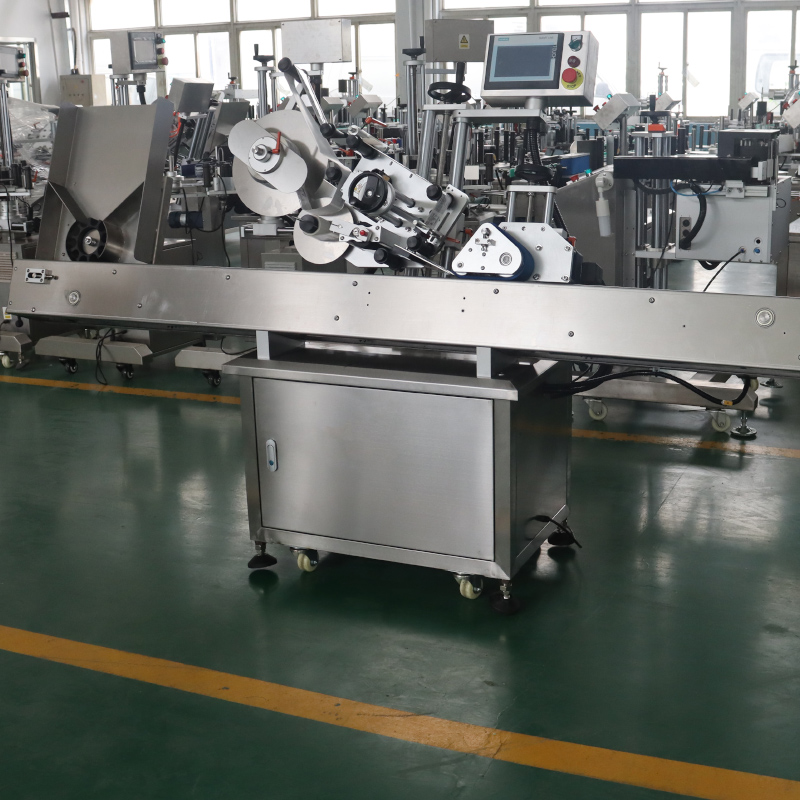

VK-FBL Flat Bottom Label Applicator Machine
This horizontal labeling machine is suitable for food, daily chemical, pharmacy, stationery and other industry. All small diameter round product, not easy stand product, it can be sticked label on this labeler, such as ampoule vial, oral liquid, detection reagent tube, lipstick, nail polish, mark pen, crayon, sausage, dental needle, cigar and so on.
Output Speed: 20-300 pieces/minute depends on label and bottle size
Dimension: 2000×700×1700mm
Function:
1. Machine is automatic feeding product and labeling and collecting product, printing function can be choose on label.

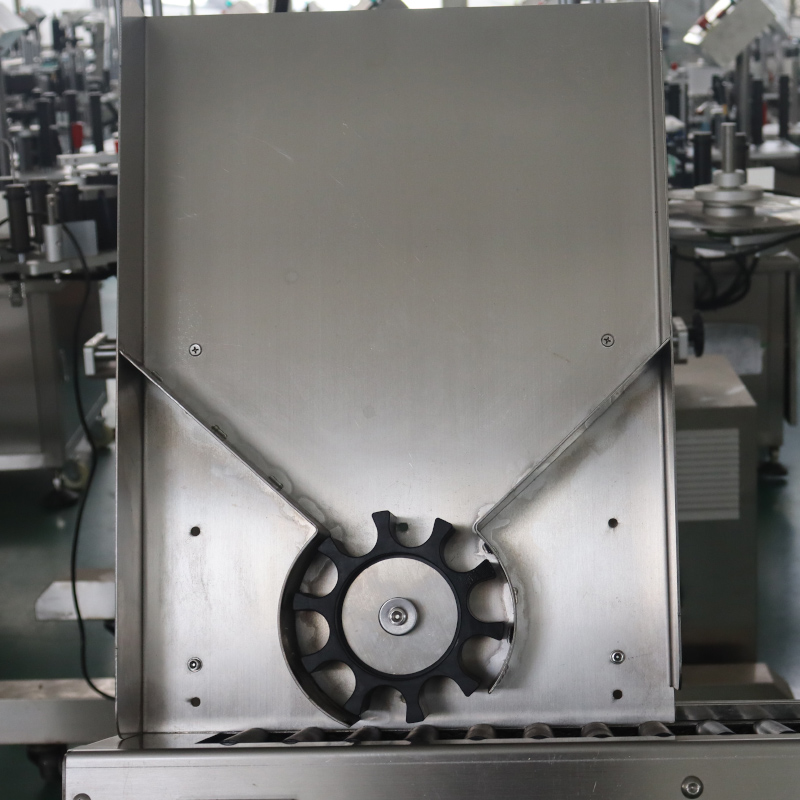

2. Machine feeding product onto conveyor automaticly, save labor, increase efficiency. Different diameter product, change different mould for feeding, very cheap, easy and fast.

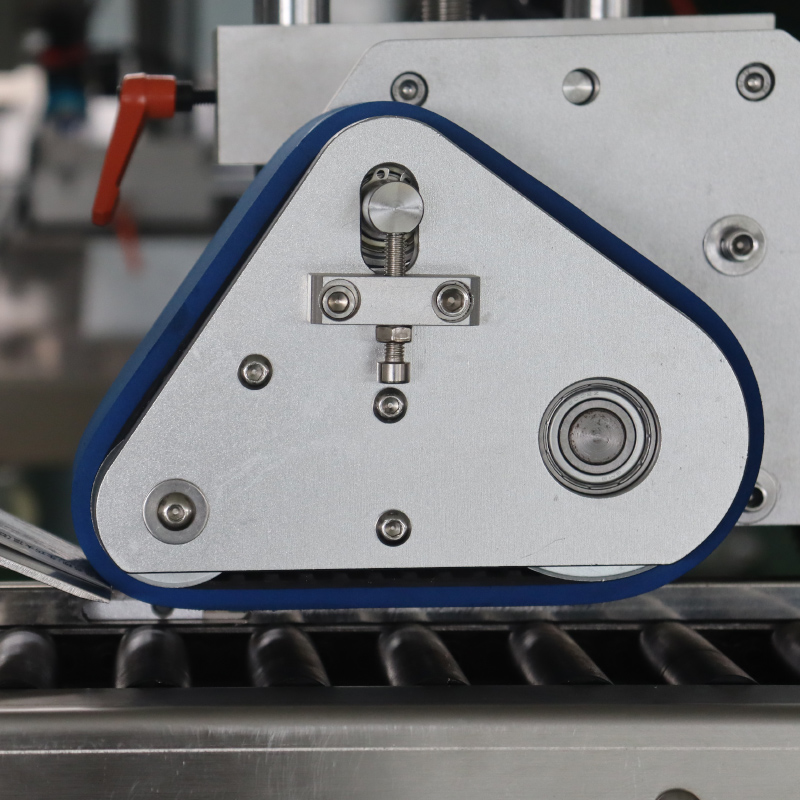

3. Blue belt wrap around device, press labels on product tighten.

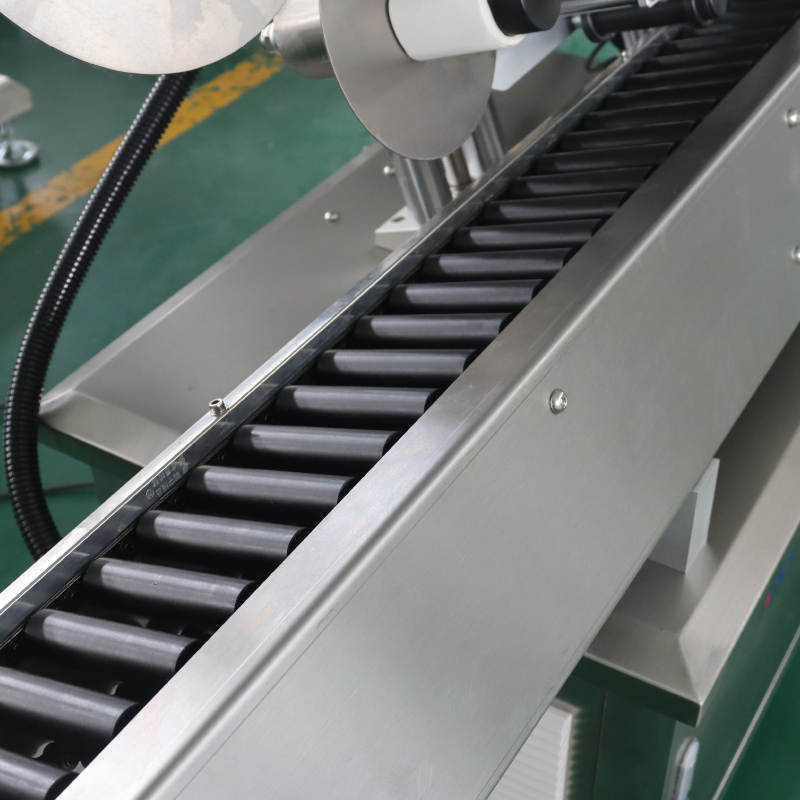

4. Conveyor are roller type, keep product very steadily running until to labeling. Collecting hooper collect labeled product smoothly and soft.
5. Automatic photoelectric detection functions including canceling labeling without objects there and stopping running or raising an alarm without labels to use to avoid omitting or wasting labels.

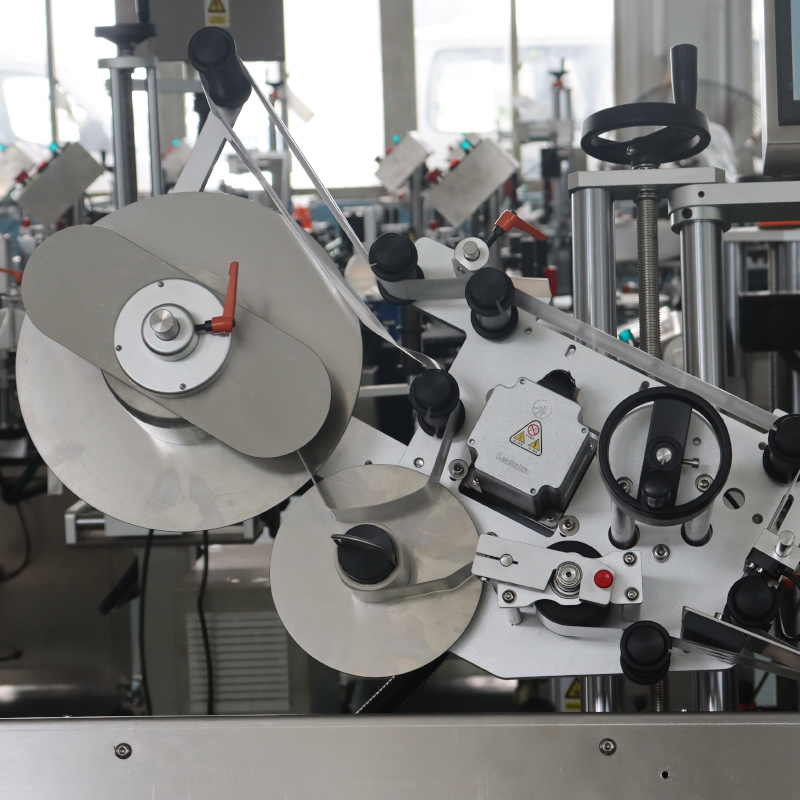

6. Servo motor feeding label out, faster and more steadily, ensure labeling precision high. labeling speed: 100-300 PCS/min.

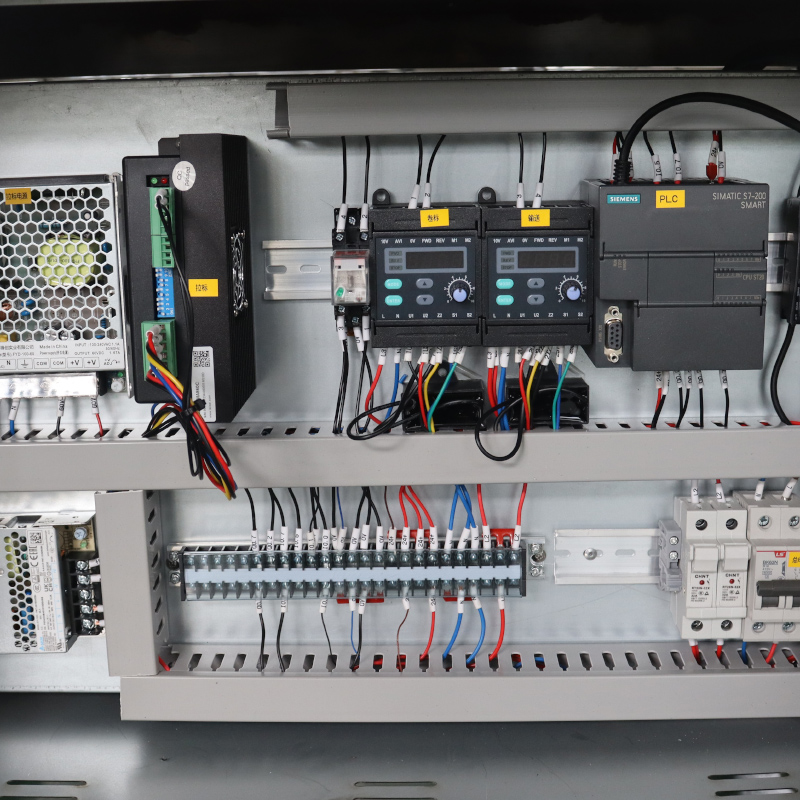

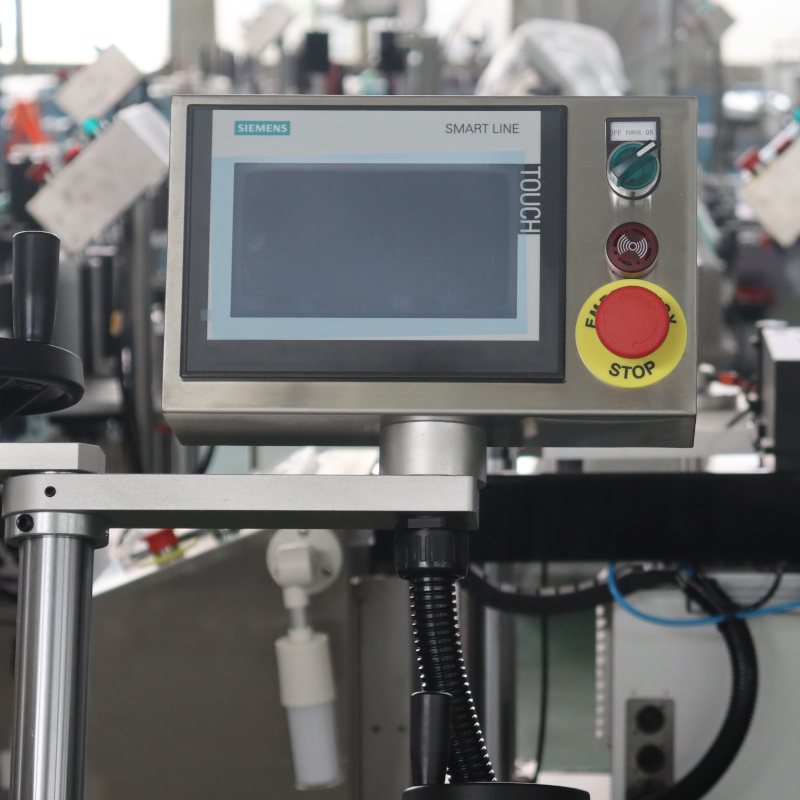

7. The whole machine adopts mature PLC control system to ensure the stable running in high speed; Touch screen makes easy reading and excellent looking. More than 10 groups of labeling parameters saved, makes setting rapidly.
Technical parameter:
| Model | VK-HRL |
| Label width | 10-150mm |
| Label length | 10-180mm |
| Labeling speed | 100-300pcs/min |
| Labeling accuracy | ±0.4mm |
| Suitable for product diameter | 6-25mm |
| Label reel inner diameter | 76mm |
| Label reel outer diameter | 360mm |
| Machine weight | 350kg |
| Power supply | 700W , 220V,50Hz/60Hz, 1phase |

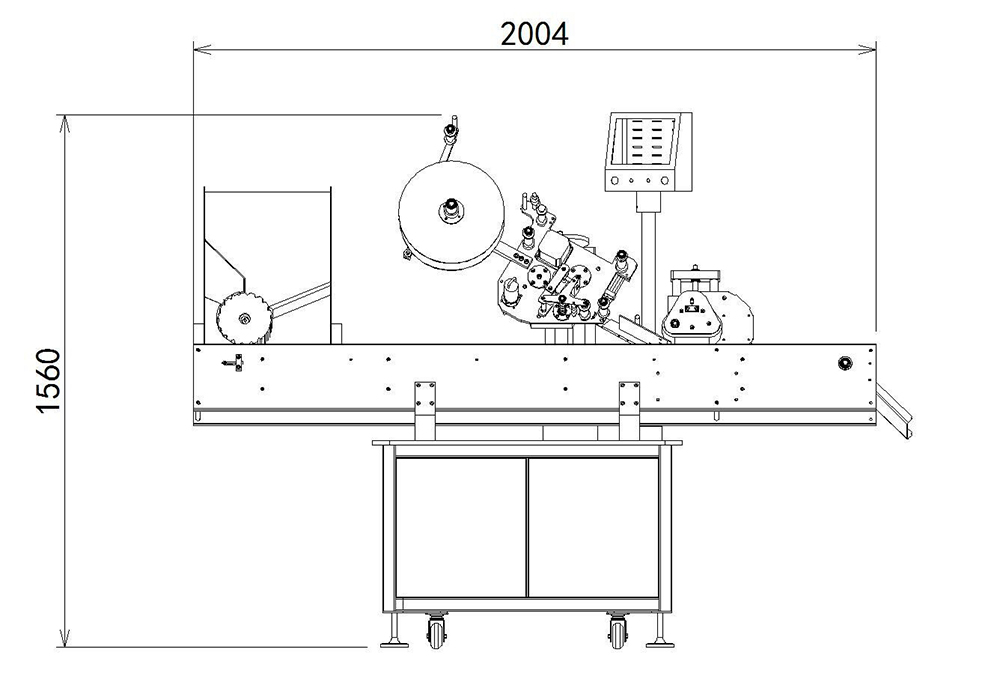

| Machine size(L×W×H) | 2000×700×1700mm |
| Control system | Japanese Mitsubishi PLC |
1. This labeller is designed for cylindrical body or bottles with small diameter. It cannot stand on conveyor steadily. Such as ampoule, injecting bottles, correction fluid bottles, dry cells, pens, and so on.
2. It is horizontal labeling, automatic feeding product with distribution device.
3. The machine will stop running automatically when no label. Advanced international control system make labeling in high stability and high speed and low rate of leaving out.
4. PLC with touch screen control, stable performance and easy to operate.
5. Used stainless steel material and aluminum alloy. Good appearance and durable to use.
Application
This series of products are suitable for the full-week or half-week automatic labeling requirements of products in the following industries: pharmaceutical industry, such as ampoules, oral liquid and other products; stationery, such as pen holder, solid glue and other products; cosmetics industry, such as lipstick , eyebrow pencil and other products; meat products industry, such as ham and other round products.
