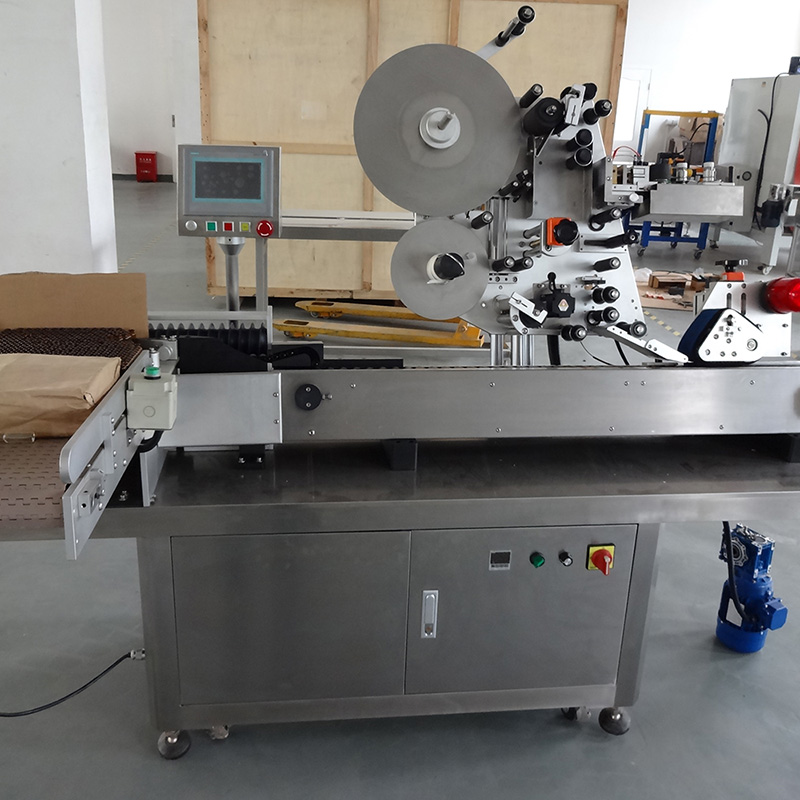

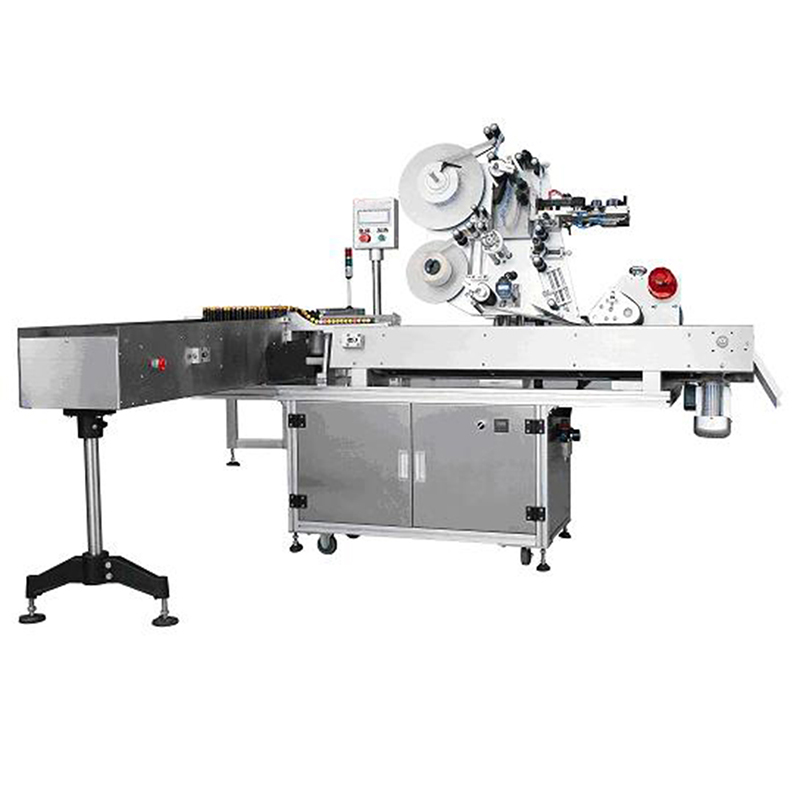

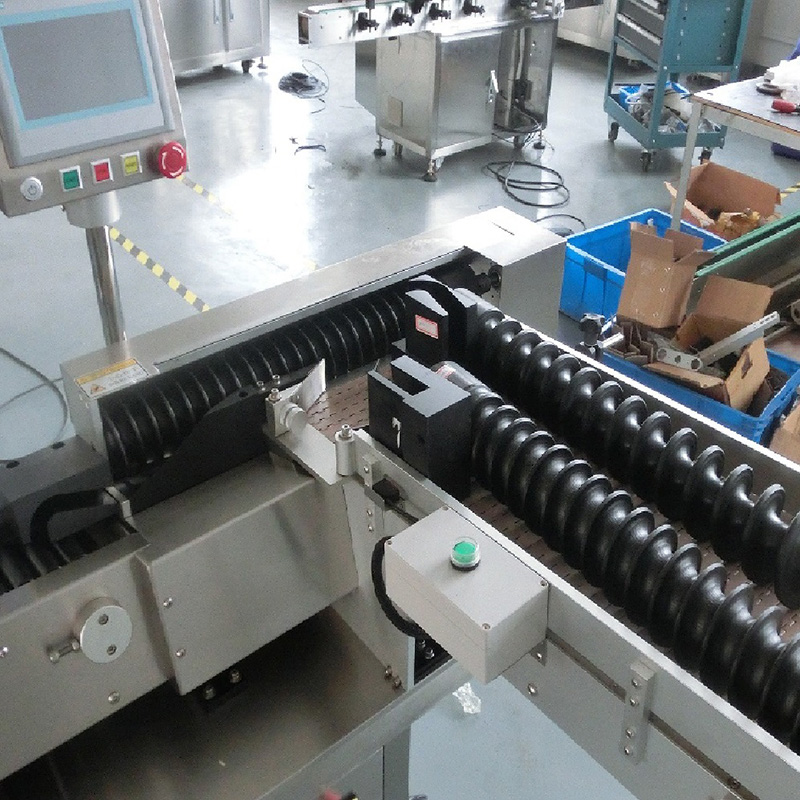

VK-HRL-H High Speed Horizontal Labeling Machine
Automatic horizontal labeling machine belongs to round bottle labeling machine, which is suitable for labeling the circumference and semicircle of unstable cylindrical objects. It adopts horizontal transmission and horizontal labeling to increase stability and improve labeling efficiency. The label can be printed with the production date, batch number and spray bar code. It can be equipped with inkjet printer to the conveyor belt, which can print the production date, batch number, bar code and other information on the product before or after labeling. Widely used in medicine, cosmetics, electronics, hardware, plastic and other industries. The machine is also suitable for assembly line production.
Output Speed: 20-500 pieces/minute depends on label and bottle size
Dimension: 2000×750×1650mm(L×W×H)
Function:
1. Advanced affinity man-machine interface system, easy operation, complete function, has the rich online help function.

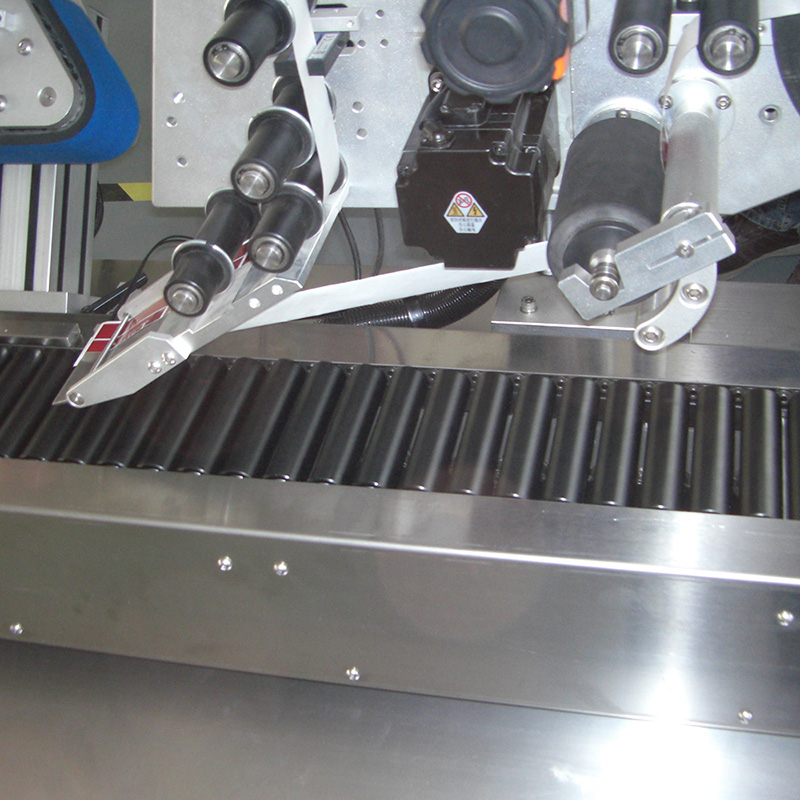

2. Special tilting feeding roller conveyor design, the paste item automatic positioning.
3. Automatic photoelectric detection, it has without label no stick and without label automatic correction or alarm automatic detection function, to prevent leakage and waste.
4. The machine structure is simple, compact, easy to operation and maintenance.
5. The machine adopts famous brand motor drive, the feeding label speed stability, reliability.
Technical parameter:
| Model | VK-HRL-H |
| Label width | 10-180mm |
| Label length | 10-200mm |
| Labeling speed | 500-600pcs/min |
| Labeling accuracy | ±0.5mm |
| Power supply | 1000W , 220V,50Hz/60Hz |
| Label reel inner diameter | 76mm |
| Label reel outer diameter | 300mm |
| Machine weight | 550kg |
| Machine size(L×W×H) | 3000×1500×1800mm |
| Control system | Japanese Mitsubishi PLC |
1. This machine Can fit for ampoule of pharmaceutical industry, schering bottles, oral liquid, blood vessels; Stationery such as pen, paste pen; In daily chemical industry such as lipstick, lip balm etc small cylindrical material for the wrap aroundor part of wrap of the automatic labeling requirement.
2. The whole machine adopts mature PLC control system to ensure the stable running in high speed; Touch screen makes easy reading and excellent looking. More than 10 groups of labeling parameters saved, makes setting rapidly.

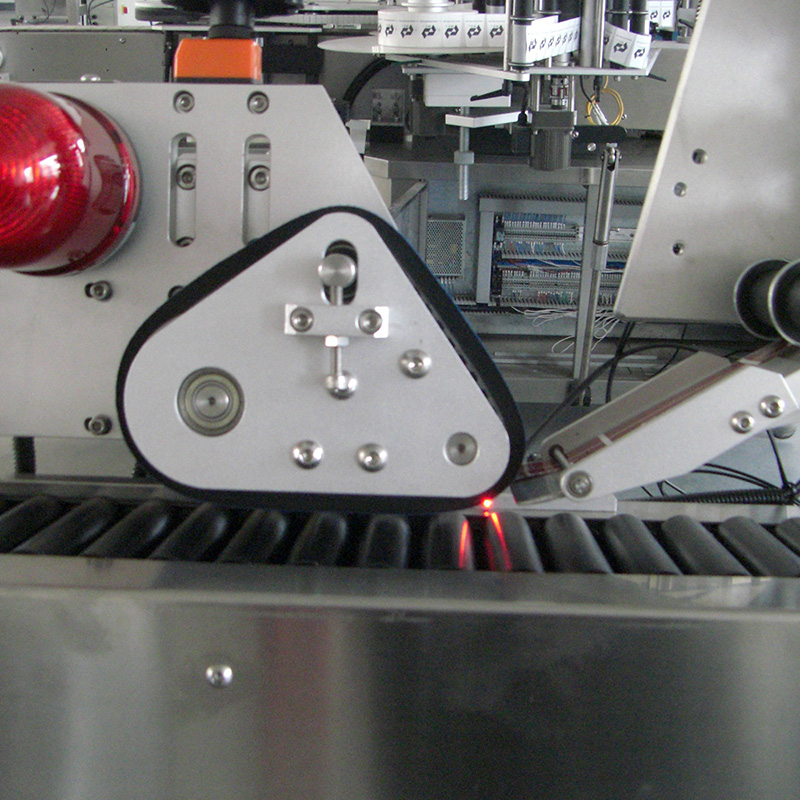

3. Labeling is performed smoothly with no creases with the use of elastic cotton idler wheel;
4. Automatic photoelectric detection functions including canceling labeling without objects there and stopping running or raising an alarm without labels to use to avoid omitting or wasting labels.
Main Configuration
| No. | Name | Brand |
| 1 | PLC control system | Siemens or Mitsubishi |
| 2 | Servo motor | Raynen (Shanghai) |
| 3 | Servo motor driver | Raynen (Shanghai) |
| 4 | Frequency changers | Delta(Taiwan) |
| 5 | Photoelectricity | Panasonic(Japan) |
| 6 | labels photoelectric sensor | FOTEK(Taiwan) |
| 7 | Touches screen | Siemens or WEINVIEW (Taiwan) |
| 8 | Conveyor motor | TAIBANG(Taiwan) |
| 9 | Bearings | NSK(Japan) |
| 10 | Stainless steel material | 304SUS |
| 11 | Aluminium alloy | Surface anode gush arenaceous technology |
