Function:

1. Equipped with PLC touch screen control panel, the customized interface simplify machine debugging process. It is also more convenient to adjust working data according to working status in real time.

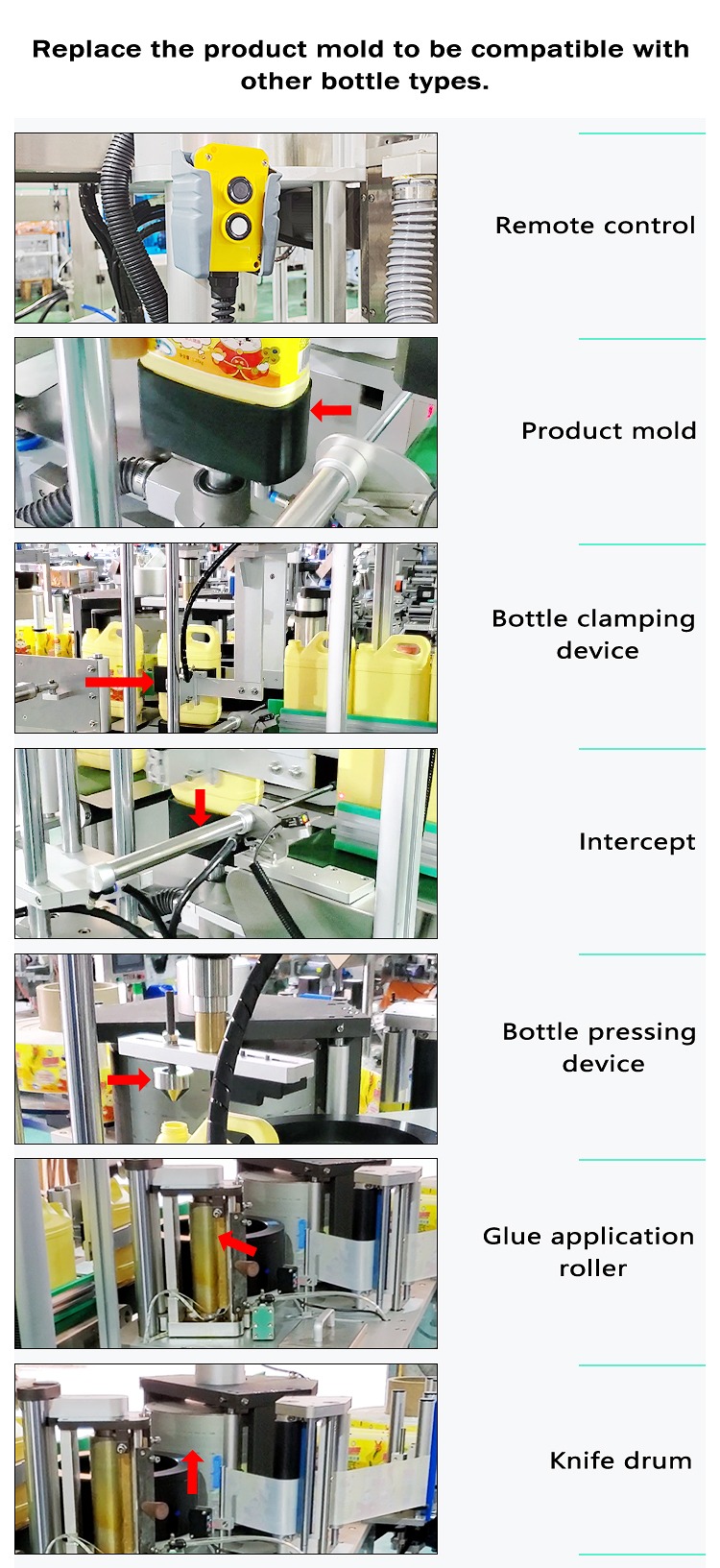

2. Fixing mold is customized according to bottle size, bottles will be conveyed to the mold and be rotated to finish labeling work. This kind of labeling method has high working accuracy.

3. Equipped with the hot melt glue supply system, this can apply glue on both ends of the label, ensure the labeling accuracy and consistency

Technical Parameter:

Machine Model	VK-HMGL-S
Power supply	Three-phase 380V 50 Hz 8000W
Maximum labeling speed	About 1200-1800/h (production speed can be adjusted according to the actual situation)
Posting accuracy	±1mm
Label maximum width (height)	180mm (customizable)
Label maximum length	750mm
Label maximum outer diameter	600 mm
Label minimum diameter	152mm
Glue type	hot melt adhesive, only apply glue on both ends of the label
Gluing temperature	120-160℃
Label type	OPP film label,paper-plastic composite film label,paper label
Labeling product type	Square bottle, large round bottle, oval bottle, etc
Labeling machine host size	About 4650mm *1650mm *1650mm (L*W*H)
Machine weight	About 1500 kg
