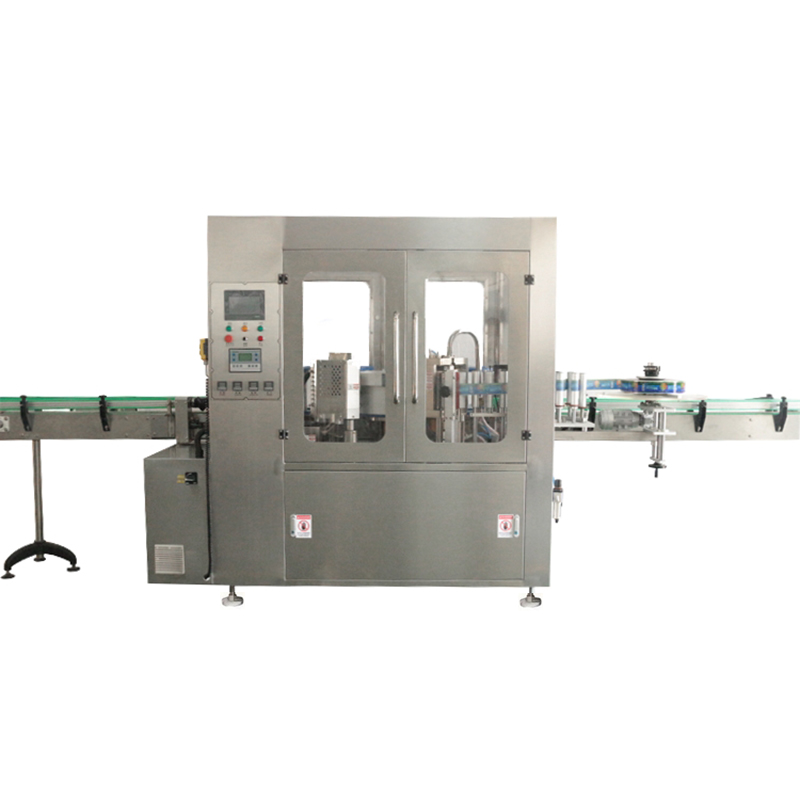

VK-HMGL-L Linear Hot Melt Glue Labeling Machine

VK-HMGL-L Automatic Linear Hot Melt Glue Labeling Machine

VK-HMGL-L Linear hot melt glue adhesive labeling machine is the newest continuous operation of the labeling machine.

The mainly used for container labeling cylindrical shape of detergents, beverages, mineral water, food etc. The material of label is using environmentally material of OPP films. It can be automatically oxidative decomposition and reduce production costs by more than 30 percent.

Labeling machine is control by PLC touch screen, all electric eye is using imported advanced configuration. This labeling machine with high speed, high accuracy, stable performance, easy to operate and look elegant appearance.

Output Speed: 100-200 pieces/minute depends on label and bottle size

Dimension: 3176L*1500W*2050H(mm)

Suitable for different industries for mineral water, soft drink, seasoning, wine cosmetics and others. It can stick many kinds of shape of PET bottle, tin can and other containers.

This hot melt glue labeler is widely suitable for different material of container and label.The label cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is the most economical model in cost to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, for example changing the label is only needed to change the program, the products concept of that the equipment is designed for users is embodied in everywhere.

This equipment adopts the current labeling machine type, the most advanced, the most precise method for the volume label of OPP and other plastic material as base material, through the automatic correction instrument and various kinds of high precision photoelectric sensing elements to control the label location precision, adopt scientific institutions to complete automatic cutting and automatic send logo, and will be in the form of roller coating label solid, reliable and accurate paste on the packing materials.

Function:

1. The roller coating way more save than spraying way on the usage of glue, glue it cloth glue more uniform, more plentiful, so that the joint more smooth, more strong.

2. In the aspect of control system using more advanced than other coating way mechanical and inductance double security agencies, labeling effect is more reliable, reduces the label attrition rate.

3. The device is particularly suitable for PET plastic bottles and other hard surface bonding packing materials, also suitable for super long, circular plastic mark paste.

4. Advanced labeling method determines the overall structure of the superior design, making the equipment from the production of precision, production efficiency and service life are the corresponding, is the most excellent models of similar products at home and abroad is alternative set of label and the best choice of the spray glue labeling machine, the effective ways to realize environmental protection, high efficiency, energy saving.

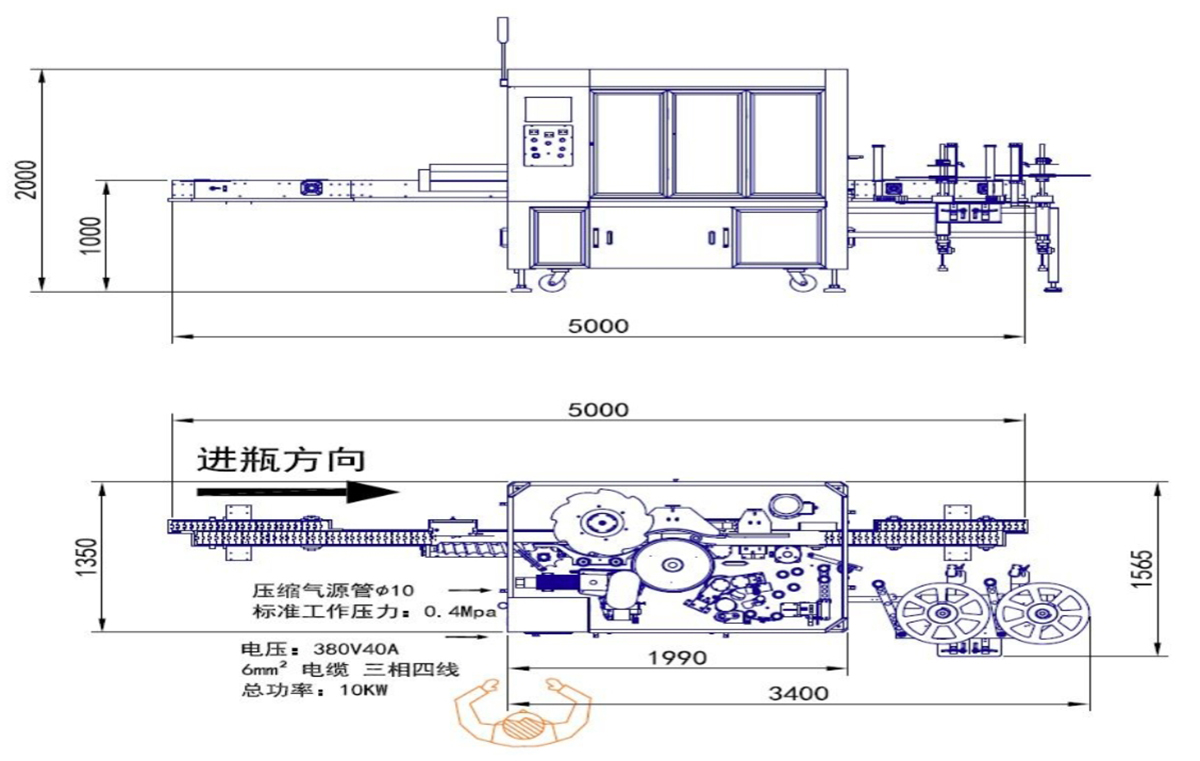

Drawing:

Technical Parameter:

Model	VK-HMGL-L100	VK-HMGL-L150	VK-HMGL-L200	VK-HMGL-L250
Speed of labeling	6000BPH	9000BPH	12000BPH	12000BPH
Power	AC 3ψ380V50Hz
Efficiency	≥99.5	≥99.5	≥99.5	≥99.5
Accuracy of labeling	±1mm	±1mm	±1mm	±1mm
Diameter of bottle	40-110mm	40-100mm	40-100mm	40-100mm
Material of bottle	Glass, Metal, Plastic	Glass, Metal, Plastic	Glass, Metal, Plastic	Glass, Metal, Plastic
Shape	Round	Round	Round	Round
Label material	OPP,BOPP,PAPER	OPP,BOPP,PAPER	OPP,BOPP,PAPER	OPP,BOPP,PAPER
Label thickness	0.035-0.05mm	0.035-0.05mm	0.035-0.05mm	0.035-0.05mm
Label height	40mm-180mm	40mm-150mm	40mm-180mm	40mm-150mm
Inside diameter of paper tube	6inch	6inch	6inch	6inch
Air source	0.5Mpa	0.5Mpa	0.5Mpa	0.5Mpa
Rated power	10KW	10KW	12kw	12kw
Machine size	3176L1500W2050H(mm)		5000L1600W2000H(mm)
Weight	1800kg	2000kg	3000kg	3200kg

Details:

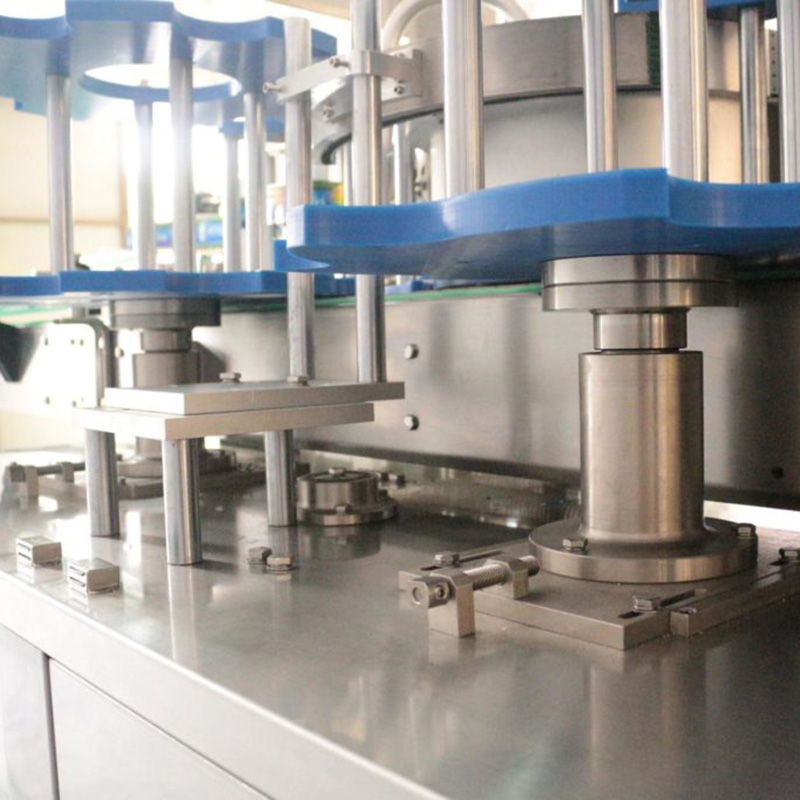

Gear Transmission

The wheel labeling method is adopted, the labeling process is realized along the guide rail through label roll conveying, realize accurate label cutting can be multi-dimensional adjustment.

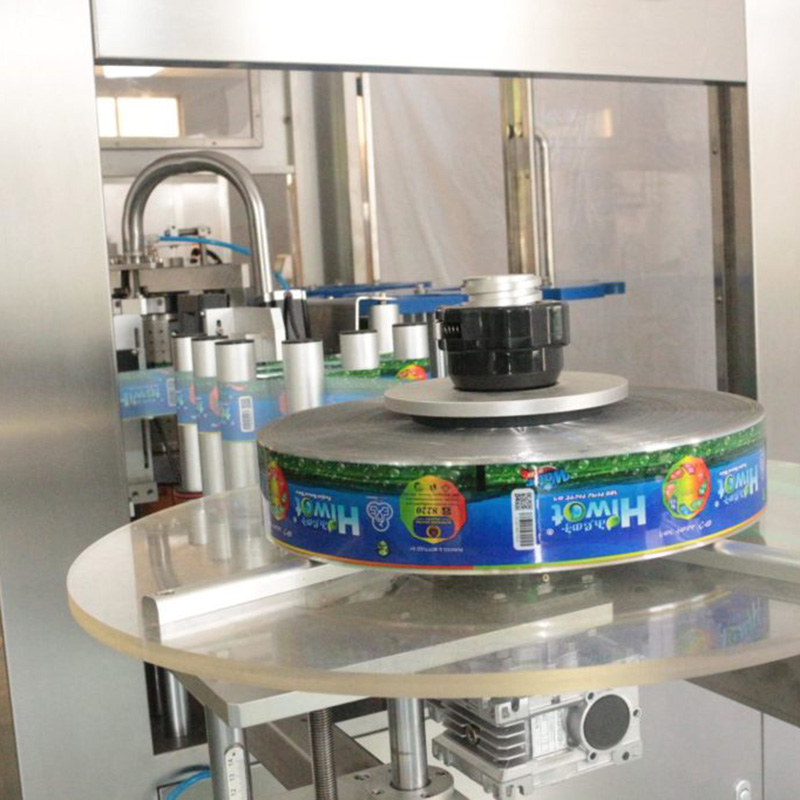

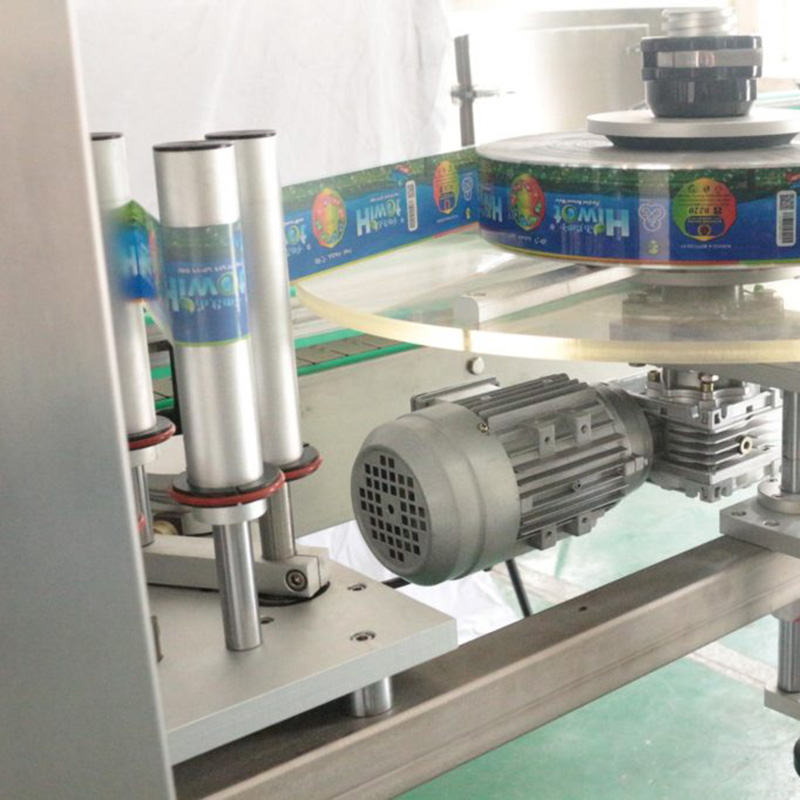

Label Alignment System

Adjustable column can achieve the flexible adjustment of label type, improve the efficiency and make sure accurate label position, imported Germany alignment system ensure labels in same position, improve accuracy and good appearance, sensor detect synchronously.

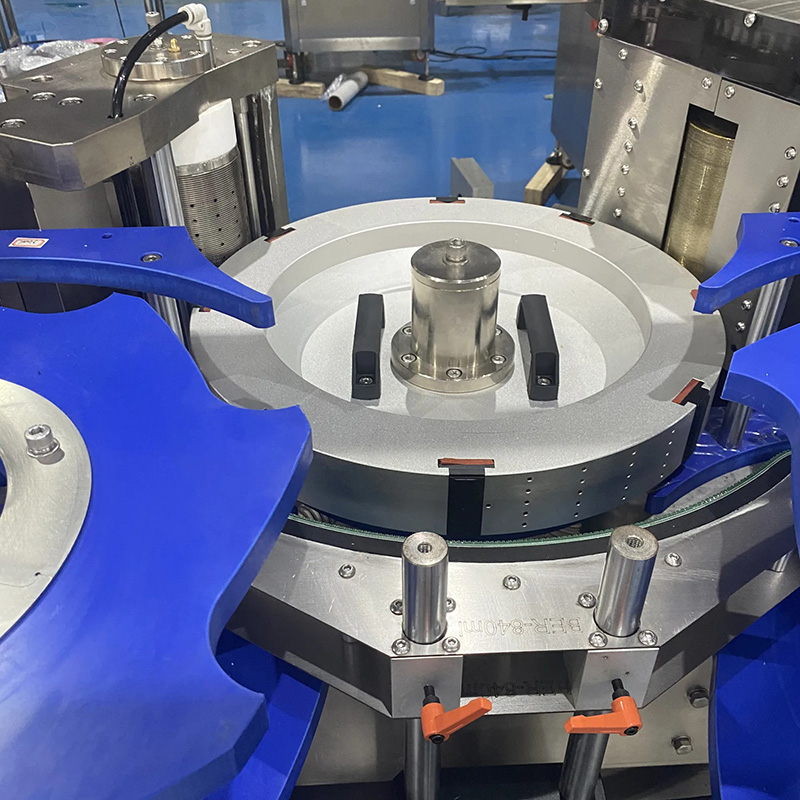

Knife Drum

With the knife drum, the machine can ensure the high precision. When the measuring sensor detects the bottle, the label servo will output the label and cut the label according to the designed size.

Features:

Body is built with stainless steel, steel construction stable and not rust.
The whole machine used quick release type of construction. In order to change and adjustment easier.
Centralized lubricating system for simple and effortless on maintenance, lubrication and cleanness.
With photo-sensors to detect label output and automatically self-regulated production speed for integrating production line with other machines.
Used stable and reasonable of compiling program. It can be suitable for operation 24 hours.
The bottle working mode is linear Input and output type.
Equipped with the Torque limiter would control the torsion range abnormal situation of machine. It will reduce the accident for operate.
Roller coating, gluing balance and glue saving.
Alarm system: Caution light & buzzer for out of label, Label break and door open!
Cut label system: Used multiple cure of cut system organization. (It is not quick-wear part)
The machine production speed is control by the machine input bottle signal. It is automatic transmission. If input bottle stock, then the machine will be increase speed. If input bottle did not have bottle the machine will transmission speed slow.
The machine production speed is control by the machine input bottle signal. It is automatic transmission. When the machine output bottle stock then the machine will be transmission speed to slow. If output bottle is smooth the machine will be increase the speed.
