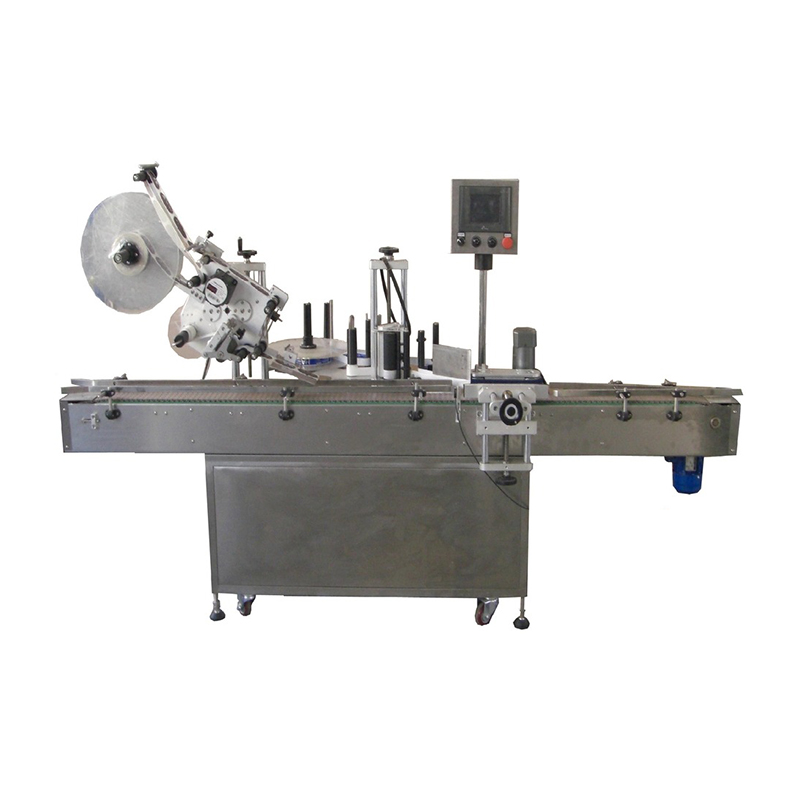

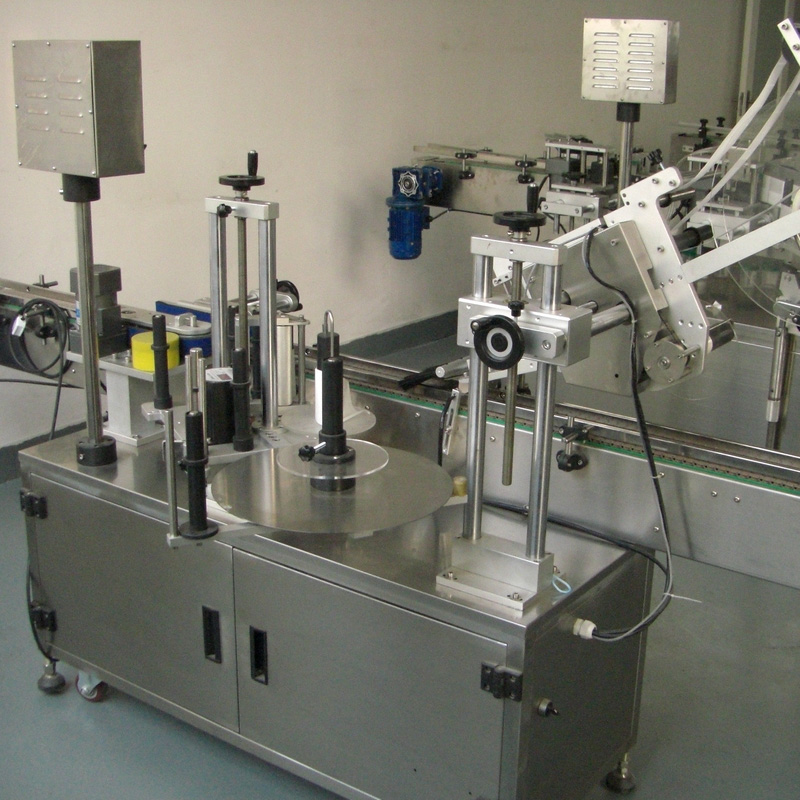

VK-FTL-VR Top Side And Round Bottle Label Applicator Machine

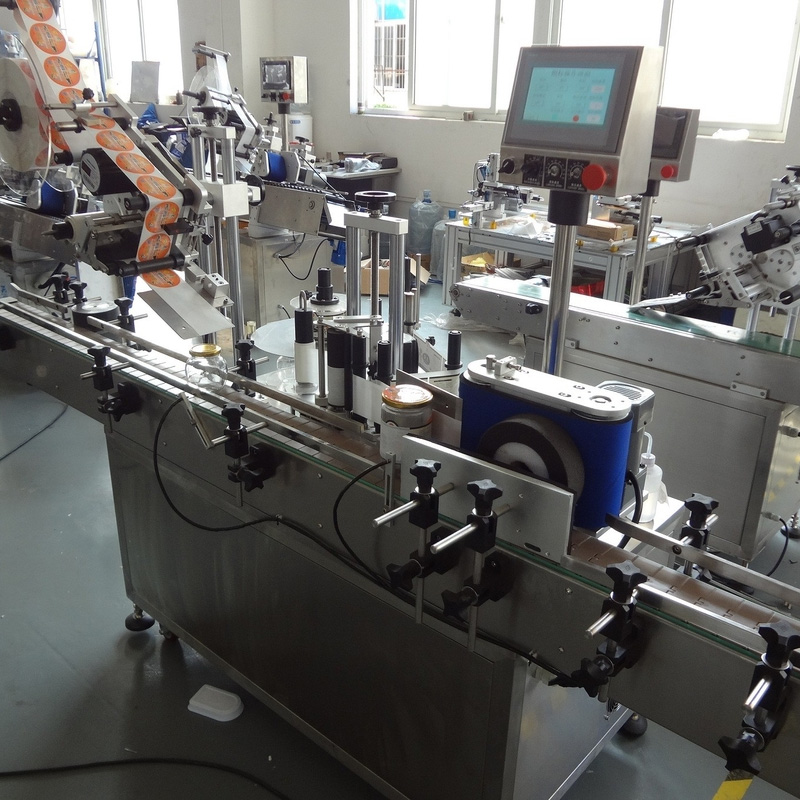

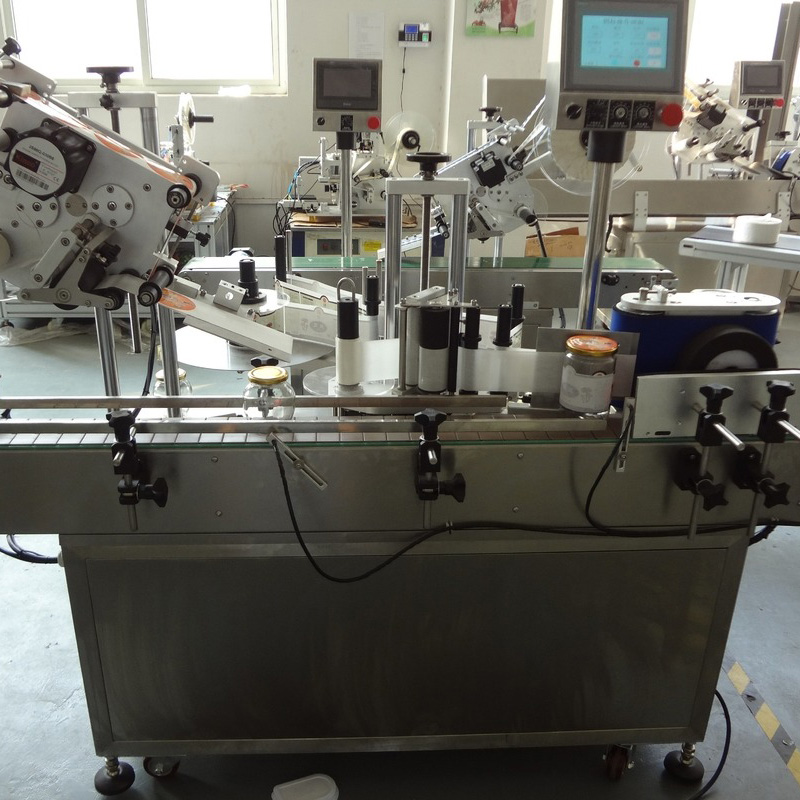

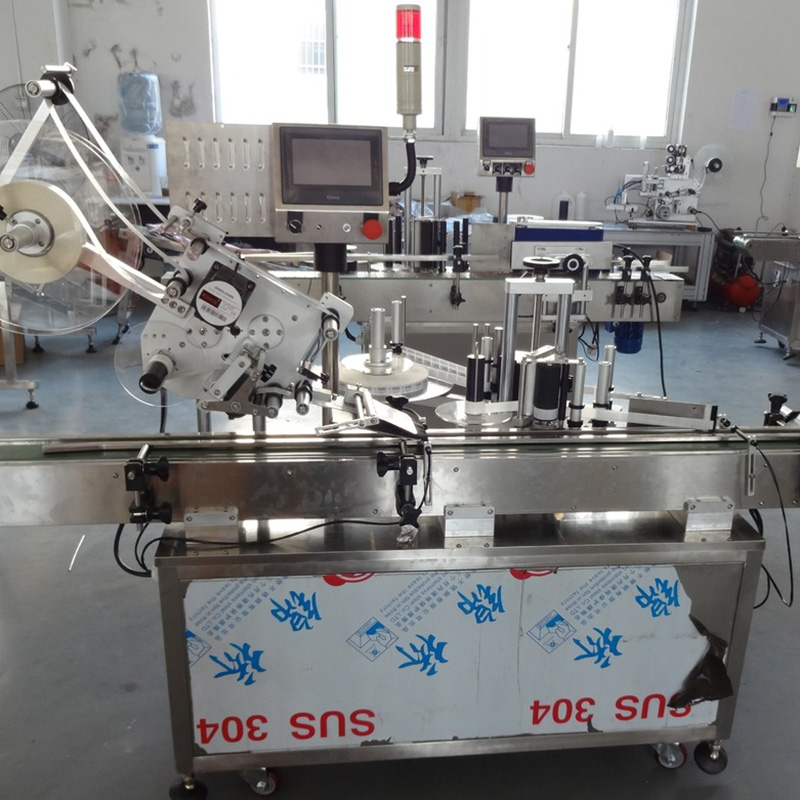

VK-FTL-VR Top Side And Round Bottle Labeling Machine

This machine suitable for labeling round bottles, single label and double label can be pasted, and the distance between front and back double label and top sides can be adjusted flexibly. With tapered bottle labeling function; The perimeter location detection device can be used to label the designated position on the perimeter surface. The equipment can be used alone, also can be used with packaging line or filling line.

Output Speed: 30-60 pieces/minute depends on label and bottle size

Dimension: 2500*1050*1760mm

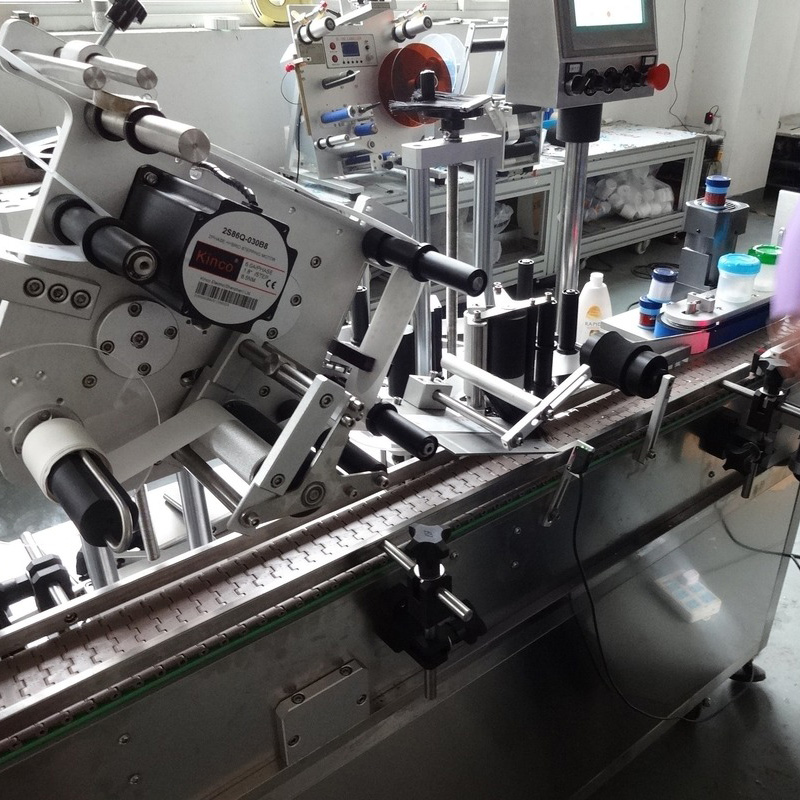

Function:

1. Machine has two labeling heads, one is on the top, other is at side, it stuiable for round product side and top labeling,can do for round bottle wrap around labeling together, such as fruit bottle, food can, food container. almost used in medicine, daily chemical industry and so on.

2. PLC and HMI control system, easy operation and stable. 20 units parameter setting and save, realizes modern operation with English HMI. can automatically complete bottle separation, label delivery belt, synchronous separation label etc.

3. Servo motor for label feeding, high labeling accuracy, fast labeling speed, long-time using.

4. Automatic stop when label breaks down or runs out, Malfunction self-testing and display with alarm.

5. All electrical configurations are big international brand, such as Mitsubishi, SIEMENS, WEINVIEW, Delta, Yaskawa, Keyence, Omron and so on.

6. Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high
corrosion resistance and never rust.

7. Machine can use alone or connect with filling packing line use, also can connect with turntable using. It can not only be used on a single machine, but also be matched with the production line. Achieve self-adhesive labels and self-adhesive films on the side of the product side, the large curved side of the side, and the square peripheral surface.

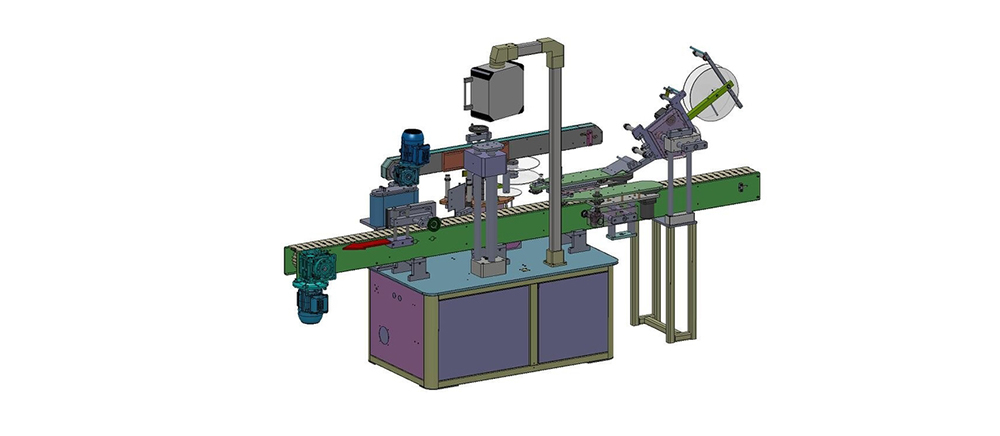

Technical parameter:

Model	VK-FTL-VR
Labeling speed	30-60PCS /min(depends on label and bottle size)
Bottle width	30-120mm (can be customized)
Bottle height	40-400mm
Label Size	(L)25-350mm* (H)20- 180mm (can be customized)
Labeling precision	＜0.5mm
Roll Inner	φ76mm
Roll Outside Diameter	φ360mm
Power supply	AC220V 50Hz/60Hz, 1phase, 1200W
Machine Size	About 240010501760mm
Packing Size	About 25009501650mm
Net weight/Gross weight	About 460kg/500kg

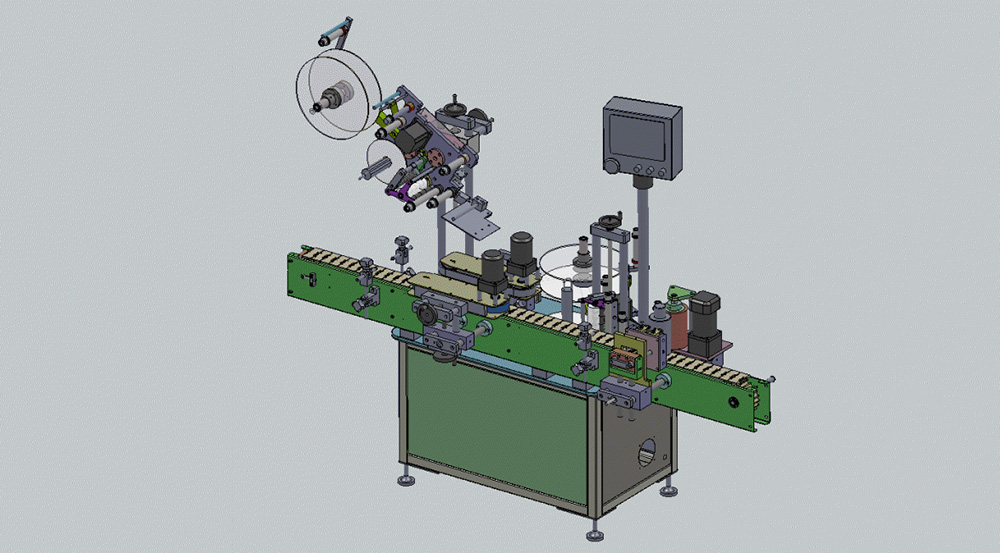

Working principle

The sensor detects the passing bottles and send a signal back to the control system.Atthe appropriate position, the system controls the label to be sent out and attached tothe suitable position .The product pass through the labeling device and the label isattached to bottles well.

1. Machine can do two labels labeling simultaneous, one for bottle body, one for bottle neck or top.

2. Simple adjustment, configuration before and after, left and right and up and down directions, plane inclination, vertical inclination adjustment seat, different bottle shape switch without dead Angle, simple and quick adjustment；

3. Automatic bottle division, star wheel bottle division mechanism, effectively eliminate the bottle itself error caused by the bottle is not smooth, improve the stability；

4. Touch screen control, man-machine interaction interface with operation teaching function, simple operation；

5. Intelligent control, automatic photoelectric tracking, automatic label detection function, to prevent leakage and label waste；

6. Solid health, mainly made of stainless steel and senior aluminum alloy, solid quality, in line with GMP production requirements.
