Working Process

Core working principle: the sensor detects the product passing by, sends back the signal to the labeling control system, the signal is processed by PLC, and then sends out the label to be attached to the set position of the product at the appropriate moment, the product flows through the labeling device, and the label is covered firmly, and the action of attaching a label is completed.

Operation process: put the product (can be connected to the assembly line) -> product conveying (automatic realization) -> product guidance (automatic realization) -> product inspection (automatic realization) -> labeling (automatic realization) -> labeling (automatic realization) -> collection of labeled products (automatic realization)

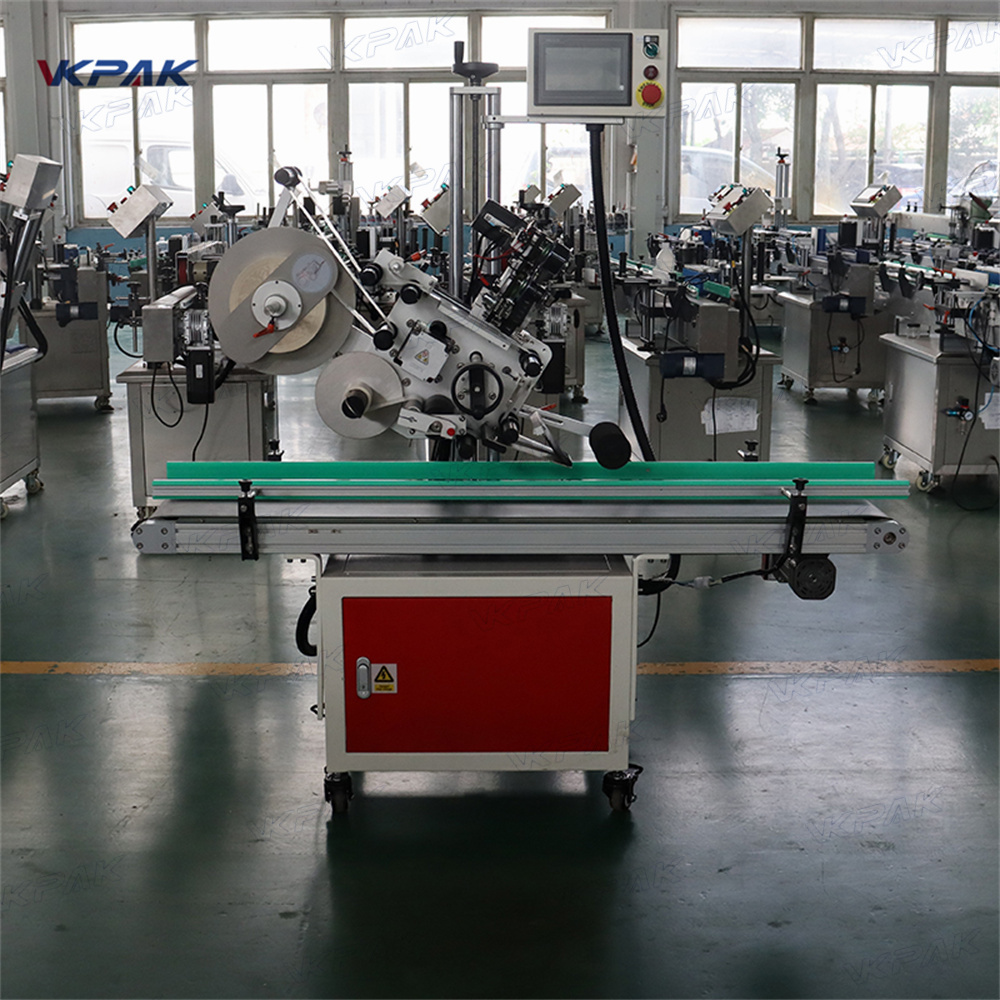

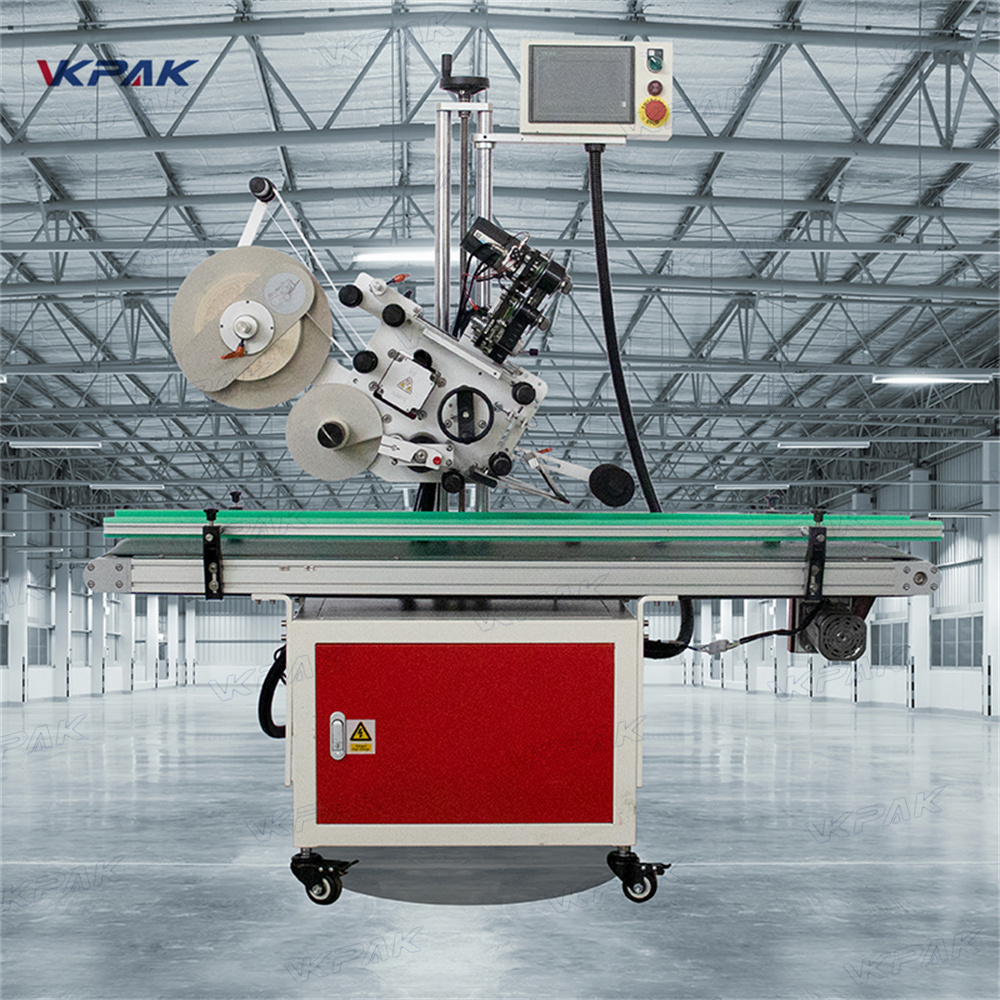

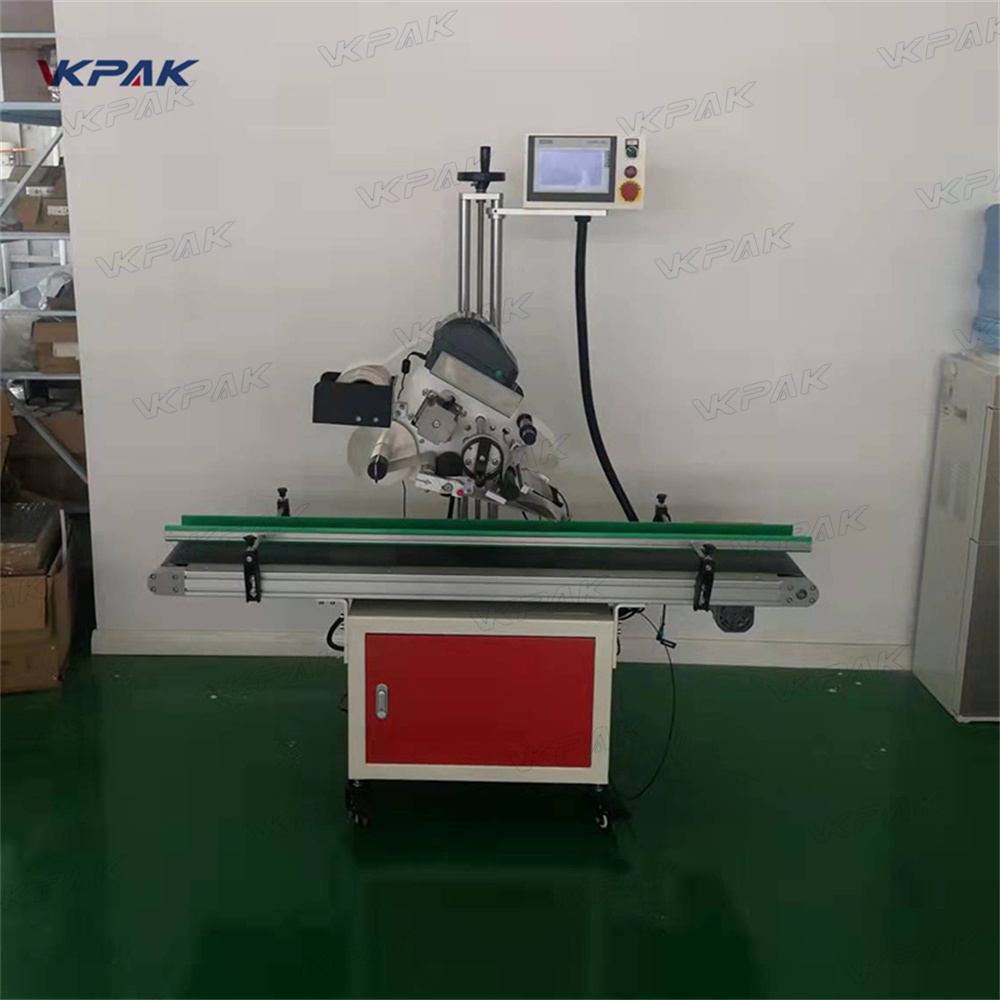

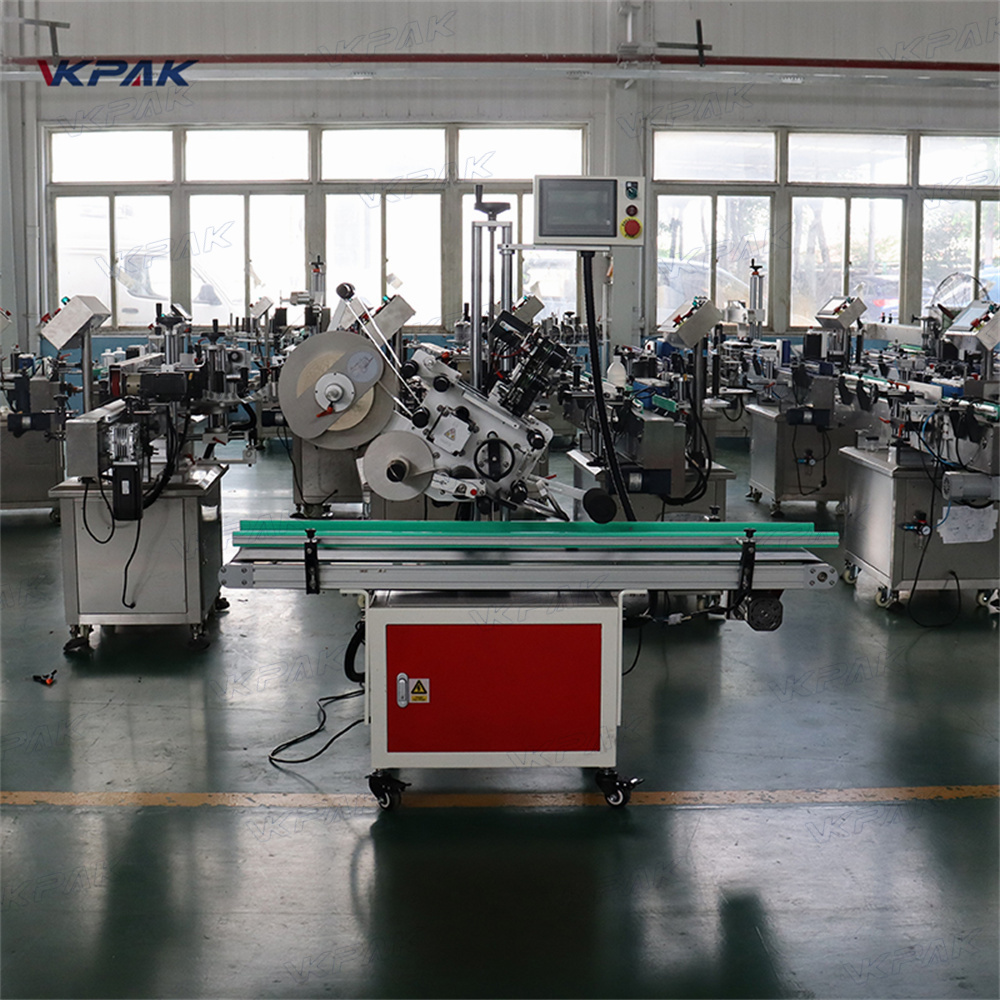

Detail Images:

Advantages:

Wide range of application, can meet the product width of 30mm ~ 200mm product plane labeling and self-adhesive film, replace the labeling mechanism can meet the uneven surface labeling;

Labeling precision, subdivision stepper motor or servo motor drive labeling, labeling precision; labeling tape winding deviation correction mechanism design, to ensure that the label traction process does not shift left and right; eccentric wheel technology applied to the traction mechanism, traction labels do not slip, to ensure that the labeling precision;

Sturdy and durable, the use of three rod adjustment mechanism, make full use of the stability of the triangle, the machine is solid and durable;

High stability, Panasonic PLC + display control touch screen + U.S. Leuze electric eye composed of advanced electronic control system to support the equipment 7 × 24 hours of operation;

Adjustment is simple, the design of the degree of freedom adjustable adjustment seat, the conversion between different products becomes simple and time-saving;

Flexible application, can be single machine production or connected to the assembly line production, production site layout is simple;

Intelligent control, automatic photoelectric tracking, with nothing not labeling, no labeling automatic correction and labeling automatic detection function, to prevent leakage and labeling waste;

Powerful function, with production counting function, power saving function, production number setting prompt function, parameter setting protection function, convenient production management;

Technical parameter:

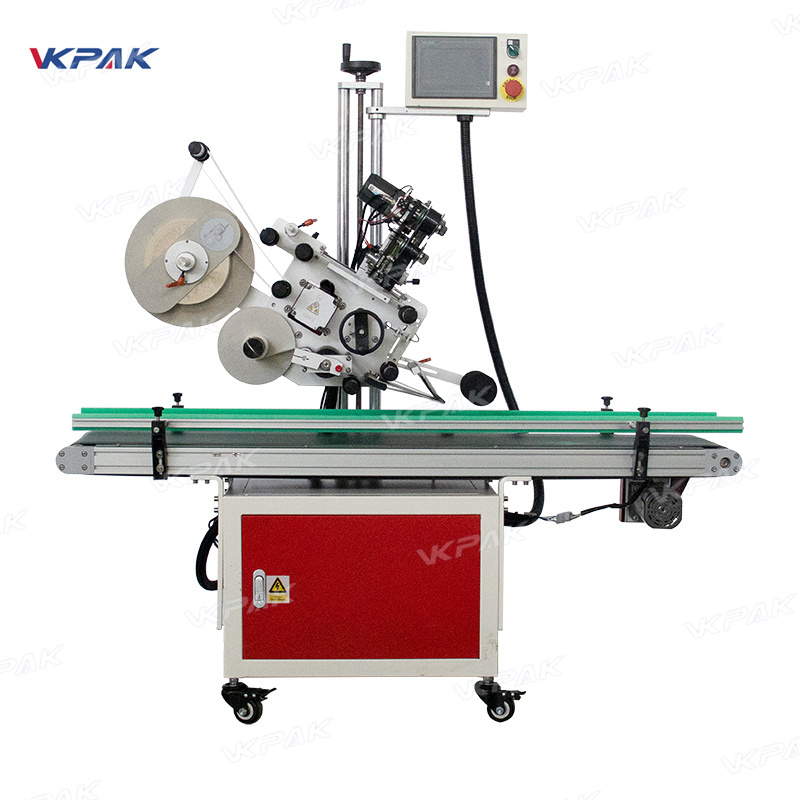

Model	VK-FTL-M
Labeling Speed(pcs/min)	30-80(related to product and label size)
Labeling Accuracy(mm)	±1.0mm
Suitable Label Size(mm)	(L)10-300mm(H)10-200mm
Suitable Products Size	(L):40-400mm, (W):40-200mm, (H):0.5-120mm
Roll Inside(mm)	Φ76mm
Roll Outer Diameter(mm)	Φ300mm

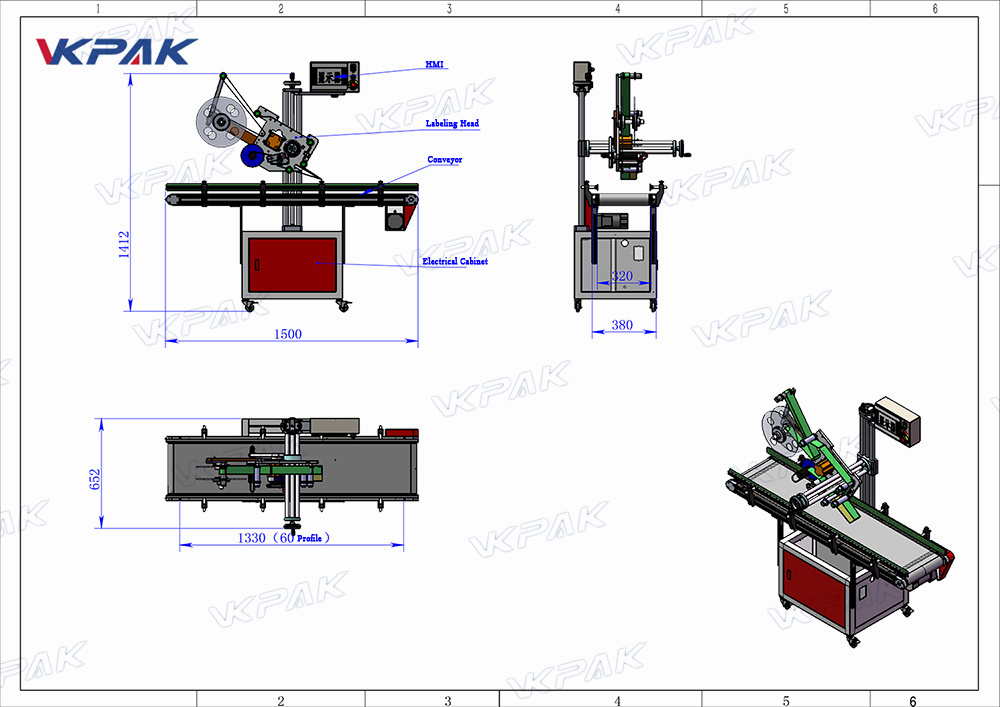

Machine Size(mm)	(L)2000*(W)850*(H)1350(mm)
Power Supply	AC 220V 50Hz/60Hz
Operation Direction	left to right or right to left
Net weight	About 350Kg
Label material	self-adhesive sticker, opaque or transparent label
