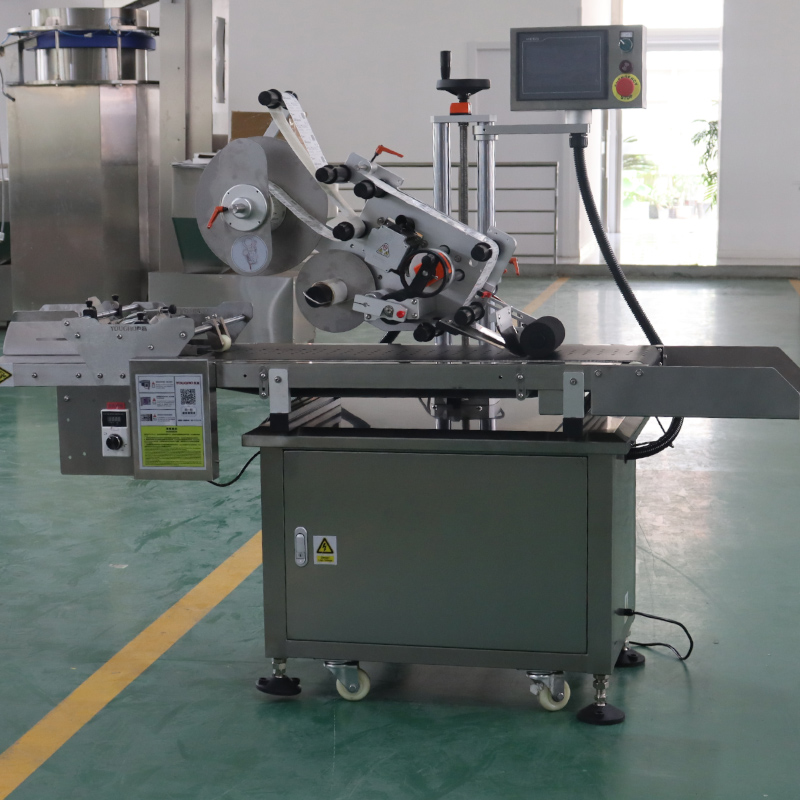

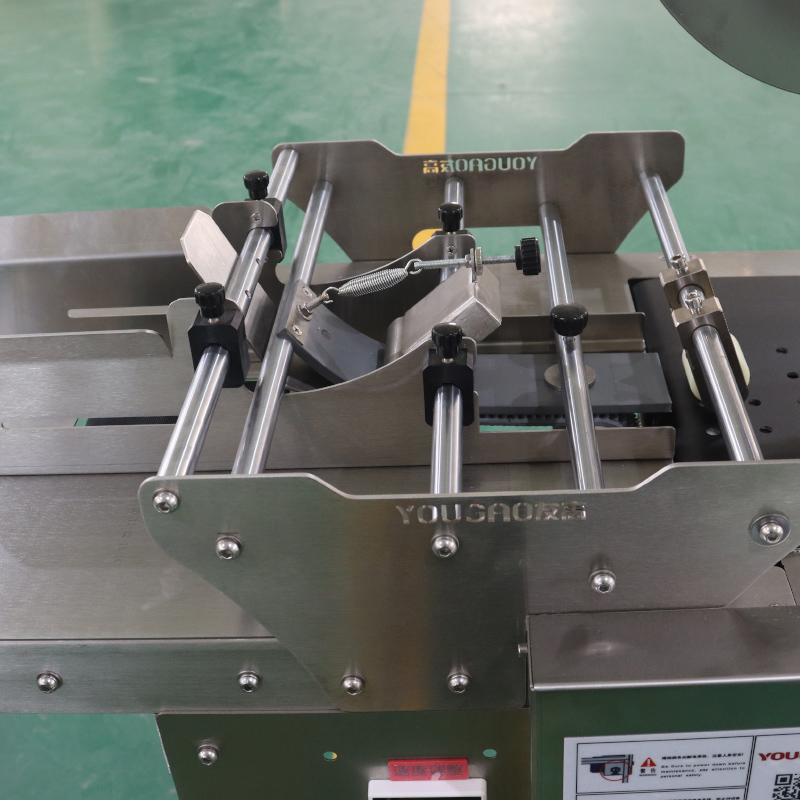

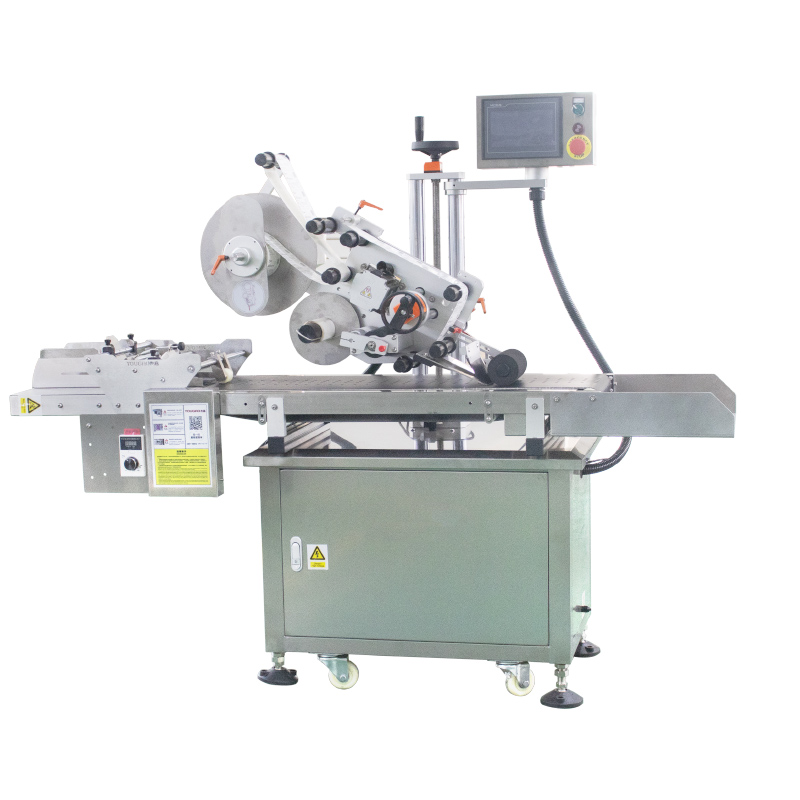

VK-FPL Flat Paging Labeling Machine
The paging and labeling machine, suit for unshaped box, unshaped carton, bags, tags, card and so on. This label applicator designed for sticking labels on flat top side surface of plastic bags, stand up pouch, clothing hand tag, paper box etc. It can be selected whether to be equipped with a paging machine according to production needs. This pouch labeling machine has high working speed which can label 60-100 pieces/min, with this, you can improves your working efficiency greatly.
Output Speed: 60-100 pieces/minute depends on label and bottle size
Dimension: 2000*750*1500mm
Function:
1. Optional circumferential positioning detection device to achieve circumferential positioning labeling. Optional ribbon coder and inkjet printer can be used to print the production batch number and other information at the same time, reducing the packaging process and improving production efficiency. Widely used in food, cosmetic, chemical and pharmaceutical industries.
2. Automatic labeling machine equals 50 workers.
3. Auto collection product structure, It can auto collection labeled cards and bags. It also has a counting function.
4. No bag coming, not labeling, automatic detection, high accuracy labeling, fast labeling speed.

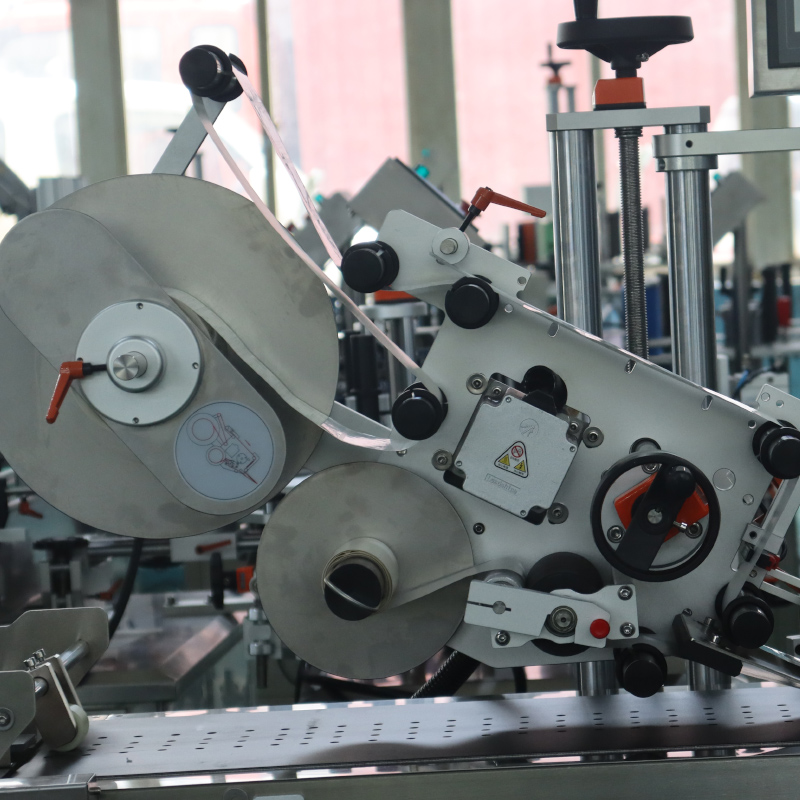

5. Machine has one or two or three labeling head for different labels, inkjet or date coder printing function for optional.
6. In order to ensure zero-risk purchase of this machine, we have standard model in stock, welcome customers to send samples to us, free trials, and take video to you for confirm. Place an order after you appropriate.
Technical parameter:
| Machine Type | VK-FPL |
| Labeling Accuracy | ±1mm |
| Labeling Speed | 60-100 pieces/minute |
| Applicable Product Size (Length) | 40mm~280mm |
| Applicable Product Size (Width) | 40mm~200mm |
| Applicable Product Size (Height) | 0.2mm ~150mm |
| Applicable Label Size | Length: 6mm~250mm |
| Bottom paper width: 10mm ~130mm | |
| Inner Diameter Of Label Roll | 76mm |
| Label Outer Diameter | 280mm |
| Overall Size (length*width*height) | 2000*750*1500mm |
| Applicable Power Supply | 110-230V, 1phase |
| Total Weight | 300Kg |
Main Parts
| NO. | Name | Unit | Brand |

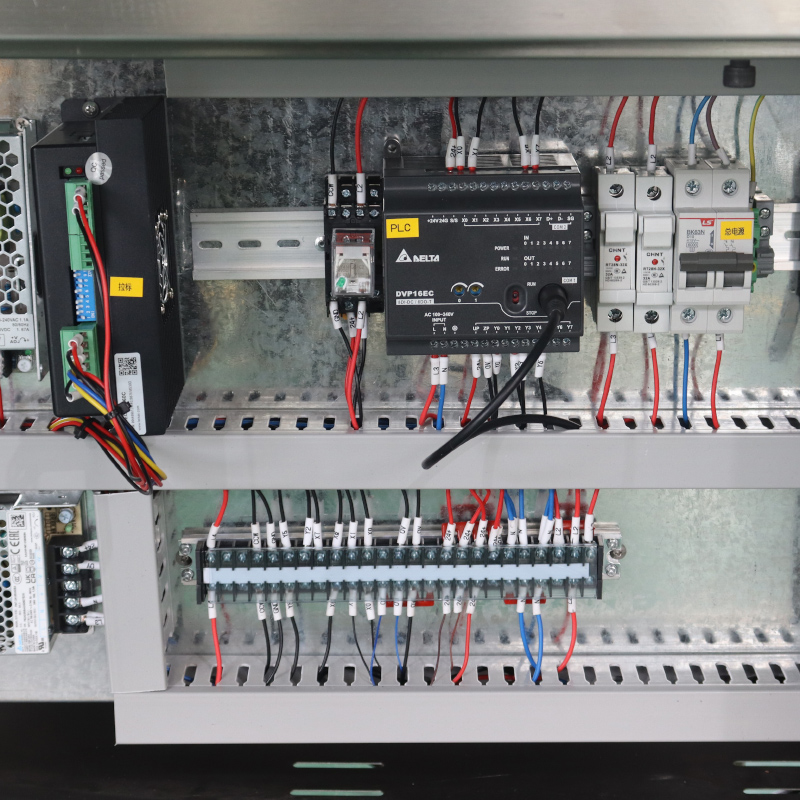

| 1 | PLC control system | 1set | Mitsubushi (Japan) |
| 2 | stepper motor | 1set | KINCO (Germany) |
| 3 | stepper motor driver | 1set | KINCO (Germany) |
| 4 | Frequency changers | 1set | Delta(Taiwan) |
| 5 | Photoelectricity | 1set | KEYENCE (Japan) |
| 6 | labels photoelectric sensor | 1set | FOTEK(Taiwan) |

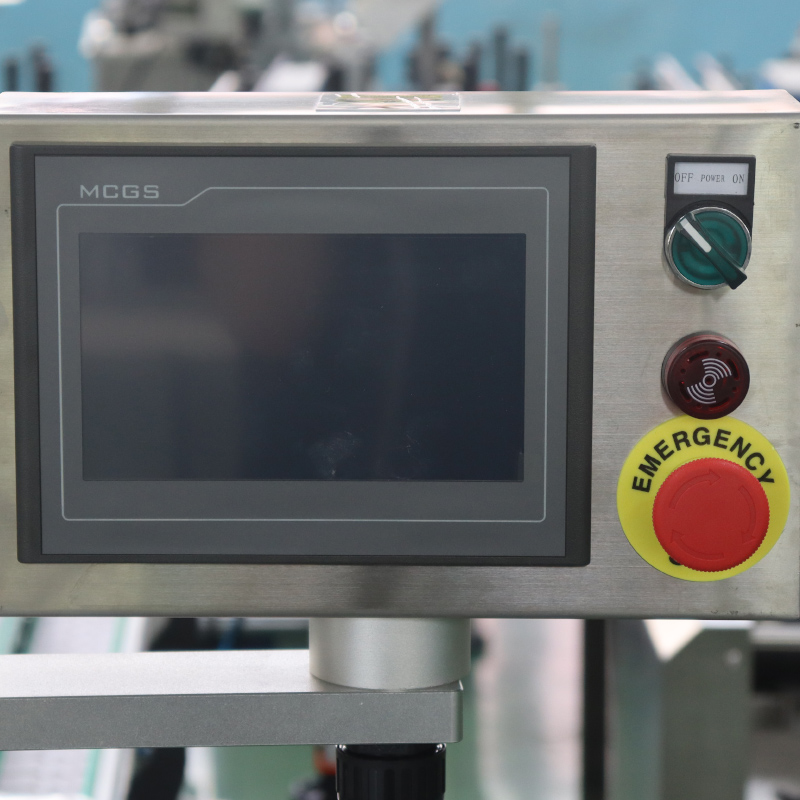

| 7 | Touches screen | 1set | WEINVIEW (Taiwan) |
| 8 | Bearings | 1set | Japan |
| 9 | Stainless steel material | 1set | 304SS |
| 10 | Aluminium alloy | 1set | Surface anode gush arenaceous technology |
