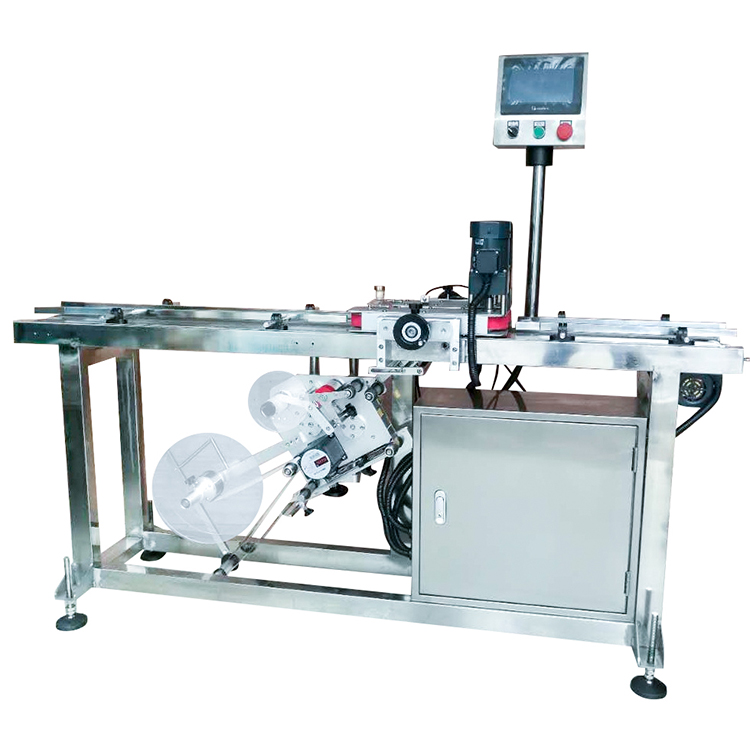

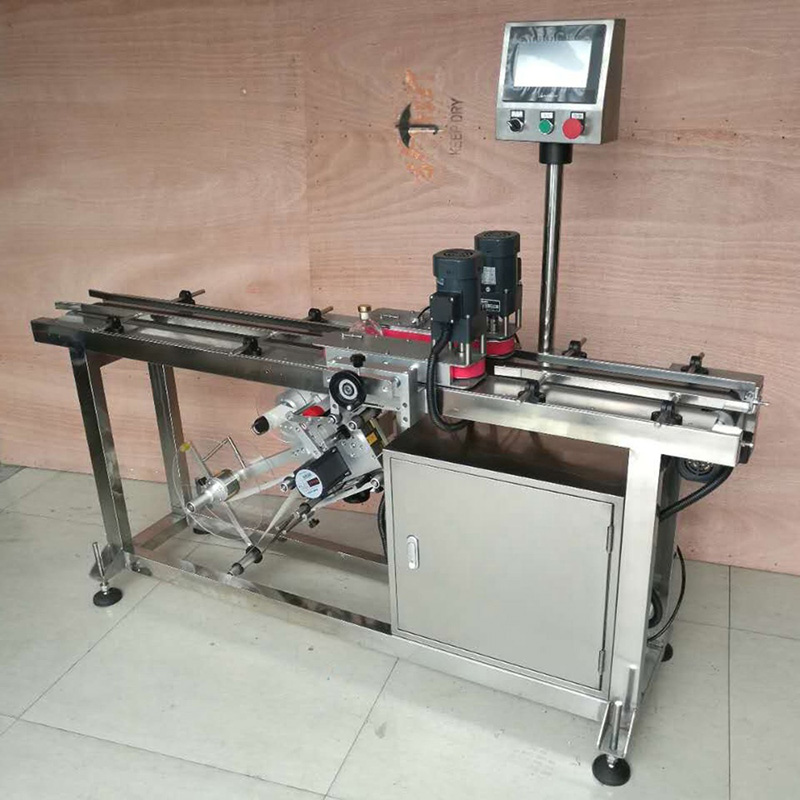

VK-FBL Flat Bottom Label Applicator Machine
Automatic bottom labeler is suit for different kinds and size objects labeling bottom surface, such as perfume bottle, aloe jar, dental floss box or carton and so on. Machine can customized as requirements, longer or shorter or others. Machine can be operation alone or connect with production line, full automaticly running.
Output Speed: 30-100 pieces/minute depends on label and bottle size
Dimension: 2000*750*1550mm
Function:
1. The labeling machine be widely applicable to on flat for the pharmaceuticals, daily chemicals, food & beverages industries.
2. The labeler will automatically detects the label size and set the appropriate labeling parameters – a very useful feature for users with multiple products to label.
3. It is an optimal combination of speed, accuracy, stability, GMP standards, ease of use, and flexibility.

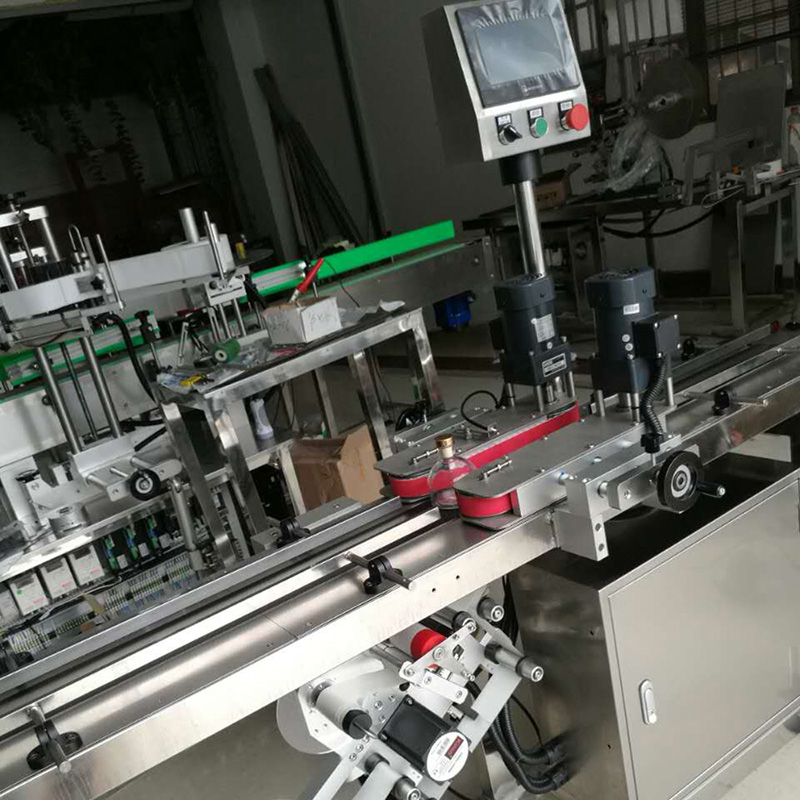

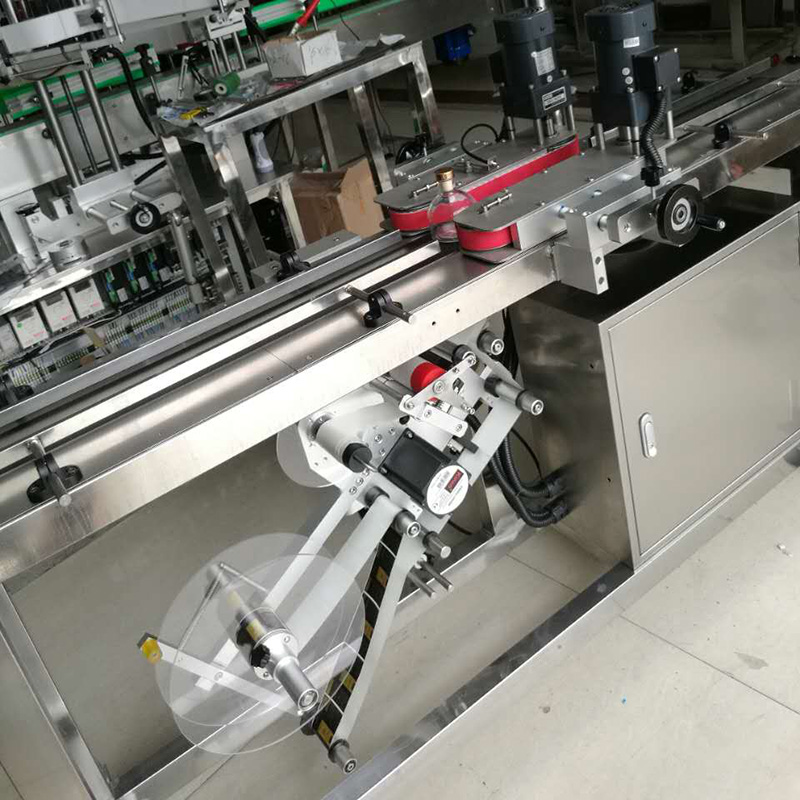

4. Machine has two separate conveyor move product runing, labeling head is under conveyor, label be fed from bottom, product be clamp by side belt conveyor. so label can be sticked on bottom of product.

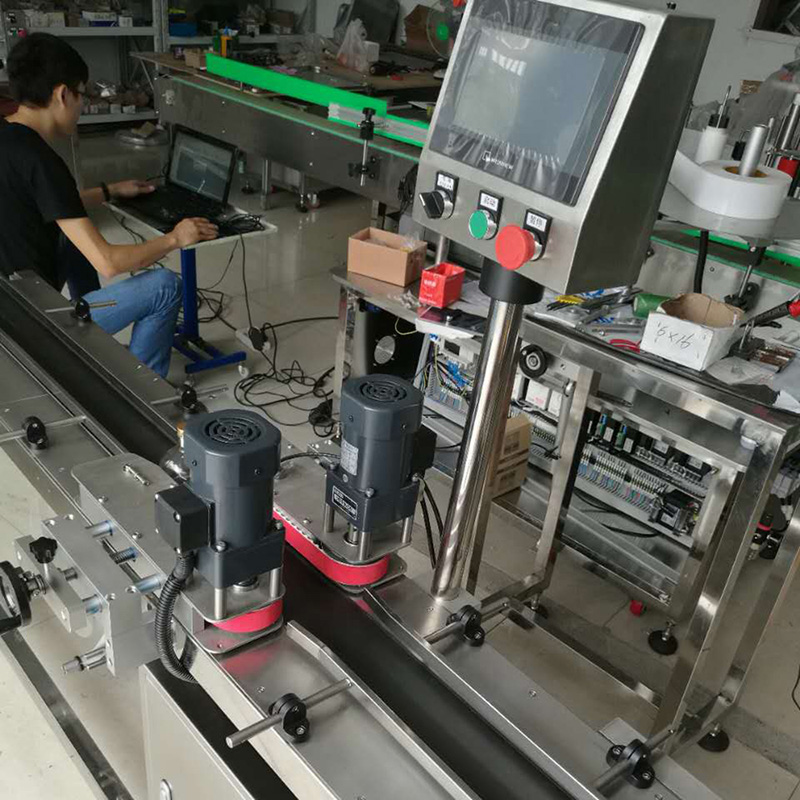

5. PLC combined with human/machine interface digital LCD touch screen controller.
6. Labeling speed is automatically synchronized with conveyor speed to ensure quality labeling.
7. Machine has speed adjustment of labeling feed, conveyor speed, and sensor detect product, labeling precision is very high.
Technical parameter:
| Model | VK-FBL |
| Label width | 5-180mm |
| Label length | 5-200mm |
| Labeling speed | 20-150pcs/min |
| Labeling accuracy | ±1mm |
| Power supply | 400W , 220V,50Hz/60Hz |
| Label reel inner diameter | 76mm |
| Label reel outer diameter | 300mm |
| Machine weight | 200kg |

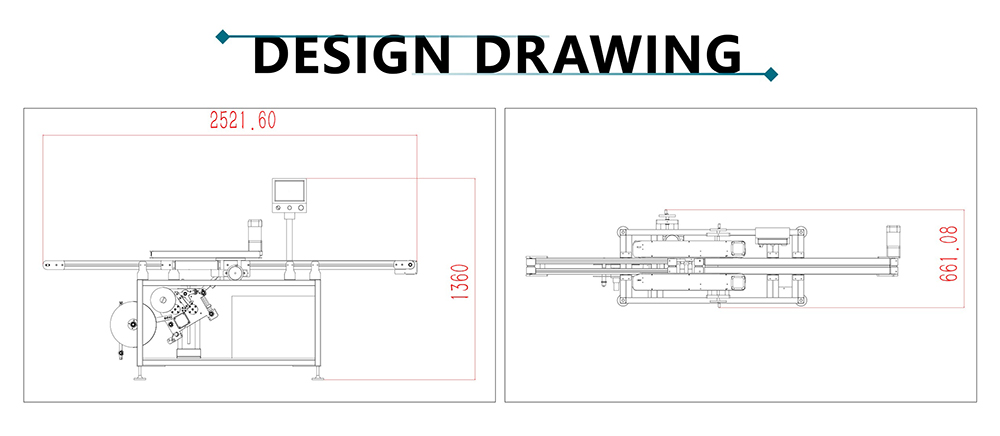

| Machine size(L×W×H) | 2000×700×1600mm |
| Control system | Japanese Mitsubishi PLC |
1. For automatic labeling on bottom flat for the pharmaceuticals, daily chemicals, food & beverages industries.
2. The labeller will automatically detects the label size and set the appropriate labeling parameters, a very useful feature for users with multiple products to label.
3. It is an optimal combination of speed,accuracy,stability, GMP standards, ease of use, and flexibility.
4. Backed by a strong engineering team who is ready to provide custom solutions for the production needs of different customers.
5. PLC combined with human/machine interface digital LCD touch screen controller.
6. Labeling speed is automatically synchronized with conveyor speed to ensure quality labeling.
Main Parts
| Name | Brand |
| PLC | SIEMENS / MITSUBISHI |
| HMI | SIEMENS / WEINVIEW |
| Motor | RAYNEN servo motor / KINCO stepper motor |
| Sensor | SICK / KEYENCE / PANASONIC |
| Touches screen | WEINVIEW (Taiwan) |
| Frequency changer | Schneider(Germany) |
| Stainless steel material | 304SS |
