Function:

1. Machine suitable for any shape product two sides labeling, such as bottle, can, carton, food container, medicine, daily chemical industry and so on.

2. Machine can stick front and back any 1 label, or stick front and back 2 labels together.

3. PLC and HMI control panel with easy operation, many units parameter setting and save.

4. Automatic stop when label breaks down or runs out, Malfunction self-testing and display with alarm.

5. Machine can use alone or connect with filling packing line use.

6. All components are precisely processed by CNC to ensure high quality.

7. All electrical configurations are big international brand, such as Simens, Mitsubishi, WEINVIEW, Danfoss, Schneider, Yaskawa, Keyence, Omron, SMC and so on.

8. High labeling accuracy, long-time using.

Technical Parameter:

Model	VK-DSL
Capacity (PCS/min)	0-180（depend on bottle and label size）
Conveyor running side	from left to right / from right to left
Conveyor speed(meter/min)	≤40
Labeling error	＜ ±0.5mm
The inner diameter of label roll	76 mm
The outer diameter of label roll	360 mm(max)
Suitable for label size	W:5-300mm, L:10-500mm
Suitable size of labeling objects	any size
Power supply（In China）	AC220V 50/60HZ single phase （customized）
Power	1300W
Weight	600 KG

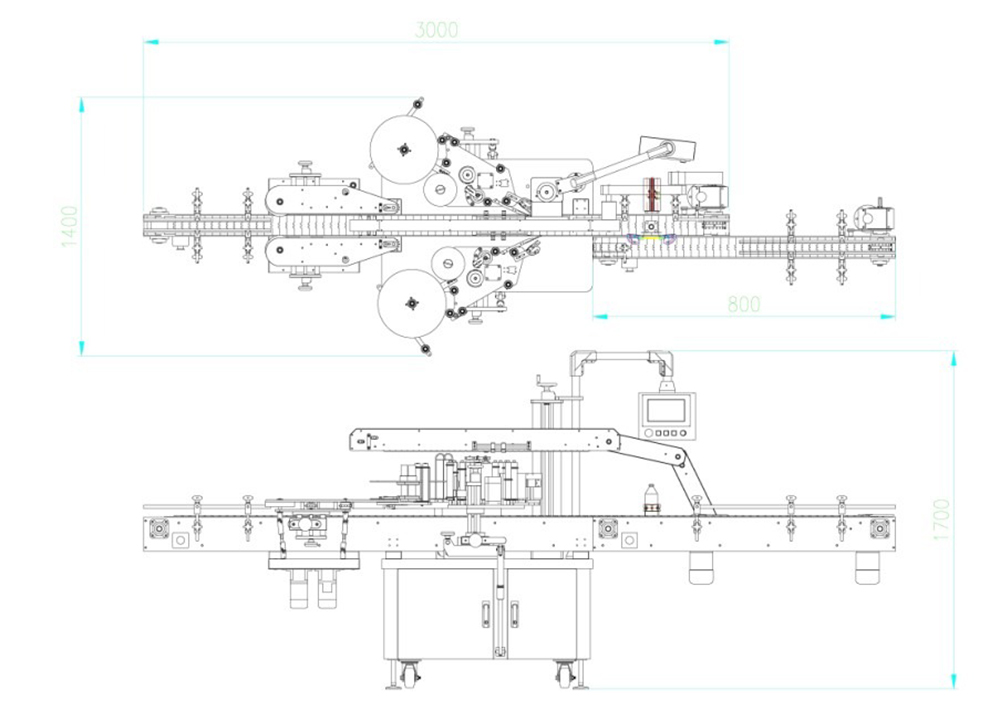

Machine size	2800(L)1300(W)1800(H)mm

Equipment Characteristics:

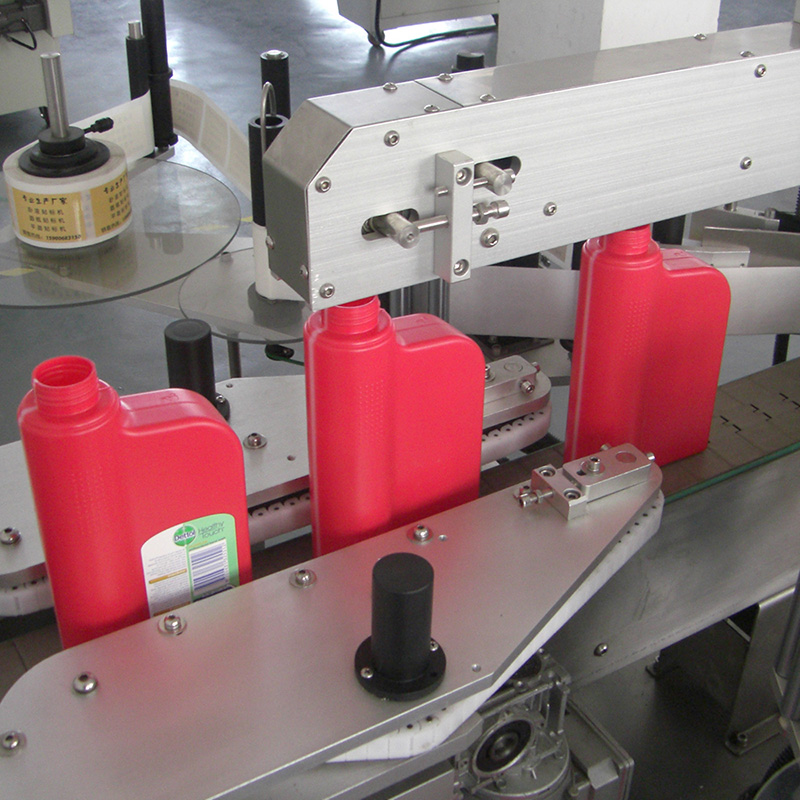

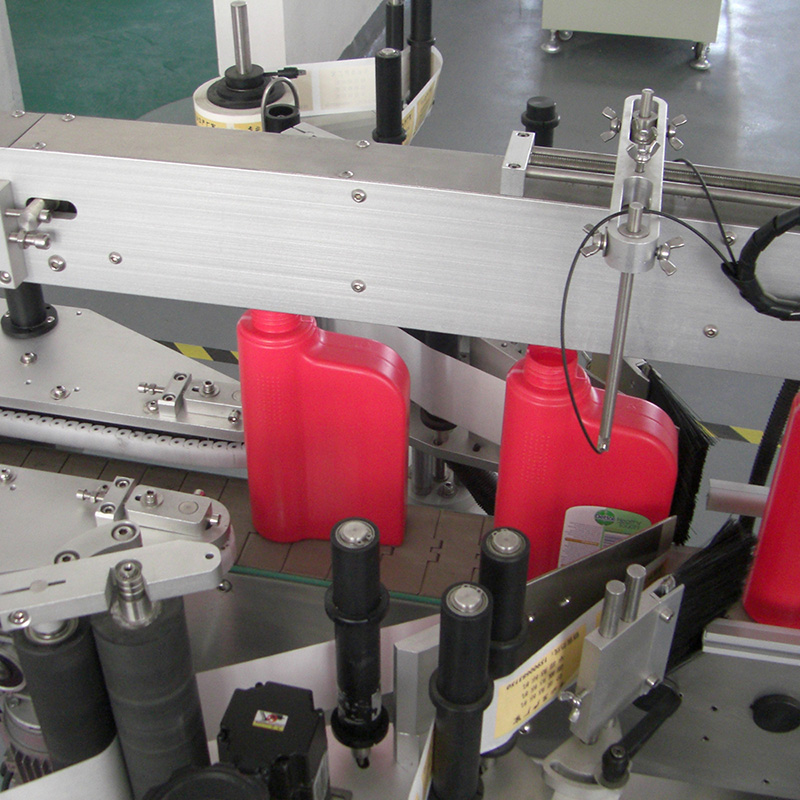

Double-sided labeling: The VK-DSL is designed to handle square bottles and applies labels on both sides simultaneously. This feature significantly improves labeling efficiency and productivity for square bottle applications.

Square bottle compatibility: The machine is specifically designed to accommodate square-shaped bottles, ensuring precise label placement and adherence. It can handle various sizes and dimensions of square bottles, providing versatility for different product requirements.

Optional additional labeling head: The VK-DSL can be customized with an additional labeling head, specifically designed for neck labeling. This optional feature allows for efficient and accurate application of labels on the neck or top part of the bottles, offering a complete labeling solution.

Advanced labeling technology: The VK-DSL utilizes advanced labeling technology, including precise positioning systems and labeling control mechanisms. These features ensure accurate label placement on both sides of the square bottles, resulting in a professional and visually appealing labeling result.

User-friendly operation: The machine features user-friendly controls and an intuitive interface, making it easy to operate and adjust settings. Operators can quickly set labeling parameters, monitor the labeling process, and make necessary adjustments for optimal performance.

High production capacity: The VK-DSL is designed for high-speed labeling operations, allowing for efficient processing of square bottles. Its robust construction and reliable performance enable continuous and uninterrupted production.

The VK-DSL double-sided labeling machine is specifically designed for double-sided labeling on square bottles. With the option to add an additional labeling head for neck labeling, it provides a comprehensive solution for labeling square bottles. Its advanced technology, user-friendly operation, and high production capacity make it an excellent choice for businesses looking to streamline their labeling processes for square-shaped products.
